EvpnRoutingPath Class Reference

#include <agent_path.h>

Inheritance diagram for EvpnRoutingPath:
Inheritance graph
[legend]
Collaboration diagram for EvpnRoutingPath:
Collaboration graph
[legend]

Public Member Functions

 EvpnRoutingPath (const Peer *peer, AgentRoute *rt, VrfEntryConstRef routing_vrf)

virtual ~EvpnRoutingPath ()

const VrfEntry * routing_vrf () const

void set_routing_vrf (const VrfEntry *vrf)

void DeleteEvpnType5Route (Agent *agent, const AgentRoute *rt) const

- Public Member Functions inherited from AgentPath
 AgentPath (const Peer *peer, AgentRoute *rt)

virtual ~AgentPath ()

virtual const NextHop * ComputeNextHop (Agent *agent) const

virtual bool IsLess (const AgentPath &right) const

virtual const AgentPath * UsablePath () const

virtual bool Sync (AgentRoute *sync_route)

void ImportPrevActiveNH (Agent *agent, NextHop *nh)

virtual bool PostChangeNH (Agent *agent, NextHop *nh)

const SecurityGroupList & sg_list () const

const TagList & tag_list () const

const CommunityList & communities () const

const std::string & dest_vn_name () const

const VnListType & dest_vn_list () const

const std::string & origin_vn () const

void GetDestinationVnList (std::vector< std::string > *vn_list) const

uint32_t GetActiveLabel () const

NextHop * nexthop () const

const Peer * peer () const

uint32_t label () const

uint32_t vxlan_id () const

TunnelType::Type tunnel_type () const

uint32_t tunnel_bmap () const

const IpAddress & gw_ip () const

const std::string & vrf_name () const

bool force_policy () const

const bool unresolved () const

const Ip4Address & tunnel_dest () const

bool is_subnet_discard () const

const IpAddress subnet_service_ip () const

TunnelType::Type GetTunnelType () const

void set_nexthop (NextHop *nh)

void set_vxlan_id (uint32_t vxlan_id)

void set_label (uint32_t label)

void set_dest_vn_list (const VnListType &dest_vn_list)

void set_origin_vn (const std::string &origin_vn)

void set_unresolved (bool unresolved)

void set_gw_ip (const IpAddress &addr)

void set_force_policy (bool force_policy)

void set_vrf_name (const std::string &vrf_name)

void set_tunnel_bmap (TunnelType::TypeBmap bmap)

void set_tunnel_type (TunnelType::Type type)

void set_sg_list (const SecurityGroupList &sg)

void set_tag_list (const TagList &tag)

void set_communities (const CommunityList &communities)

void clear_sg_list ()

void clear_tag_list ()

void clear_communities ()

void set_tunnel_dest (const Ip4Address &tunnel_dest)

void set_is_subnet_discard (bool discard)

void set_subnet_service_ip (const IpAddress &ip)

void set_copy_local_path (bool copy_local_path)

void set_local_ecmp_mpls_label (MplsLabel *mpls)

bool dest_vn_match (const std::string &vn) const

const MplsLabel * local_ecmp_mpls_label () const

void ClearDependantRoute ()

void ResetDependantRoute (AgentRoute *rt)

const AgentRoute * dependant_rt () const

bool ChangeNH (Agent *agent, NextHop *nh)

void SyncRoute (bool sync)

bool RouteNeedsSync ()

uint32_t GetTunnelBmap () const

bool UpdateNHPolicy (Agent *agent)

bool UpdateTunnelType (Agent *agent, const AgentRoute *sync_route)

bool ResolveGwNextHops (Agent *agent, const AgentRoute *sync_route)

bool RebakeAllTunnelNHinCompositeNH (const AgentRoute *sync_route)

virtual std::string ToString () const

void SetSandeshData (PathSandeshData &data) const

uint32_t preference () const

uint32_t sequence () const

const PathPreference & path_preference () const

PathPreference & path_preference_non_const ()

void set_path_preference (const PathPreference &rp)

void set_composite_nh_key (CompositeNHKey *key)

CompositeNHKey * composite_nh_key ()

bool ReorderCompositeNH (Agent *agent, CompositeNHKey *nh, bool &comp_nh_policy, const AgentPath *local_path)

bool ChangeCompositeNH (Agent *agent, CompositeNHKey *nh)

const Ip4Address * NexthopIp (Agent *agent) const

MacAddress arp_mac () const

void set_arp_mac (const MacAddress &mac)

const Interface * arp_interface () const

void set_arp_interface (const Interface *intf)

bool arp_valid () const

void set_arp_valid (bool valid)

bool ecmp_suppressed () const

void set_ecmp_suppressed (bool suppresed)

bool CopyArpData ()

bool CopyNdpData ()

const IpAddress & GetFixedIp () const

const EcmpLoadBalance & ecmp_load_balance () const

void set_ecmp_load_balance (const EcmpLoadBalance &ecmp_load_balance)

bool is_local () const

void set_is_local (bool is_local)

bool is_health_check_service () const

void set_is_health_check_service (bool val)

bool etree_leaf () const

void set_etree_leaf (bool leaf)

bool layer2_control_word () const

void set_layer2_control_word (bool layer2_control_word)

void set_native_vrf_id (uint32_t vrf_id)

uint32_t native_vrf_id () const

void UpdateEcmpHashFields (const Agent *agent, const EcmpLoadBalance &ecmp_load_balance, DBRequest &nh_req)

uint64_t peer_sequence_number () const

void set_peer_sequence_number (uint64_t sequence_number)

bool ResyncControlWord (const AgentRoute *rt)

bool inactive () const

void set_inactive (bool inactive)

void ResetEcmpHashFields ()

void CopyLocalPath (CompositeNHKey *composite_nh_key, const AgentPath *local_path)

AgentRoute * GetParentRoute ()

void ResetEcmpMemberList (AgentPathEcmpComponentPtrList list)

AgentRouteTable * GetDependentTable () const

void SetDependentTable (AgentRouteTable *table)

void SetDynamicLearntRouteFlag (bool is_learnt_route)

bool IsDynamicLearntRoute ()

- Public Member Functions inherited from Path
 Path ()

virtual ~Path ()

const uint64_t time_stamp_usecs () const

void set_time_stamp_usecs (uint64_t time_stamp_usecs)


Private Member Functions

 DISALLOW_COPY_AND_ASSIGN (EvpnRoutingPath)


Private Attributes

VrfEntryConstRef routing_vrf_

uint32_t l3_vrf_vxlan_id_


Detailed Description

Definition at line 1225 of file agent_path.h.

Constructor & Destructor Documentation

EvpnRoutingPath::EvpnRoutingPath ( const Peer *  peer,
AgentRoute *  rt,
VrfEntryConstRef  routing_vrf
)

Definition at line 2048 of file agent_path.cc.

EvpnRoutingPath::~EvpnRoutingPath ( )
virtual

Definition at line 2055 of file agent_path.cc.

Member Function Documentation

void EvpnRoutingPath::DeleteEvpnType5Route ( Agent *  agent,
const AgentRoute *  rt
) const

Definition at line 2066 of file agent_path.cc.

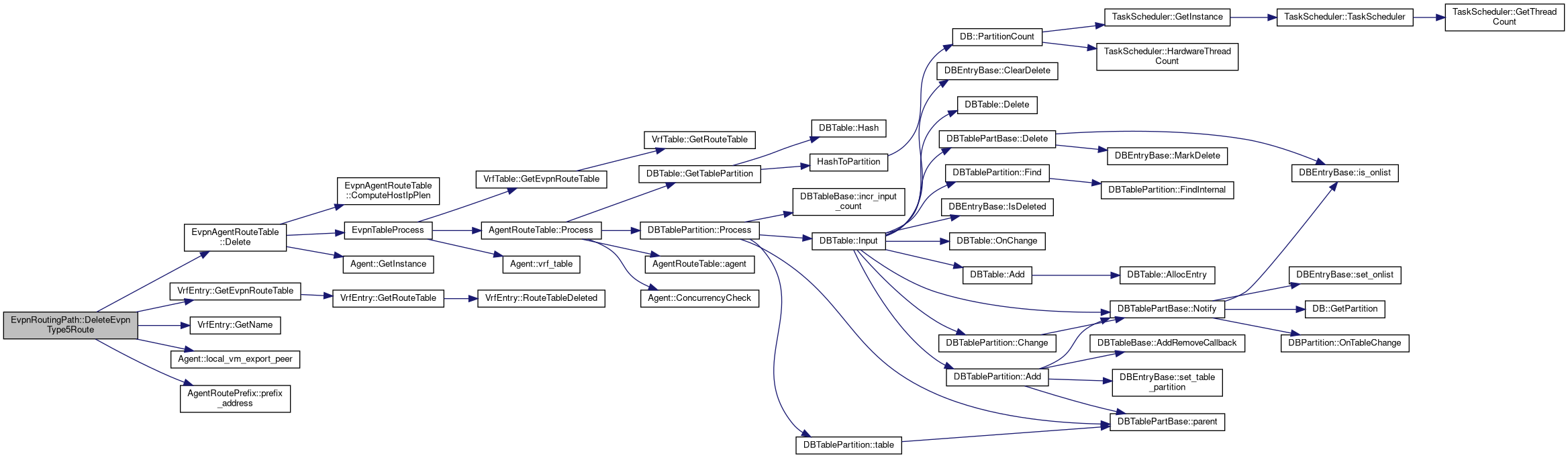

Here is the call graph for this function:

EvpnRoutingPath::DISALLOW_COPY_AND_ASSIGN ( EvpnRoutingPath  )
private
const VrfEntry * EvpnRoutingPath::routing_vrf ( ) const

Definition at line 2058 of file agent_path.cc.

void EvpnRoutingPath::set_routing_vrf ( const VrfEntry *  vrf)

Definition at line 2062 of file agent_path.cc.

Here is the call graph for this function:

Member Data Documentation

uint32_t EvpnRoutingPath::l3_vrf_vxlan_id_
private

Definition at line 1237 of file agent_path.h.

VrfEntryConstRef EvpnRoutingPath::routing_vrf_
private

Definition at line 1236 of file agent_path.h.

The documentation for this class was generated from the following files:
