#include <nexthop.h>

Inheritance diagram for CompositeNHKey:

[legend]

Collaboration diagram for CompositeNHKey:

[legend]

Public Member Functions
	CompositeNHKey (COMPOSITETYPE type, bool policy, const ComponentNHKeyList &component_nh_key_list, const std::string &vrf_name)

	CompositeNHKey (COMPOSITETYPE type, bool validate_mcast_src, bool policy, const ComponentNHKeyList &component_nh_key_list, const std::string &vrf_name)

virtual CompositeNHKey *	Clone () const

virtual	~CompositeNHKey ()

virtual NextHop *	AllocEntry () const

virtual bool	NextHopKeyIsLess (const NextHopKey &rhs) const

ComponentNHKeyList::const_iterator	begin () const

ComponentNHKeyList::const_iterator	end () const

const ComponentNHKeyList &	component_nh_key_list () const

bool	Reorder (Agent agent, uint32_t label, const NextHop nh)

void	CreateTunnelNH (Agent *agent)

void	CreateTunnelNHReq (Agent *agent)

void	ChangeTunnelType (TunnelType::Type tunnel_type)

COMPOSITETYPE	composite_nh_type () const

bool	validate_mcast_src () const

void	ReplaceLocalNexthop (const ComponentNHKeyList &new_comp_nh)

Public Member Functions inherited from NextHopKey
	NextHopKey (NextHop::Type type, bool policy)

virtual	~NextHopKey ()

bool	IsEqual (const NextHopKey &rhs) const

void	SetPolicy (bool policy)

NextHop::Type	GetType () const

bool	GetPolicy () const

bool	IsLess (const NextHopKey &rhs) const

Public Member Functions inherited from AgentKey
	AgentKey ()

	AgentKey (DBSubOperation sub_op)

virtual	~AgentKey ()

Public Member Functions inherited from DBRequestKey
virtual	~DBRequestKey ()

Private Member Functions
bool	ExpandLocalCompositeNH (Agent *agent)

void	insert (ComponentNHKeyPtr nh_key)

void	erase (ComponentNHKeyPtr nh_key)

bool	find (ComponentNHKeyPtr nh_key)

	DISALLOW_COPY_AND_ASSIGN (CompositeNHKey)

Private Attributes
COMPOSITETYPE	composite_nh_type_

bool	validate_mcast_src_

ComponentNHKeyList	component_nh_key_list_

VrfKey	vrf_key_

Friends
class	CompositeNH

Additional Inherited Members
Public Types inherited from AgentKey
enum	DBSubOperation { ADD_DEL_CHANGE , RESYNC }

Public Attributes inherited from AgentKey
uint8_t	sub_op_

Protected Attributes inherited from NextHopKey
NextHop::Type	type_

bool	policy_

Detailed Description

Definition at line 1684 of file nexthop.h.

Constructor & Destructor Documentation

◆ CompositeNHKey() [1/2]

CompositeNHKey::CompositeNHKey	(	COMPOSITETYPE	type,
		bool	policy,
		const ComponentNHKeyList &	component_nh_key_list,
		const std::string &	vrf_name
	)

inline

Definition at line 1686 of file nexthop.h.

◆ CompositeNHKey() [2/2]

CompositeNHKey::CompositeNHKey	(	COMPOSITETYPE	type,
		bool	validate_mcast_src,
		bool	policy,
		const ComponentNHKeyList &	component_nh_key_list,
		const std::string &	vrf_name
	)

inline

Definition at line 1696 of file nexthop.h.

◆ ~CompositeNHKey()

virtual CompositeNHKey::~CompositeNHKey ( )

inlinevirtual

Definition at line 1706 of file nexthop.h.

Member Function Documentation

◆ AllocEntry()

NextHop * CompositeNHKey::AllocEntry ( ) const

virtual

Implements NextHopKey.

Definition at line 1907 of file nexthop.cc.

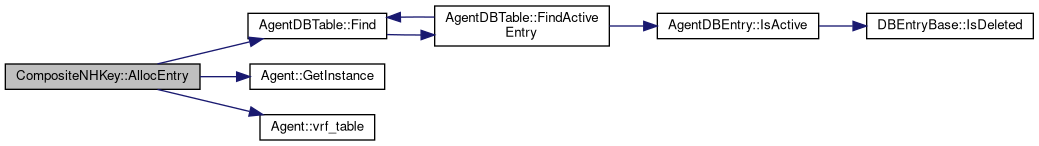

Here is the call graph for this function:

◆ begin()

ComponentNHKeyList::const_iterator CompositeNHKey::begin ( ) const

inline

Definition at line 1711 of file nexthop.h.

◆ ChangeTunnelType()

void CompositeNHKey::ChangeTunnelType ( TunnelType::Type tunnel_type )

Definition at line 1914 of file nexthop.cc.

Here is the call graph for this function:

◆ Clone()

CompositeNHKey * CompositeNHKey::Clone ( ) const

virtual

Implements NextHopKey.

Definition at line 2398 of file nexthop.cc.

Here is the call graph for this function:

◆ component_nh_key_list()

const ComponentNHKeyList& CompositeNHKey::component_nh_key_list ( ) const

inline

Definition at line 1719 of file nexthop.h.

◆ composite_nh_type()

COMPOSITETYPE CompositeNHKey::composite_nh_type ( ) const

inline

Definition at line 1726 of file nexthop.h.

◆ CreateTunnelNH()

void CompositeNHKey::CreateTunnelNH ( Agent * agent )

Definition at line 2368 of file nexthop.cc.

Here is the call graph for this function:

◆ CreateTunnelNHReq()

void CompositeNHKey::CreateTunnelNHReq ( Agent * agent )

Definition at line 2383 of file nexthop.cc.

Here is the call graph for this function:

◆ DISALLOW_COPY_AND_ASSIGN()

CompositeNHKey::DISALLOW_COPY_AND_ASSIGN ( CompositeNHKey )

private

◆ end()

ComponentNHKeyList::const_iterator CompositeNHKey::end ( ) const

inline

Definition at line 1715 of file nexthop.h.

◆ erase()

void CompositeNHKey::erase ( ComponentNHKeyPtr nh_key )

private

Definition at line 2438 of file nexthop.cc.

◆ ExpandLocalCompositeNH()

bool CompositeNHKey::ExpandLocalCompositeNH ( Agent * agent )

private

Definition at line 2652 of file nexthop.cc.

Here is the call graph for this function:

◆ find()

bool CompositeNHKey::find ( ComponentNHKeyPtr nh_key )

private

Definition at line 2403 of file nexthop.cc.

◆ insert()

void CompositeNHKey::insert ( ComponentNHKeyPtr nh_key )

private

Definition at line 2416 of file nexthop.cc.

Here is the call graph for this function:

◆ NextHopKeyIsLess()

bool CompositeNHKey::NextHopKeyIsLess ( const NextHopKey & rhs ) const

virtual

Reimplemented from NextHopKey.

Definition at line 2596 of file nexthop.cc.

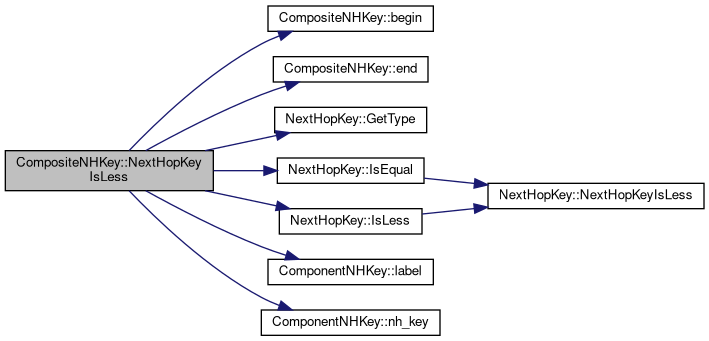

Here is the call graph for this function:

◆ Reorder()

bool CompositeNHKey::Reorder	(	Agent *	agent,
		uint32_t	label,
		const NextHop *	nh
	)

Definition at line 2740 of file nexthop.cc.

Here is the call graph for this function:

◆ ReplaceLocalNexthop()

void CompositeNHKey::ReplaceLocalNexthop ( const ComponentNHKeyList & new_comp_nh )

Definition at line 1774 of file nexthop.cc.

◆ validate_mcast_src()

bool CompositeNHKey::validate_mcast_src ( ) const

inline

Definition at line 1727 of file nexthop.h.

Friends And Related Function Documentation

◆ CompositeNH

friend class CompositeNH

friend

Definition at line 1731 of file nexthop.h.

Member Data Documentation

◆ component_nh_key_list_

ComponentNHKeyList CompositeNHKey::component_nh_key_list_

private

Definition at line 1739 of file nexthop.h.

◆ composite_nh_type_

COMPOSITETYPE CompositeNHKey::composite_nh_type_

private

Definition at line 1737 of file nexthop.h.

◆ validate_mcast_src_

bool CompositeNHKey::validate_mcast_src_

private

Definition at line 1738 of file nexthop.h.

◆ vrf_key_

VrfKey CompositeNHKey::vrf_key_

private

Definition at line 1740 of file nexthop.h.

The documentation for this class was generated from the following files:
