Base class for all Route entries in agent. More...

#include <agent_route.h>

Inheritance diagram for AgentRoute:

Collaboration diagram for AgentRoute:

Public Types
enum	Trace { ADD, DEL, ADD_PATH, DELETE_PATH, CHANGE_PATH, STALE_PATH }

typedef DependencyList < AgentRoute, AgentRoute >	RouteDependencyList

typedef DependencyList < NextHop, AgentRoute >	TunnelNhDependencyList

Public Types inherited from Route
typedef boost::intrusive::member_hook < Path, boost::intrusive::list_member_hook <>,&Path::node_ >	PathListMember

typedef boost::intrusive::list < Path, PathListMember >	PathList

typedef bool(*	Compare )(const Path &path1, const Path &path2)

Public Types inherited from DBEntryBase
typedef DBTableBase::ListenerId	ListenerId

typedef std::unique_ptr < DBRequestKey >	KeyPtr

Public Member Functions
	AgentRoute (VrfEntry *vrf, bool is_multicast, const std::string &intf_route_type="interface")

virtual	~AgentRoute ()

virtual bool	IsLess (const DBEntry &rhs) const

virtual KeyPtr	GetDBRequestKey () const =0

virtual void	SetKey (const DBRequestKey *key)=0

virtual int	CompareTo (const Route &rhs) const =0

virtual Agent::RouteTableType	GetTableType () const =0

virtual bool	DBEntrySandesh (Sandesh *sresp, bool stale) const =0

virtual std::string	ToString () const =0

virtual const std::string	GetAddressString () const =0

virtual const std::string	GetSourceAddressString () const =0

virtual bool	ReComputePathDeletion (AgentPath *path)

virtual bool	ReComputePathAdd (AgentPath *path)

virtual uint32_t	GetActiveLabel () const

virtual AgentPath *	FindPathUsingKeyData (const AgentRouteKey key, const AgentRouteData data) const

virtual AgentPath *	FindPath (const Peer *peer) const

virtual bool	RecomputeRoutePath (Agent agent, DBTablePartition part, AgentPath path, AgentRouteData data)

virtual void	UpdateDerivedRoutes (AgentRouteTable table, const AgentPath path, bool active_path_changed)

virtual void	DeleteDerivedRoutes (AgentRouteTable *table)

bool	is_multicast () const

VrfEntry *	vrf () const

uint32_t	vrf_id () const

const std::string &	intf_route_type () const

void	set_intf_route_type (const std::string &intf_route_type)

AgentPath *	FindLocalPath () const

AgentPath *	FindLocalVmPortPath () const

const AgentPath *	FindIntfOrCompLocalVmPortPath () const
	Finds path to an interface or a composite of interfaces and returns it. The priority is given to composite: if both an interface and a composite are present, then the composite path is returned. More...

AgentPath *	GetLocalVmPortPath () const

const AgentPath *	GetActivePath () const

const NextHop *	GetActiveNextHop () const

const std::string &	dest_vn_name () const

bool	IsRPFInvalid () const

void	EnqueueRouteResync () const

void	ResyncTunnelNextHop ()

bool	HasUnresolvedPath ()

bool	Sync (void)

void	UpdateDependantRoutes ()

bool	IsDependantRouteEmpty ()

bool	IsTunnelNHListEmpty ()

void	FillTrace (RouteInfo &route, Trace event, const AgentPath *path) const

bool	WaitForTraffic () const

bool	DeleteAllBgpPath (DBTablePartBase part, AgentRouteTable table)

void	DeletePathFromPeer (DBTablePartBase part, AgentRouteTable table, AgentPath *path)

bool	SubOpResyncInput (VrfEntry vrf, AgentRouteTable table, AgentPath *path_ptr, AgentRouteKey key, AgentRouteData *data)

bool	SubOpAddChangeInput (VrfEntry vrf, AgentRouteTable table, AgentPath *path_ptr, AgentRouteKey key, AgentRouteData *data, bool route_added)

void	DeleteInput (DBTablePartition part, AgentRouteTable table, AgentRouteKey key, AgentRouteData data)

void	AddUnresolvedRouteToTable (AgentRouteTable *table)

void	RemoveUnresolvedRouteFromTable (AgentRouteTable *table)

virtual uint8_t	prefix_length () const
	Returns the length of a stored prefix address. More...

Public Member Functions inherited from Route
	Route ()

virtual	~Route ()

bool	operator< (const Route &rhs) const

const Path *	front () const

void	insert (const Path *path)

void	remove (const Path *path)

void	Sort (Compare compare, const Path *prev_front)

const PathList &	GetPathList () const

PathList &	GetPathList ()

Public Member Functions inherited from DBEntry
	DBEntry ()

virtual	~DBEntry ()

bool	operator< (const DBEntry &rhs) const

Public Member Functions inherited from DBEntryBase
	DBEntryBase ()

virtual	~DBEntryBase ()

virtual bool	IsMoreSpecific (const std::string &match) const

virtual bool	IsLessSpecific (const std::string &match) const

void	SetState (DBTableBase tbl_base, ListenerId listener, DBState state)

void	ClearState (DBTableBase *tbl_base, ListenerId listener)

DBState *	GetState (DBTableBase *tbl_base, ListenerId listener) const

const DBState *	GetState (const DBTableBase *tbl_base, ListenerId listener) const

bool	is_state_empty (DBTablePartBase *tpart)

bool	is_state_empty_unlocked (DBTablePartBase *tpart)

void	Delete ()

void	MarkDelete ()

void	ClearDelete ()

bool	IsDeleted () const

void	set_onlist ()

void	clear_onlist ()

bool	is_onlist ()

void	SetOnRemoveQ ()

bool	IsOnRemoveQ ()

void	ClearOnRemoveQ ()

void	set_last_change_at (uint64_t time)

void	set_last_change_at_to_now ()

const uint64_t	last_change_at () const

const std::string	last_change_at_str () const

void	set_last_update_at (uint64_t time)

void	set_last_update_at_to_now ()

const uint64_t	last_update_at () const

DBTablePartBase *	get_table_partition () const

void	set_table_partition (DBTablePartBase *tpart)

DBTableBase *	get_table () const

void	Notify ()

Protected Member Functions
void	SetVrf (VrfEntry *vrf)

void	RemovePath (AgentPath *path)

void	InsertPath (const AgentPath *path)

virtual void	HandleMulticastLabel (const Agent agent, AgentPath path, const AgentPath local_peer_path, const AgentPath local_vm_peer_path, bool del, uint32_t *evpn_label)

virtual bool	ReComputeMulticastPaths (AgentPath *path, bool del)

virtual void	HandleDeviceMastershipUpdate (AgentPath *path, bool del)

virtual Composite::Type	GetMulticastCompType ()

const AgentRouteTable *	GetDependentRouteTable (void) const

virtual bool	ValidateMcastSrc () const

Private Member Functions
bool	ProcessPath (Agent agent, DBTablePartition part, AgentPath path, AgentRouteData data)

	DEPENDENCY_LIST (AgentRoute, AgentRoute, dependant_routes_)

	DEPENDENCY_LIST (NextHop, AgentRoute, tunnel_nh_list_)

	DISALLOW_COPY_AND_ASSIGN (AgentRoute)

Private Attributes
VrfEntry *	vrf_

bool	is_multicast_

std::string	intf_route_type_

AgentRouteTable *	dependent_route_table_

Friends
class	AgentRouteTable

class	EcmpData

Additional Inherited Members
Public Attributes inherited from DBEntryBase
boost::intrusive::list_member_hook	chg_list_

Detailed Description

Base class for all Route entries in agent.

Definition at line 224 of file agent_route.h.

Member Typedef Documentation

typedef DependencyList<AgentRoute, AgentRoute> AgentRoute::RouteDependencyList

Definition at line 235 of file agent_route.h.

typedef DependencyList<NextHop, AgentRoute> AgentRoute::TunnelNhDependencyList

Definition at line 236 of file agent_route.h.

Member Enumeration Documentation

enum AgentRoute::Trace

Enumerator
ADD
DEL
ADD_PATH
DELETE_PATH
CHANGE_PATH
STALE_PATH

Definition at line 226 of file agent_route.h.

Constructor & Destructor Documentation

AgentRoute::AgentRoute	(	VrfEntry *	vrf,
		bool	is_multicast,
		const std::string &	intf_route_type = `"interface"`
	)

inline

Definition at line 238 of file agent_route.h.

virtual AgentRoute::~AgentRoute ( )

inlinevirtual

Definition at line 242 of file agent_route.h.

Member Function Documentation

void AgentRoute::AddUnresolvedRouteToTable ( AgentRouteTable * table )

Definition at line 352 of file agent_route.cc.

Here is the call graph for this function:

virtual int AgentRoute::CompareTo ( const Route & rhs ) const

pure virtual

Implements Route.

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

virtual bool AgentRoute::DBEntrySandesh	(	Sandesh *	sresp,
		bool	stale
	)		const

pure virtual

Implemented in EvpnRouteEntry, BridgeRouteEntry, Inet4MulticastRouteEntry, and InetUnicastRouteEntry.

bool AgentRoute::DeleteAllBgpPath	(	DBTablePartBase *	part,
		AgentRouteTable *	table
	)

Definition at line 614 of file agent_route.cc.

Here is the call graph for this function:

virtual void AgentRoute::DeleteDerivedRoutes ( AgentRouteTable * table )

inlinevirtual

Reimplemented in EvpnRouteEntry.

Definition at line 272 of file agent_route.h.

void AgentRoute::DeleteInput	(	DBTablePartition *	part,
		AgentRouteTable *	table,
		AgentRouteKey *	key,
		AgentRouteData *	data
	)

Definition at line 555 of file agent_route.cc.

Here is the call graph for this function:

void AgentRoute::DeletePathFromPeer	(	DBTablePartBase *	part,
		AgentRouteTable *	table,
		AgentPath *	path
	)

Definition at line 654 of file agent_route.cc.

Here is the call graph for this function:

AgentRoute::DEPENDENCY_LIST	(	AgentRoute	,
		AgentRoute	,
		dependant_routes_
	)

private

AgentRoute::DEPENDENCY_LIST	(	NextHop	,
		AgentRoute	,
		tunnel_nh_list_
	)

private

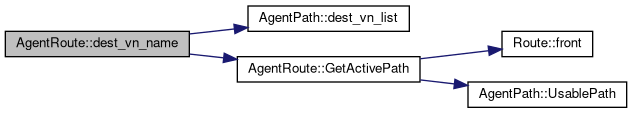

const string & AgentRoute::dest_vn_name ( ) const

Definition at line 1026 of file agent_route.cc.

Here is the call graph for this function:

AgentRoute::DISALLOW_COPY_AND_ASSIGN ( AgentRoute )

private

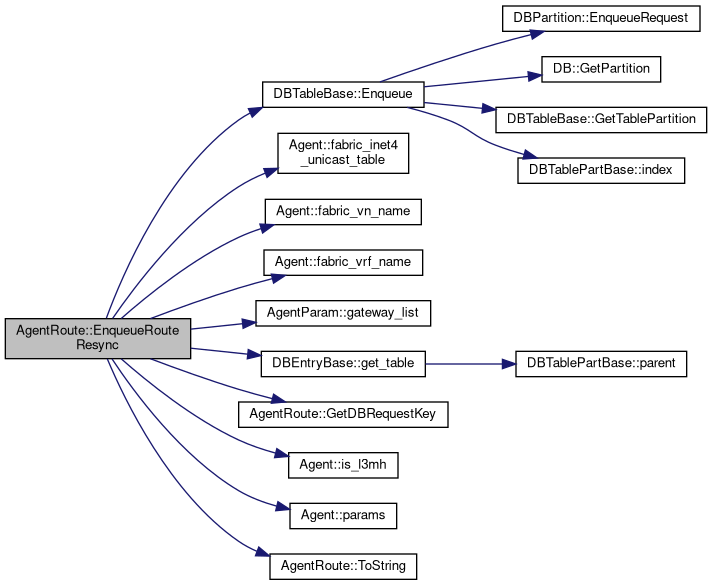

void AgentRoute::EnqueueRouteResync ( void ) const

Definition at line 913 of file agent_route.cc.

Here is the call graph for this function:

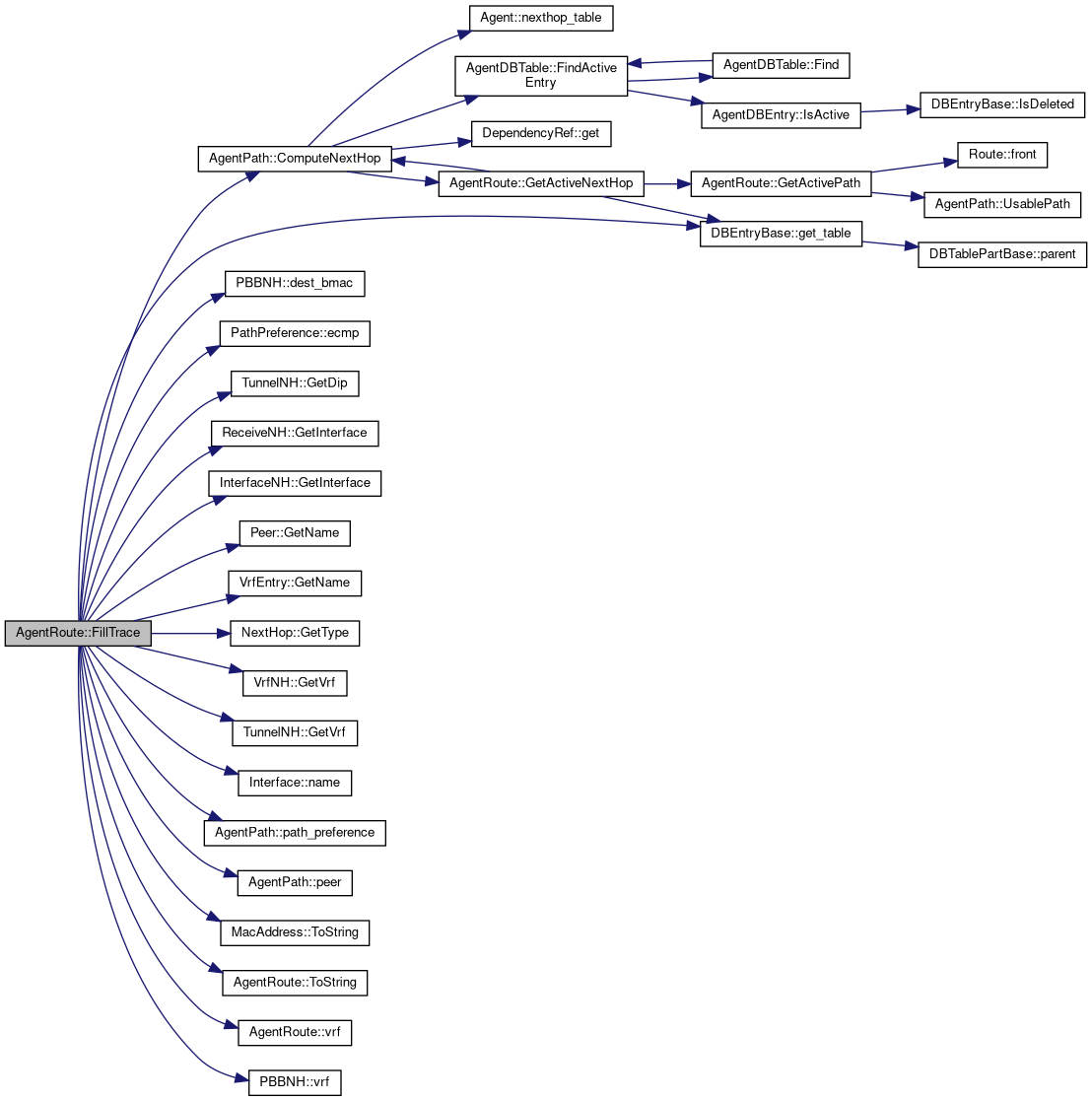

void AgentRoute::FillTrace	(	RouteInfo &	route,
		Trace	event,
		const AgentPath *	path
	)		const

Definition at line 1583 of file agent_path.cc.

Here is the call graph for this function:

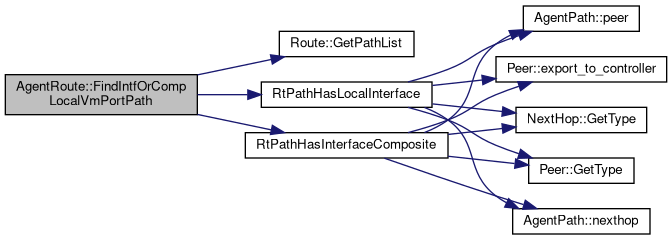

const AgentPath * AgentRoute::FindIntfOrCompLocalVmPortPath ( ) const

Finds path to an interface or a composite of interfaces and returns it. The priority is given to composite: if both an interface and a composite are present, then the composite path is returned.

Returns: the pointer to AgentPath if a proper path found or NULL

Definition at line 816 of file agent_route.cc.

Here is the call graph for this function:

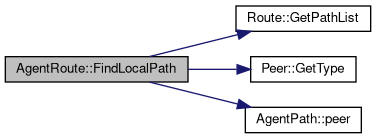

AgentPath * AgentRoute::FindLocalPath ( ) const

Definition at line 727 of file agent_route.cc.

Here is the call graph for this function:

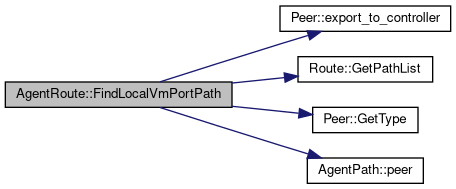

AgentPath * AgentRoute::FindLocalVmPortPath ( ) const

Definition at line 742 of file agent_route.cc.

Here is the call graph for this function:

AgentPath * AgentRoute::FindPath ( const Peer * peer ) const

virtual

Definition at line 864 of file agent_route.cc.

Here is the call graph for this function:

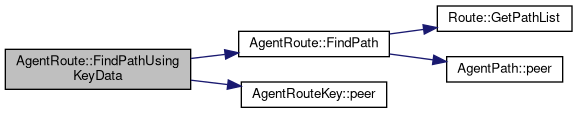

AgentPath * AgentRoute::FindPathUsingKeyData	(	const AgentRouteKey *	key,
		const AgentRouteData *	data
	)		const

virtual

Reimplemented in InetUnicastRouteEntry, and BridgeRouteEntry.

Definition at line 859 of file agent_route.cc.

Here is the call graph for this function:

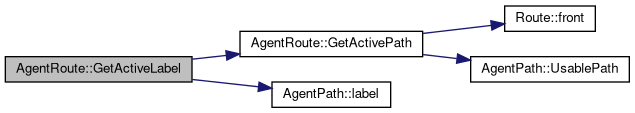

uint32_t AgentRoute::GetActiveLabel ( ) const

virtual

Reimplemented in EvpnRouteEntry, and BridgeRouteEntry.

Definition at line 890 of file agent_route.cc.

Here is the call graph for this function:

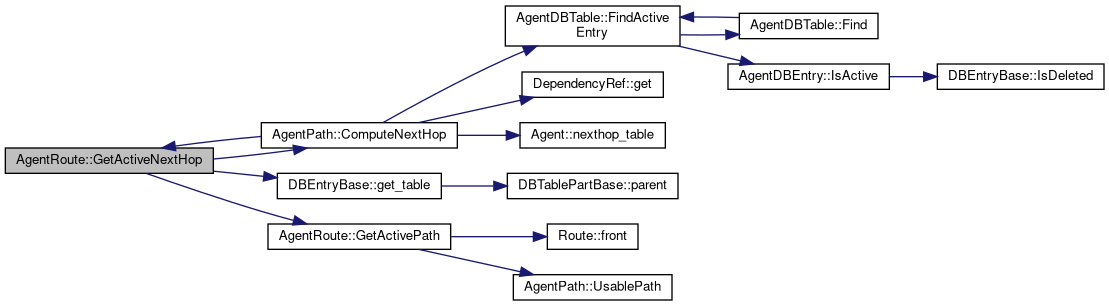

const NextHop * AgentRoute::GetActiveNextHop ( ) const

Definition at line 881 of file agent_route.cc.

Here is the call graph for this function:

const AgentPath * AgentRoute::GetActivePath ( ) const

Definition at line 876 of file agent_route.cc.

Here is the call graph for this function:

virtual const std::string AgentRoute::GetAddressString ( ) const

pure virtual

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

virtual KeyPtr AgentRoute::GetDBRequestKey ( ) const

pure virtual

Implements DBEntryBase.

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

const AgentRouteTable* AgentRoute::GetDependentRouteTable ( void ) const

inlineprotected

Definition at line 336 of file agent_route.h.

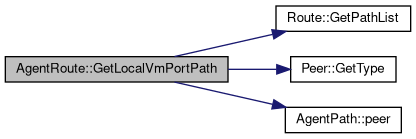

AgentPath * AgentRoute::GetLocalVmPortPath ( ) const

Definition at line 844 of file agent_route.cc.

Here is the call graph for this function:

virtual Composite::Type AgentRoute::GetMulticastCompType ( )

inlineprotectedvirtual

Reimplemented in Inet4MulticastRouteEntry.

Definition at line 335 of file agent_route.h.

virtual const std::string AgentRoute::GetSourceAddressString ( ) const

pure virtual

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

virtual Agent::RouteTableType AgentRoute::GetTableType ( ) const

pure virtual

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

void AgentRoute::HandleDeviceMastershipUpdate	(	AgentPath *	path,
		bool	del
	)

protectedvirtual

Definition at line 1053 of file agent_route.cc.

Here is the call graph for this function:

void AgentRoute::HandleMulticastLabel	(	const Agent *	agent,
		AgentPath *	path,
		const AgentPath *	local_peer_path,
		const AgentPath *	local_vm_peer_path,
		bool	del,
		uint32_t *	evpn_label
	)

protectedvirtual

Definition at line 1061 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::HasUnresolvedPath ( void )

Definition at line 943 of file agent_route.cc.

Here is the call graph for this function:

void AgentRoute::InsertPath ( const AgentPath * path )

protected

Definition at line 600 of file agent_route.cc.

Here is the call graph for this function:

const std::string& AgentRoute::intf_route_type ( ) const

inline

Definition at line 277 of file agent_route.h.

bool AgentRoute::is_multicast ( ) const

inline

Definition at line 274 of file agent_route.h.

bool AgentRoute::IsDependantRouteEmpty ( )

inline

Definition at line 303 of file agent_route.h.

bool AgentRoute::IsLess ( const DBEntry & rhs ) const

virtual

Implements DBEntry.

Definition at line 1035 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::IsRPFInvalid ( ) const

Definition at line 1044 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::IsTunnelNHListEmpty ( )

inline

Definition at line 304 of file agent_route.h.

virtual uint8_t AgentRoute::prefix_length ( ) const

inlinevirtual

Returns the length of a stored prefix address.

Reimplemented in EvpnRouteEntry, BridgeRouteEntry, and InetUnicastRouteEntry.

Definition at line 323 of file agent_route.h.

bool AgentRoute::ProcessPath	(	Agent *	agent,
		DBTablePartition *	part,
		AgentPath *	path,
		AgentRouteData *	data
	)

private

Definition at line 985 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::ReComputeMulticastPaths	(	AgentPath *	path,
		bool	del
	)

protectedvirtual

Definition at line 1160 of file agent_route.cc.

Here is the call graph for this function:

virtual bool AgentRoute::ReComputePathAdd ( AgentPath * path )

inlinevirtual

Reimplemented in BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

Definition at line 257 of file agent_route.h.

virtual bool AgentRoute::ReComputePathDeletion ( AgentPath * path )

inlinevirtual

Reimplemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

Definition at line 256 of file agent_route.h.

virtual bool AgentRoute::RecomputeRoutePath	(	Agent *	agent,
		DBTablePartition *	part,
		AgentPath *	path,
		AgentRouteData *	data
	)

inlinevirtual

Definition at line 262 of file agent_route.h.

void AgentRoute::RemovePath ( AgentPath * path )

protected

Definition at line 606 of file agent_route.cc.

Here is the call graph for this function:

void AgentRoute::RemoveUnresolvedRouteFromTable ( AgentRouteTable * table )

Definition at line 364 of file agent_route.cc.

Here is the call graph for this function:

void AgentRoute::ResyncTunnelNextHop ( void )

Definition at line 895 of file agent_route.cc.

Here is the call graph for this function:

void AgentRoute::set_intf_route_type ( const std::string & intf_route_type )

inline

Definition at line 278 of file agent_route.h.

Here is the call graph for this function:

virtual void AgentRoute::SetKey ( const DBRequestKey * key )

pure virtual

Implements DBEntry.

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

void AgentRoute::SetVrf ( VrfEntry * vrf )

inlineprotected

Definition at line 325 of file agent_route.h.

Here is the call graph for this function:

bool AgentRoute::SubOpAddChangeInput	(	VrfEntry *	vrf,
		AgentRouteTable *	table,
		AgentPath **	path_ptr,
		AgentRouteKey *	key,
		AgentRouteData *	data,
		bool	route_added
	)

Definition at line 501 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::SubOpResyncInput	(	VrfEntry *	vrf,
		AgentRouteTable *	table,
		AgentPath **	path_ptr,
		AgentRouteKey *	key,
		AgentRouteData *	data
	)

Definition at line 468 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::Sync ( void )

Definition at line 957 of file agent_route.cc.

Here is the call graph for this function:

string AgentRoute::ToString ( ) const

pure virtual

Implements DBEntryBase.

Implemented in EvpnRouteEntry, BridgeRouteEntry, InetUnicastRouteEntry, and Inet4MulticastRouteEntry.

Definition at line 1031 of file agent_route.cc.

void AgentRoute::UpdateDependantRoutes ( void )

Definition at line 935 of file agent_route.cc.

Here is the call graph for this function:

virtual void AgentRoute::UpdateDerivedRoutes	(	AgentRouteTable *	table,
		const AgentPath *	path,
		bool	active_path_changed
	)

inlinevirtual

Reimplemented in EvpnRouteEntry.

Definition at line 267 of file agent_route.h.

virtual bool AgentRoute::ValidateMcastSrc ( ) const

inlineprotectedvirtual

Reimplemented in BridgeRouteEntry.

Definition at line 339 of file agent_route.h.

VrfEntry* AgentRoute::vrf ( ) const

inline

Definition at line 275 of file agent_route.h.

uint32_t AgentRoute::vrf_id ( ) const

Definition at line 1040 of file agent_route.cc.

Here is the call graph for this function:

bool AgentRoute::WaitForTraffic ( ) const

Definition at line 971 of file agent_route.cc.

Here is the call graph for this function:

Friends And Related Function Documentation

friend class AgentRouteTable

friend

Definition at line 342 of file agent_route.h.

friend class EcmpData

friend

Definition at line 344 of file agent_route.h.

Member Data Documentation

AgentRouteTable* AgentRoute::dependent_route_table_

private

Definition at line 354 of file agent_route.h.

std::string AgentRoute::intf_route_type_

private

Definition at line 353 of file agent_route.h.

bool AgentRoute::is_multicast_

private

Definition at line 352 of file agent_route.h.

VrfEntry* AgentRoute::vrf_

private

Definition at line 349 of file agent_route.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
