RibOut Class Reference

#include <bgp_ribout.h>

Collaboration diagram for RibOut:

Classes
class	PeerIterator
struct	PeerState

Public Member Functions
	RibOut (BgpTable *table, BgpUpdateSender *sender, const RibExportPolicy &policy)
	~RibOut ()
void	RegisterListener ()
void	Register (IPeerUpdate *peer)
void	Unregister (IPeerUpdate *peer)
bool	IsRegistered (IPeerUpdate *peer)
void	Deactivate (IPeerUpdate *peer)
bool	IsActive (IPeerUpdate *peer) const
void	BuildSendReadyBitSet (const RibPeerSet &peerset, RibPeerSet *mready) const
IPeerUpdate *	GetPeer (int index) const
int	GetPeerIndex (IPeerUpdate *peer) const
const RibPeerSet &	PeerSet () const
void	GetSubsetPeerSet (RibPeerSet *peerset, const IPeerUpdate *cpeer) const
BgpTable *	table ()
const BgpTable *	table () const
BgpUpdateSender *	sender ()
const RibExportPolicy &	ExportPolicy () const
int	RouteAdvertiseCount (const BgpRoute *rt) const
uint32_t	GetQueueSize () const
DBTableBase::ListenerId	listener_id () const
const std::string &	ToString () const
RibOutUpdates *	updates (int idx)
const RibOutUpdates *	updates (int idx) const
BgpExport *	bgp_export ()
BgpProto::BgpPeerType	peer_type () const
as_t	peer_as () const
as_t	local_as () const
bool	as_override () const
bool	llgr () const
bool	as4_supported () const
void	set_as4_supported (bool as4)
const IpAddress &	nexthop () const
bool	IsEncodingXmpp () const
bool	IsEncodingBgp () const
std::string	EncodingString () const
bool	remove_private_enabled () const
bool	remove_private_all () const
bool	remove_private_replace () const
bool	remove_private_peer_loop_check () const
uint32_t	cluster_id () const
void	FillStatisticsInfo (std::vector< ShowRibOutStatistics > *sros_list) const

Private Types
typedef IndexMap< IPeerUpdate *, PeerState, RibPeerSet >	PeerStateMap

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (RibOut)

Private Attributes
BgpTable *	table_
BgpUpdateSender *	sender_
RibExportPolicy	policy_
std::string	name_
PeerStateMap	state_map_
RibPeerSet	active_peerset_
int	listener_id_
std::vector< RibOutUpdates * >	updates_
boost::scoped_ptr< BgpExport >	bgp_export_

Detailed Description

Definition at line 260 of file bgp_ribout.h.

Member Typedef Documentation

PeerStateMap

typedef IndexMap<IPeerUpdate *, PeerState, RibPeerSet> RibOut::PeerStateMap

private

Definition at line 359 of file bgp_ribout.h.

Constructor & Destructor Documentation

RibOut()

RibOut::RibOut	(	BgpTable *	table,
		BgpUpdateSender *	sender,
		const RibExportPolicy &	policy
	)

Definition at line 298 of file bgp_ribout.cc.

Here is the call graph for this function:

~RibOut()

RibOut::~RibOut

(

)

Definition at line 328 of file bgp_ribout.cc.

Here is the call graph for this function:

Member Function Documentation

as4_supported()

bool RibOut::as4_supported ( ) const

inline

Definition at line 325 of file bgp_ribout.h.

as_override()

bool RibOut::as_override ( ) const

inline

Definition at line 323 of file bgp_ribout.h.

bgp_export()

BgpExport* RibOut::bgp_export ( )

inline

Definition at line 318 of file bgp_ribout.h.

BuildSendReadyBitSet()

void RibOut::BuildSendReadyBitSet	(	const RibPeerSet &	peerset,
		RibPeerSet *	mready
	)		const

Definition at line 427 of file bgp_ribout.cc.

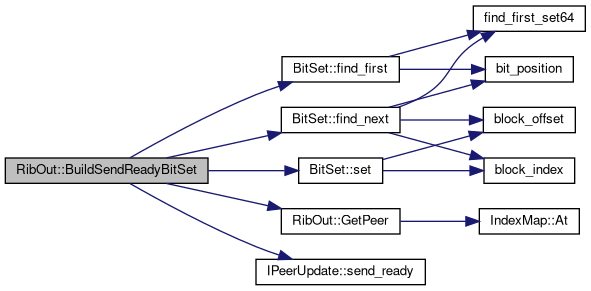

Here is the call graph for this function:

cluster_id()

uint32_t RibOut::cluster_id ( ) const

inline

Definition at line 347 of file bgp_ribout.h.

Deactivate()

void RibOut::Deactivate

(

IPeerUpdate *

peer

)

Definition at line 412 of file bgp_ribout.cc.

Here is the call graph for this function:

DISALLOW_COPY_AND_ASSIGN()

RibOut::DISALLOW_COPY_AND_ASSIGN ( RibOut  )

private

EncodingString()

std::string RibOut::EncodingString ( ) const

inline

Definition at line 334 of file bgp_ribout.h.

Here is the call graph for this function:

ExportPolicy()

const RibExportPolicy& RibOut::ExportPolicy ( ) const

inline

Definition at line 308 of file bgp_ribout.h.

FillStatisticsInfo()

void RibOut::FillStatisticsInfo

(

std::vector< ShowRibOutStatistics > *

sros_list

)

const

Definition at line 546 of file bgp_ribout.cc.

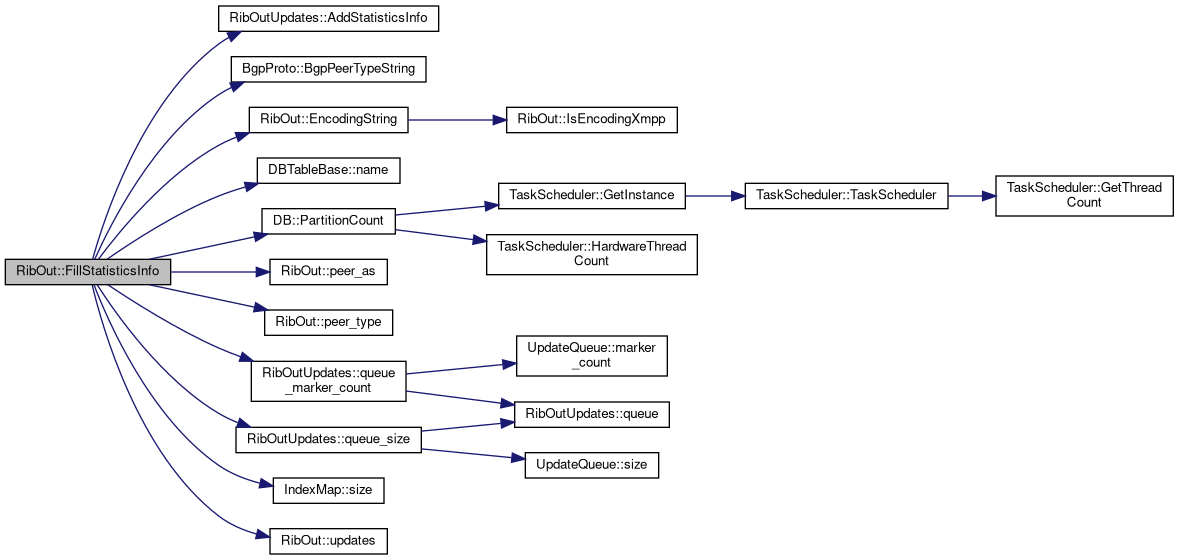

Here is the call graph for this function:

GetPeer()

IPeerUpdate * RibOut::GetPeer

(

int

index

)

const

Definition at line 526 of file bgp_ribout.cc.

Here is the call graph for this function:

GetPeerIndex()

int RibOut::GetPeerIndex

(

IPeerUpdate *

peer

)

const

Definition at line 537 of file bgp_ribout.cc.

Here is the call graph for this function:

GetQueueSize()

uint32_t RibOut::GetQueueSize

(

)

const

Definition at line 486 of file bgp_ribout.cc.

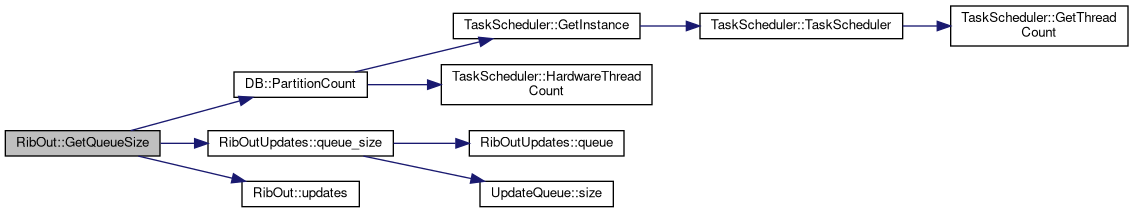

Here is the call graph for this function:

GetSubsetPeerSet()

void RibOut::GetSubsetPeerSet	(	RibPeerSet *	peerset,
		const IPeerUpdate *	cpeer
	)		const

Definition at line 513 of file bgp_ribout.cc.

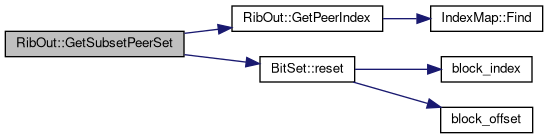

Here is the call graph for this function:

IsActive()

bool RibOut::IsActive

(

IPeerUpdate *

peer

)

const

Definition at line 419 of file bgp_ribout.cc.

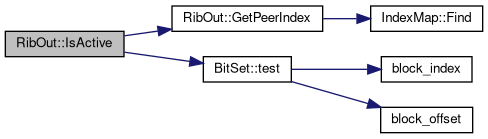

Here is the call graph for this function:

IsEncodingBgp()

bool RibOut::IsEncodingBgp ( ) const

inline

Definition at line 331 of file bgp_ribout.h.

IsEncodingXmpp()

bool RibOut::IsEncodingXmpp ( ) const

inline

Definition at line 328 of file bgp_ribout.h.

IsRegistered()

bool RibOut::IsRegistered

(

IPeerUpdate *

peer

)

Definition at line 399 of file bgp_ribout.cc.

Here is the call graph for this function:

listener_id()

DBTableBase::ListenerId RibOut::listener_id ( ) const

inline

Definition at line 313 of file bgp_ribout.h.

llgr()

bool RibOut::llgr ( ) const

inline

Definition at line 324 of file bgp_ribout.h.

local_as()

as_t RibOut::local_as ( ) const

inline

Definition at line 322 of file bgp_ribout.h.

nexthop()

const IpAddress& RibOut::nexthop ( ) const

inline

Definition at line 327 of file bgp_ribout.h.

peer_as()

as_t RibOut::peer_as ( ) const

inline

Definition at line 321 of file bgp_ribout.h.

peer_type()

BgpProto::BgpPeerType RibOut::peer_type ( ) const

inline

Definition at line 320 of file bgp_ribout.h.

PeerSet()

const RibPeerSet & RibOut::PeerSet

(

)

const

Definition at line 505 of file bgp_ribout.cc.

Register()

void RibOut::Register

(

IPeerUpdate *

peer

)

Definition at line 358 of file bgp_ribout.cc.

Here is the call graph for this function:

RegisterListener()

void RibOut::RegisterListener

(

)

Definition at line 344 of file bgp_ribout.cc.

Here is the call graph for this function:

remove_private_all()

bool RibOut::remove_private_all ( ) const

inline

Definition at line 340 of file bgp_ribout.h.

remove_private_enabled()

bool RibOut::remove_private_enabled ( ) const

inline

Definition at line 337 of file bgp_ribout.h.

remove_private_peer_loop_check()

bool RibOut::remove_private_peer_loop_check ( ) const

inline

Definition at line 344 of file bgp_ribout.h.

remove_private_replace()

bool RibOut::remove_private_replace ( ) const

inline

Definition at line 341 of file bgp_ribout.h.

RouteAdvertiseCount()

int RibOut::RouteAdvertiseCount

(

const BgpRoute *

rt

)

const

Definition at line 441 of file bgp_ribout.cc.

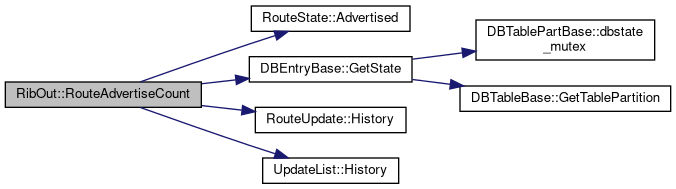

Here is the call graph for this function:

sender()

BgpUpdateSender* RibOut::sender ( )

inline

Definition at line 306 of file bgp_ribout.h.

set_as4_supported()

void RibOut::set_as4_supported ( bool  as4 )

inline

Definition at line 326 of file bgp_ribout.h.

table() [1/2]

BgpTable* RibOut::table ( )

inline

Definition at line 304 of file bgp_ribout.h.

table() [2/2]

const BgpTable* RibOut::table ( ) const

inline

Definition at line 305 of file bgp_ribout.h.

ToString()

const std::string& RibOut::ToString ( ) const

inline

Definition at line 314 of file bgp_ribout.h.

Unregister()

void RibOut::Unregister

(

IPeerUpdate *

peer

)

Definition at line 379 of file bgp_ribout.cc.

Here is the call graph for this function:

updates() [1/2]

RibOutUpdates* RibOut::updates ( int  idx )

inline

Definition at line 316 of file bgp_ribout.h.

updates() [2/2]

const RibOutUpdates* RibOut::updates ( int  idx ) const

inline

Definition at line 317 of file bgp_ribout.h.

Member Data Documentation

active_peerset_

RibPeerSet RibOut::active_peerset_

private

Definition at line 366 of file bgp_ribout.h.

bgp_export_

boost::scoped_ptr<BgpExport> RibOut::bgp_export_

private

Definition at line 369 of file bgp_ribout.h.

listener_id_

int RibOut::listener_id_

private

Definition at line 367 of file bgp_ribout.h.

name_

std::string RibOut::name_

private

Definition at line 364 of file bgp_ribout.h.

policy_

RibExportPolicy RibOut::policy_

private

Definition at line 363 of file bgp_ribout.h.

sender_

BgpUpdateSender* RibOut::sender_

private

Definition at line 362 of file bgp_ribout.h.

state_map_

PeerStateMap RibOut::state_map_

private

Definition at line 365 of file bgp_ribout.h.

table_

BgpTable* RibOut::table_

private

Definition at line 361 of file bgp_ribout.h.

updates_

std::vector<RibOutUpdates *> RibOut::updates_

private

Definition at line 368 of file bgp_ribout.h.

---

The documentation for this class was generated from the following files:

• bgp_ribout.h
• bgp_ribout.cc
