#include <bgp_route.h>

Inheritance diagram for BgpRoute:

Collaboration diagram for BgpRoute:

Public Member Functions
	BgpRoute ()

	~BgpRoute ()

bool	HasPaths () const

const BgpPath *	BestPath () const

void	InsertPath (BgpPath *path)

void	DeletePath (BgpPath *path)

const BgpPath *	FindPath (BgpPath::PathSource src) const

const BgpPath *	FindPath (const IPeer *peer, bool include_secondary=false) const

BgpPath *	FindPath (const IPeer *peer, bool include_secondary=false)

BgpPath *	FindPath (const IpAddress &nexthop)

BgpPath *	FindPath (BgpPath::PathSource src, const IPeer *peer, uint32_t path_id)

BgpPath *	FindPath (BgpPath::PathSource src, uint32_t path_id)

bool	RemovePath (BgpPath::PathSource src, const IPeer *peer=NULL, uint32_t path_id=0)

bool	RemovePath (BgpPath::PathSource src, uint32_t path_id)

bool	RemovePath (const IPeer *peer)

bool	IsUsable () const

virtual bool	IsValid () const

bool	DuplicateForwardingPath (const BgpPath *in_path) const

BgpPath *	FindSecondaryPath (BgpRoute src_rt, BgpPath::PathSource src, const IPeer peer, uint32_t path_id)

bool	RemoveSecondaryPath (const BgpRoute src_rt, BgpPath::PathSource src, const IPeer peer, uint32_t path_id)

virtual RouteDistinguisher	GetRouteDistinguisher () const

void	NotifyOrDelete ()

BgpTable *	table ()

const BgpTable *	table () const

virtual std::string	ToXmppIdString () const

virtual void	BuildProtoPrefix (BgpProtoPrefix prefix, const BgpAttr attr=NULL, uint32_t label=0, uint32_t l3_label=0) const

virtual void	BuildBgpProtoNextHop (std::vector< uint8_t > &nh, IpAddress nexthop) const

size_t	count () const

void	FillRouteInfo (const BgpTable table, ShowRouteBrief show_route) const

void	FillRouteInfo (const BgpTable table, ShowRoute show_route, const std::string &source="", const std::string &protocol="") const

uint32_t	SubClusterId () const

void	AddExtCommunitySubCluster (BgpPath *path)

Public Member Functions inherited from Route
	Route ()

virtual	~Route ()

virtual int	CompareTo (const Route &rhs) const =0

bool	operator< (const Route &rhs) const

const Path *	front () const

void	insert (const Path *path)

void	remove (const Path *path)

void	Sort (Compare compare, const Path *prev_front)

const PathList &	GetPathList () const

PathList &	GetPathList ()

Public Member Functions inherited from DBEntry
	DBEntry ()

virtual	~DBEntry ()

virtual void	SetKey (const DBRequestKey *key)=0

virtual bool	IsLess (const DBEntry &rhs) const =0

bool	operator< (const DBEntry &rhs) const

Public Member Functions inherited from DBEntryBase
	DBEntryBase ()

virtual	~DBEntryBase ()

virtual std::string	ToString () const =0

virtual KeyPtr	GetDBRequestKey () const =0

virtual bool	IsMoreSpecific (const std::string &match) const

virtual bool	IsLessSpecific (const std::string &match) const

void	SetState (DBTableBase tbl_base, ListenerId listener, DBState state)

void	ClearState (DBTableBase *tbl_base, ListenerId listener)

DBState *	GetState (DBTableBase *tbl_base, ListenerId listener) const

const DBState *	GetState (const DBTableBase *tbl_base, ListenerId listener) const

bool	is_state_empty (DBTablePartBase *tpart)

bool	is_state_empty_unlocked (DBTablePartBase *tpart)

void	Delete ()

void	MarkDelete ()

void	ClearDelete ()

bool	IsDeleted () const

void	set_onlist ()

void	clear_onlist ()

bool	is_onlist ()

void	SetOnRemoveQ ()

bool	IsOnRemoveQ ()

void	ClearOnRemoveQ ()

void	set_last_change_at (uint64_t time)

void	set_last_change_at_to_now ()

const uint64_t	last_change_at () const

const std::string	last_change_at_str () const

void	set_last_update_at (uint64_t time)

void	set_last_update_at_to_now ()

const uint64_t	last_update_at () const

DBTablePartBase *	get_table_partition () const

void	set_table_partition (DBTablePartBase *tpart)

DBTableBase *	get_table () const

void	Notify ()

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (BgpRoute)

Additional Inherited Members
Public Types inherited from Route
typedef boost::intrusive::member_hook < Path, boost::intrusive::list_member_hook <>,&Path::node_ >	PathListMember

typedef boost::intrusive::list < Path, PathListMember >	PathList

typedef bool(*	Compare )(const Path &path1, const Path &path2)

Public Types inherited from DBEntryBase
typedef DBTableBase::ListenerId	ListenerId

typedef std::unique_ptr < DBRequestKey >	KeyPtr

Public Attributes inherited from DBEntryBase
boost::intrusive::list_member_hook	chg_list_

Detailed Description

Definition at line 22 of file bgp_route.h.

Constructor & Destructor Documentation

BgpRoute::BgpRoute ( )

Definition at line 35 of file bgp_route.cc.

BgpRoute::~BgpRoute ( )

Definition at line 38 of file bgp_route.cc.

Here is the call graph for this function:

Member Function Documentation

void BgpRoute::AddExtCommunitySubCluster ( BgpPath * path )

const BgpPath * BgpRoute::BestPath ( ) const

Definition at line 46 of file bgp_route.cc.

Here is the call graph for this function:

virtual void BgpRoute::BuildBgpProtoNextHop	(	std::vector< uint8_t > &	nh,
		IpAddress	nexthop
	)		const

inlinevirtual

Reimplemented in EvpnRoute, MvpnRoute, ErmVpnRoute, Inet6Route, InetRoute, Inet6VpnRoute, InetVpnRoute, and RTargetRoute.

Definition at line 71 of file bgp_route.h.

virtual void BgpRoute::BuildProtoPrefix	(	BgpProtoPrefix *	prefix,
		const BgpAttr *	attr = `NULL`,
		uint32_t	label = `0`,
		uint32_t	l3_label = `0`
	)		const

inlinevirtual

Reimplemented in EvpnRoute, MvpnRoute, ErmVpnRoute, Inet6Route, InetRoute, Inet6VpnRoute, InetVpnRoute, and RTargetRoute.

Definition at line 66 of file bgp_route.h.

size_t BgpRoute::count ( ) const

Definition at line 420 of file bgp_route.cc.

Here is the call graph for this function:

void BgpRoute::DeletePath ( BgpPath * path )

Definition at line 126 of file bgp_route.cc.

Here is the call graph for this function:

BgpRoute::DISALLOW_COPY_AND_ASSIGN ( BgpRoute )

private

bool BgpRoute::DuplicateForwardingPath ( const BgpPath * in_path ) const

Definition at line 352 of file bgp_route.cc.

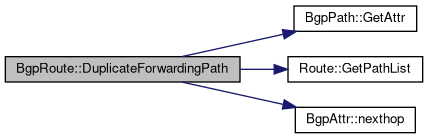

Here is the call graph for this function:

void BgpRoute::FillRouteInfo	(	const BgpTable *	table,
		ShowRouteBrief *	show_route
	)		const

Definition at line 432 of file bgp_route.cc.

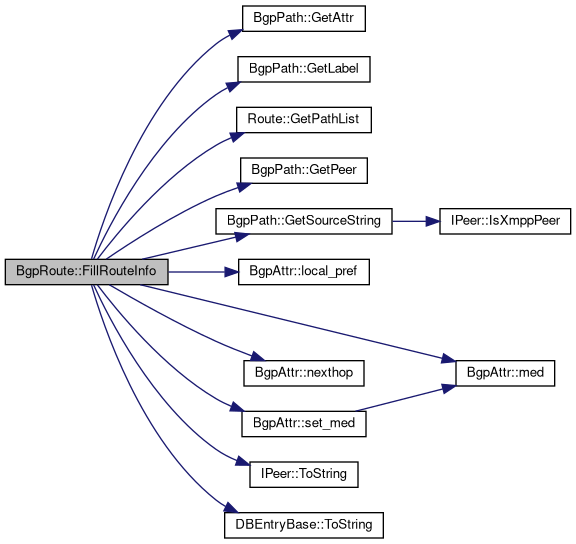

Here is the call graph for this function:

void BgpRoute::FillRouteInfo	(	const BgpTable *	table,
		ShowRoute *	show_route,
		const std::string &	source = `""`,
		const std::string &	protocol = `""`
	)		const
