AgentDBEntry Class Referenceabstract

#include <agent_db.h>

Inheritance diagram for AgentDBEntry:
Inheritance graph
[legend]
Collaboration diagram for AgentDBEntry:
Collaboration graph
[legend]

Public Types

typedef boost::intrusive_ptr< AgentDBEntry > AgentDBEntyRef

- Public Types inherited from DBEntryBase
typedef DBTableBase::ListenerId ListenerId

typedef std::unique_ptr< DBRequestKey > KeyPtr


Public Member Functions

 AgentDBEntry ()

virtual ~AgentDBEntry ()

virtual uint32_t GetRefCount () const =0

void SetRefState () const

void ClearRefState () const

bool IsActive () const

DBState * GetAgentDBEntryState (int listener_id)

const DBState * GetAgentDBEntryState (int listener_id) const

virtual void AllocateResources (ResourceManager *resource_manager)

virtual void FreeResources (ResourceManager *resource_manager)

virtual void PostAdd ()

virtual bool DBEntrySandesh (Sandesh *resp, std::string &name) const =0

- Public Member Functions inherited from DBEntry
 DBEntry ()

virtual ~DBEntry ()

virtual void SetKey (const DBRequestKey *key)=0

virtual bool IsLess (const DBEntry &rhs) const =0

bool operator< (const DBEntry &rhs) const

- Public Member Functions inherited from DBEntryBase
 DBEntryBase ()

virtual ~DBEntryBase ()

virtual std::string ToString () const =0

virtual KeyPtr GetDBRequestKey () const =0

virtual bool IsMoreSpecific (const std::string &match) const

virtual bool IsLessSpecific (const std::string &match) const

void SetState (DBTableBase *tbl_base, ListenerId listener, DBState *state)

void ClearState (DBTableBase *tbl_base, ListenerId listener)

DBState * GetState (DBTableBase *tbl_base, ListenerId listener) const

const DBState * GetState (const DBTableBase *tbl_base, ListenerId listener) const

bool is_state_empty (DBTablePartBase *tpart)

bool is_state_empty_unlocked (DBTablePartBase *tpart)

void Delete ()

void MarkDelete ()

void ClearDelete ()

bool IsDeleted () const

void set_onlist ()

void clear_onlist ()

bool is_onlist ()

void SetOnRemoveQ ()

bool IsOnRemoveQ ()

void ClearOnRemoveQ ()

void set_last_change_at (uint64_t time)

void set_last_change_at_to_now ()

const uint64_t last_change_at () const

const std::string last_change_at_str () const

void set_last_update_at (uint64_t time)

void set_last_update_at_to_now ()

const uint64_t last_update_at () const

DBTablePartBase * get_table_partition () const

void set_table_partition (DBTablePartBase *tpart)

DBTableBase * get_table () const

void Notify ()


Private Member Functions

 DISALLOW_COPY_AND_ASSIGN (AgentDBEntry)


Friends

class AgentDBTable


Additional Inherited Members

- Public Attributes inherited from DBEntryBase
boost::intrusive::list_member_hook chg_list_


Detailed Description

Definition at line 123 of file agent_db.h.

Member Typedef Documentation

◆ AgentDBEntyRef

typedef boost::intrusive_ptr<AgentDBEntry> AgentDBEntry::AgentDBEntyRef

Definition at line 129 of file agent_db.h.

Constructor & Destructor Documentation

◆ AgentDBEntry()

AgentDBEntry::AgentDBEntry ( )
inline

Definition at line 125 of file agent_db.h.

◆ ~AgentDBEntry()

virtual AgentDBEntry::~AgentDBEntry ( )
inlinevirtual

Definition at line 126 of file agent_db.h.

Member Function Documentation

◆ AllocateResources()

void AgentDBEntry::AllocateResources ( ResourceManager *  resource_manager)
virtual

Definition at line 43 of file agent_db.cc.

◆ ClearRefState()

void AgentDBEntry::ClearRefState ( ) const

Definition at line 17 of file agent_db.cc.

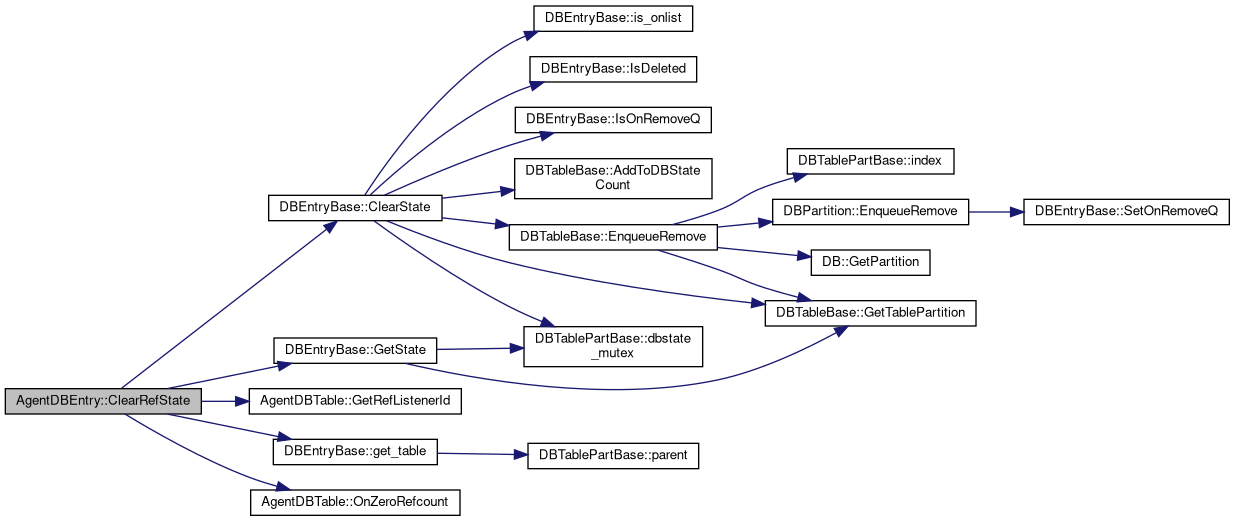

Here is the call graph for this function:

◆ DBEntrySandesh()

virtual bool AgentDBEntry::DBEntrySandesh ( Sandesh *  resp,
std::string &  name
) const
pure virtual

Implemented in VxLanId, VlanVrfAssign, VrfEntry, VnEntry, VmEntry, TagEntry, SgEntry, ServiceInstance, PhysicalDeviceVn, NextHop, MulticastPolicyEntry, MplsLabel, MirrorEntry, Interface, CryptTunnelEntry, SecurityLoggingObject, QosQueue, AgentQosConfig, PhysicalDevice, HealthCheckService, ForwardingClass, BridgeDomainEntry, PolicySet, and AclDBEntry.

◆ DISALLOW_COPY_AND_ASSIGN()

AgentDBEntry::DISALLOW_COPY_AND_ASSIGN ( AgentDBEntry  )
private

◆ FreeResources()

void AgentDBEntry::FreeResources ( ResourceManager *  resource_manager)
virtual

Definition at line 46 of file agent_db.cc.

◆ GetAgentDBEntryState() [1/2]

DBState * AgentDBEntry::GetAgentDBEntryState ( int  listener_id)

Definition at line 31 of file agent_db.cc.

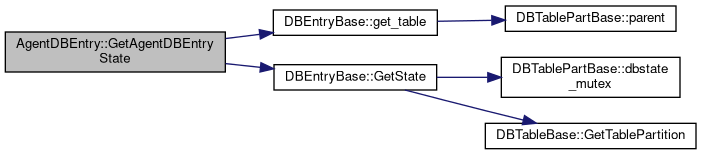

Here is the call graph for this function:

◆ GetAgentDBEntryState() [2/2]

const DBState * AgentDBEntry::GetAgentDBEntryState ( int  listener_id) const

Definition at line 37 of file agent_db.cc.

Here is the call graph for this function:

◆ GetRefCount()

virtual uint32_t AgentDBEntry::GetRefCount ( ) const
pure virtual

Implemented in VxLanId, VrfAssign, VrfEntry, VnEntry, VmEntry, TagEntry, SgEntry, ServiceInstance, SecurityLoggingObject, QosQueue, AgentQosConfig, PhysicalDeviceVn, PhysicalDevice, NextHop, MulticastPolicyEntry, MplsLabel, MirrorEntry, Interface, HealthCheckService, ForwardingClass, CryptTunnelEntry, BridgeDomainEntry, PolicySet, and AclDBEntry.

◆ IsActive()

bool AgentDBEntry::IsActive ( ) const

Definition at line 27 of file agent_db.cc.

Here is the call graph for this function:

◆ PostAdd()

void AgentDBEntry::PostAdd ( )
virtual

Reimplemented in VrfEntry, VmInterface, QosQueue, PhysicalInterface, PacketInterface, NextHop, InetInterface, HealthCheckService, and CryptTunnelEntry.

Definition at line 49 of file agent_db.cc.

◆ SetRefState()

void AgentDBEntry::SetRefState ( ) const

Definition at line 9 of file agent_db.cc.

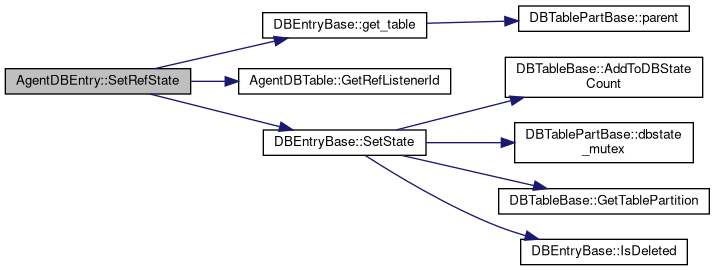

Here is the call graph for this function:

Friends And Related Function Documentation

◆ AgentDBTable

friend class AgentDBTable
friend

Definition at line 141 of file agent_db.h.

The documentation for this class was generated from the following files:
