#include <physical_device_vn.h>

Inheritance diagram for PhysicalDeviceVn:

[legend]

Collaboration diagram for PhysicalDeviceVn:

[legend]

Public Member Functions
	PhysicalDeviceVn (const boost::uuids::uuid &device_uuid, const boost::uuids::uuid &vn_uuid)

virtual	~PhysicalDeviceVn ()

virtual bool	IsLess (const DBEntry &rhs) const

virtual void	SetKey (const DBRequestKey *key)

virtual std::string	ToString () const

uint32_t	GetRefCount () const

DBEntryBase::KeyPtr	GetDBRequestKey () const

const boost::uuids::uuid &	device_uuid () const

PhysicalDevice *	device () const

const boost::uuids::uuid &	vn_uuid () const

VnEntry *	vn () const

int	vxlan_id () const

const IpAddress &	tor_ip () const

const std::string &	device_display_name () const

bool	Copy (PhysicalDeviceVnTable table, const PhysicalDeviceVnData data)

void	SendObjectLog (AgentLogEvent::type event) const

bool	DBEntrySandesh (Sandesh *sresp, std::string &name) const

Public Member Functions inherited from AgentDBEntry
	AgentDBEntry ()

virtual	~AgentDBEntry ()

void	SetRefState () const

void	ClearRefState () const

bool	IsActive () const

DBState *	GetAgentDBEntryState (int listener_id)

const DBState *	GetAgentDBEntryState (int listener_id) const

virtual void	AllocateResources (ResourceManager *resource_manager)

virtual void	FreeResources (ResourceManager *resource_manager)

virtual void	PostAdd ()

Public Member Functions inherited from DBEntry
	DBEntry ()

virtual	~DBEntry ()

bool	operator< (const DBEntry &rhs) const

Public Member Functions inherited from DBEntryBase
	DBEntryBase ()

virtual	~DBEntryBase ()

virtual bool	IsMoreSpecific (const std::string &match) const

virtual bool	IsLessSpecific (const std::string &match) const

void	SetState (DBTableBase tbl_base, ListenerId listener, DBState state)

void	ClearState (DBTableBase *tbl_base, ListenerId listener)

DBState *	GetState (DBTableBase *tbl_base, ListenerId listener) const

const DBState *	GetState (const DBTableBase *tbl_base, ListenerId listener) const

bool	is_state_empty (DBTablePartBase *tpart)

bool	is_state_empty_unlocked (DBTablePartBase *tpart)

void	Delete ()

void	MarkDelete ()

void	ClearDelete ()

bool	IsDeleted () const

void	set_onlist ()

void	clear_onlist ()

bool	is_onlist ()

void	SetOnRemoveQ ()

bool	IsOnRemoveQ ()

void	ClearOnRemoveQ ()

void	set_last_change_at (uint64_t time)

void	set_last_change_at_to_now ()

const uint64_t	last_change_at () const

const std::string	last_change_at_str () const

void	set_last_update_at (uint64_t time)

void	set_last_update_at_to_now ()

const uint64_t	last_update_at () const

DBTablePartBase *	get_table_partition () const

void	set_table_partition (DBTablePartBase *tpart)

DBTableBase *	get_table () const

void	Notify ()

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (PhysicalDeviceVn)

Private Member Functions inherited from AgentRefCount< PhysicalDeviceVn >
uint32_t	GetRefCount () const

	AgentRefCount ()

	AgentRefCount (const AgentRefCount &)

AgentRefCount &	operator= (const AgentRefCount &)

virtual	~AgentRefCount ()

void	swap (AgentRefCount &)

Private Attributes
boost::uuids::uuid	device_uuid_

boost::uuids::uuid	vn_uuid_

PhysicalDeviceRef	device_

VnEntryRef	vn_

int	vxlan_id_

IpAddress	tor_ip_

std::string	device_display_name_

Private Attributes inherited from AgentRefCount< PhysicalDeviceVn >
tbb::mutex	back_ref_mutex_

std::set< IntrusiveReferrer >	back_ref_set_

Friends
class	PhysicalDeviceVnTable

Additional Inherited Members
Public Types inherited from AgentDBEntry
typedef boost::intrusive_ptr< AgentDBEntry >	AgentDBEntyRef

Public Types inherited from DBEntryBase
typedef DBTableBase::ListenerId	ListenerId

typedef std::unique_ptr< DBRequestKey >	KeyPtr

Public Attributes inherited from DBEntryBase
boost::intrusive::list_member_hook	chg_list_

Detailed Description

Definition at line 63 of file physical_device_vn.h.

Constructor & Destructor Documentation

◆ PhysicalDeviceVn()

PhysicalDeviceVn::PhysicalDeviceVn	(	const boost::uuids::uuid &	device_uuid,
		const boost::uuids::uuid &	vn_uuid
	)

inline

Definition at line 66 of file physical_device_vn.h.

◆ ~PhysicalDeviceVn()

virtual PhysicalDeviceVn::~PhysicalDeviceVn ( )

inlinevirtual

Definition at line 70 of file physical_device_vn.h.

Member Function Documentation

◆ Copy()

bool PhysicalDeviceVn::Copy	(	PhysicalDeviceVnTable *	table,
		const PhysicalDeviceVnData *	data
	)

Definition at line 51 of file physical_device_vn.cc.

Here is the call graph for this function:

◆ DBEntrySandesh()

bool PhysicalDeviceVn::DBEntrySandesh	(	Sandesh *	sresp,
		std::string &	name
	)		const

virtual

Implements AgentDBEntry.

Definition at line 310 of file physical_device_vn.cc.

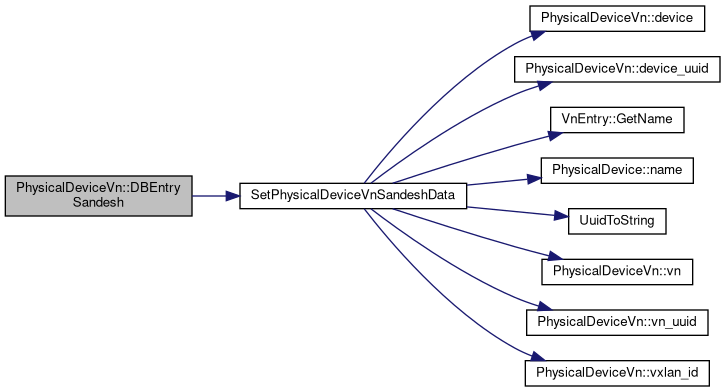

Here is the call graph for this function:

◆ device()

PhysicalDevice* PhysicalDeviceVn::device ( ) const

inline

Definition at line 81 of file physical_device_vn.h.

◆ device_display_name()

const std::string& PhysicalDeviceVn::device_display_name ( ) const

inline

Definition at line 87 of file physical_device_vn.h.

◆ device_uuid()

const boost::uuids::uuid& PhysicalDeviceVn::device_uuid ( ) const

inline

Definition at line 80 of file physical_device_vn.h.

◆ DISALLOW_COPY_AND_ASSIGN()

PhysicalDeviceVn::DISALLOW_COPY_AND_ASSIGN ( PhysicalDeviceVn )

private

◆ GetDBRequestKey()

DBEntryBase::KeyPtr PhysicalDeviceVn::GetDBRequestKey ( ) const

virtual

Implements DBEntryBase.

Definition at line 38 of file physical_device_vn.cc.

◆ GetRefCount()

uint32_t PhysicalDeviceVn::GetRefCount ( ) const

inlinevirtual

Implements AgentDBEntry.

Definition at line 75 of file physical_device_vn.h.

Here is the call graph for this function:

◆ IsLess()

bool PhysicalDeviceVn::IsLess ( const DBEntry & rhs ) const

virtual

Implements DBEntry.

Definition at line 25 of file physical_device_vn.cc.

◆ SendObjectLog()

void PhysicalDeviceVn::SendObjectLog ( AgentLogEvent::type event ) const

Definition at line 338 of file physical_device_vn.cc.

Here is the call graph for this function:

◆ SetKey()

void PhysicalDeviceVn::SetKey ( const DBRequestKey * key )

virtual

Implements DBEntry.

Definition at line 43 of file physical_device_vn.cc.

◆ tor_ip()

const IpAddress& PhysicalDeviceVn::tor_ip ( ) const

inline

Definition at line 86 of file physical_device_vn.h.

◆ ToString()

string PhysicalDeviceVn::ToString ( ) const

virtual

Implements DBEntryBase.

Definition at line 34 of file physical_device_vn.cc.

Here is the call graph for this function:

◆ vn()

VnEntry* PhysicalDeviceVn::vn ( ) const

inline

Definition at line 84 of file physical_device_vn.h.

◆ vn_uuid()

const boost::uuids::uuid& PhysicalDeviceVn::vn_uuid ( ) const

inline

Definition at line 83 of file physical_device_vn.h.

◆ vxlan_id()

int PhysicalDeviceVn::vxlan_id ( ) const

inline

Definition at line 85 of file physical_device_vn.h.

Friends And Related Function Documentation

◆ PhysicalDeviceVnTable

friend class PhysicalDeviceVnTable

friend

Definition at line 94 of file physical_device_vn.h.

Member Data Documentation

◆ device_

PhysicalDeviceRef PhysicalDeviceVn::device_

private

Definition at line 98 of file physical_device_vn.h.

◆ device_display_name_

std::string PhysicalDeviceVn::device_display_name_

private

Definition at line 102 of file physical_device_vn.h.

◆ device_uuid_

boost::uuids::uuid PhysicalDeviceVn::device_uuid_

private

Definition at line 95 of file physical_device_vn.h.

◆ tor_ip_

IpAddress PhysicalDeviceVn::tor_ip_

private

Definition at line 101 of file physical_device_vn.h.

◆ vn_

VnEntryRef PhysicalDeviceVn::vn_

private

Definition at line 99 of file physical_device_vn.h.

◆ vn_uuid_

boost::uuids::uuid PhysicalDeviceVn::vn_uuid_

private

Definition at line 96 of file physical_device_vn.h.

◆ vxlan_id_

int PhysicalDeviceVn::vxlan_id_

private

Definition at line 100 of file physical_device_vn.h.

The documentation for this class was generated from the following files:
