OpenSDN source code
Public Types | Public Member Functions | Private Member Functions | Private Attributes | Friends | List of all members
AclDBEntry Class Reference

#include <acl.h>

Inheritance diagram for AclDBEntry:
Inheritance graph
[legend]
Collaboration diagram for AclDBEntry:
Collaboration graph
[legend]

Public Types

typedef boost::intrusive::member_hook< AclEntry, boost::intrusive::list_member_hook<>, &AclEntry::acl_list_node > AclEntryNode

typedef boost::intrusive::list< AclEntry, AclEntryNode > AclEntries

- Public Types inherited from AgentDBEntry
typedef boost::intrusive_ptr< AgentDBEntry > AgentDBEntyRef

- Public Types inherited from DBEntryBase
typedef DBTableBase::ListenerId ListenerId

typedef std::unique_ptr< DBRequestKey > KeyPtr


Public Member Functions

 AclDBEntry (const boost::uuids::uuid &id)

 ~AclDBEntry ()

bool IsLess (const DBEntry &rhs) const

KeyPtr GetDBRequestKey () const

void SetKey (const DBRequestKey *key)

std::string ToString () const

uint32_t GetRefCount () const

const boost::uuids::uuid & GetUuid () const

const std::string & GetName () const

void SetName (const std::string name)

bool DBEntrySandesh (Sandesh *resp, std::string &name) const

void SetAclSandeshData (AclSandeshData &data) const

AclEntry * AddAclEntry (const AclEntrySpec &acl_entry_spec, AclEntries &entries)

bool DeleteAclEntry (const uint32_t acl_entry_id)

void DeleteAllAclEntries ()

uint32_t Size () const

void SetAclEntries (AclEntries &entries)

void SetDynamicAcl (bool dyn)

bool GetDynamicAcl () const

bool PacketMatch (const PacketHeader &packet_header, MatchAclParams &m_acl, FlowPolicyInfo *info) const

bool Changed (const AclEntries &new_acl_entries) const

uint32_t ace_count () const

bool IsRulePresent (const std::string &uuid) const

bool ResyncQosConfigEntries ()

bool IsQosConfigResolved ()

bool Isresolved ()

const AclEntry * GetAclEntryAtIndex (uint32_t) const

- Public Member Functions inherited from AgentOperDBEntry
 AgentOperDBEntry ()

virtual ~AgentOperDBEntry ()

IFMapNode * ifmap_node () const

void SetIFMapNodeState (IFMapDependencyManager::IFMapNodePtr sref)

- Public Member Functions inherited from AgentDBEntry
 AgentDBEntry ()

virtual ~AgentDBEntry ()

void SetRefState () const

void ClearRefState () const

bool IsActive () const

DBState * GetAgentDBEntryState (int listener_id)

const DBState * GetAgentDBEntryState (int listener_id) const

virtual void AllocateResources (ResourceManager *resource_manager)

virtual void FreeResources (ResourceManager *resource_manager)

virtual void PostAdd ()

- Public Member Functions inherited from DBEntry
 DBEntry ()

virtual ~DBEntry ()

bool operator< (const DBEntry &rhs) const

- Public Member Functions inherited from DBEntryBase
 DBEntryBase ()

virtual ~DBEntryBase ()

virtual bool IsMoreSpecific (const std::string &match) const

virtual bool IsLessSpecific (const std::string &match) const

void SetState (DBTableBase *tbl_base, ListenerId listener, DBState *state)

void ClearState (DBTableBase *tbl_base, ListenerId listener)

DBState * GetState (DBTableBase *tbl_base, ListenerId listener) const

const DBState * GetState (const DBTableBase *tbl_base, ListenerId listener) const

bool is_state_empty (DBTablePartBase *tpart)

bool is_state_empty_unlocked (DBTablePartBase *tpart)

void Delete ()

void MarkDelete ()

void ClearDelete ()

bool IsDeleted () const

void set_onlist ()

void clear_onlist ()

bool is_onlist ()

void SetOnRemoveQ ()

bool IsOnRemoveQ ()

void ClearOnRemoveQ ()

void set_last_change_at (uint64_t time)

void set_last_change_at_to_now ()

const uint64_t last_change_at () const

const std::string last_change_at_str () const

void set_last_update_at (uint64_t time)

void set_last_update_at_to_now ()

const uint64_t last_update_at () const

DBTablePartBase * get_table_partition () const

void set_table_partition (DBTablePartBase *tpart)

DBTableBase * get_table () const

void Notify ()


Private Member Functions

 DISALLOW_COPY_AND_ASSIGN (AclDBEntry)

- Private Member Functions inherited from AgentRefCount< AclDBEntry >
uint32_t GetRefCount () const

 AgentRefCount ()

 AgentRefCount (const AgentRefCount &)

AgentRefCount & operator= (const AgentRefCount &)

virtual ~AgentRefCount ()

void swap (AgentRefCount &)


Private Attributes

boost::uuids::uuid uuid_

bool dynamic_acl_

std::string name_

AclEntries acl_entries_

- Private Attributes inherited from AgentRefCount< AclDBEntry >
tbb::mutex back_ref_mutex_

std::set< IntrusiveReferrer > back_ref_set_


Friends

class AclTable


Additional Inherited Members

- Public Attributes inherited from DBEntryBase
boost::intrusive::list_member_hook chg_list_


Detailed Description

Definition at line 92 of file acl.h.

Member Typedef Documentation

◆ AclEntries

typedef boost::intrusive::list<AclEntry, AclEntryNode> AclDBEntry::AclEntries

Definition at line 97 of file acl.h.

◆ AclEntryNode

typedef boost::intrusive::member_hook<AclEntry, boost::intrusive::list_member_hook<>, &AclEntry::acl_list_node> AclDBEntry::AclEntryNode

Definition at line 96 of file acl.h.

Constructor & Destructor Documentation

◆ AclDBEntry()

AclDBEntry::AclDBEntry ( const boost::uuids::uuid &  id)
inline

Definition at line 99 of file acl.h.

◆ ~AclDBEntry()

AclDBEntry::~AclDBEntry ( )
inline

Definition at line 102 of file acl.h.

Member Function Documentation

◆ ace_count()

uint32_t AclDBEntry::ace_count ( ) const
inline

Definition at line 132 of file acl.h.

◆ AddAclEntry()

AclEntry * AclDBEntry::AddAclEntry ( const AclEntrySpec &  acl_entry_spec,
AclEntries &  entries
)

Definition at line 726 of file acl.cc.

Here is the call graph for this function:

◆ Changed()

bool AclDBEntry::Changed ( const AclEntries &  new_acl_entries) const

Definition at line 902 of file acl.cc.

◆ DBEntrySandesh()

bool AclDBEntry::DBEntrySandesh ( Sandesh *  resp,
std::string &  name
) const
virtual

Implements AgentDBEntry.

Definition at line 68 of file acl.cc.

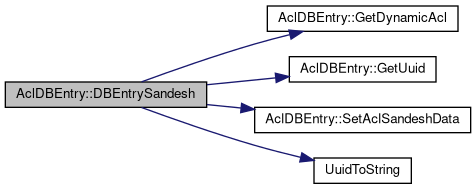

Here is the call graph for this function:

◆ DeleteAclEntry()

bool AclDBEntry::DeleteAclEntry ( const uint32_t  acl_entry_id)

Definition at line 768 of file acl.cc.

Here is the call graph for this function:

◆ DeleteAllAclEntries()

void AclDBEntry::DeleteAllAclEntries ( )

Definition at line 786 of file acl.cc.

◆ DISALLOW_COPY_AND_ASSIGN()

AclDBEntry::DISALLOW_COPY_AND_ASSIGN ( AclDBEntry  )
private

◆ GetAclEntryAtIndex()

const AclEntry * AclDBEntry::GetAclEntryAtIndex ( uint32_t  index) const

Definition at line 888 of file acl.cc.

◆ GetDBRequestKey()

DBEntryBase::KeyPtr AclDBEntry::GetDBRequestKey ( ) const
virtual

Implements DBEntryBase.

Definition at line 58 of file acl.cc.

◆ GetDynamicAcl()

bool AclDBEntry::GetDynamicAcl ( ) const
inline

Definition at line 126 of file acl.h.

◆ GetName()

const std::string& AclDBEntry::GetName ( ) const
inline

Definition at line 113 of file acl.h.

◆ GetRefCount()

uint32_t AclDBEntry::GetRefCount ( ) const
inlinevirtual

Implements AgentDBEntry.

Definition at line 109 of file acl.h.

Here is the call graph for this function:

◆ GetUuid()

const boost::uuids::uuid& AclDBEntry::GetUuid ( ) const
inline

Definition at line 112 of file acl.h.

◆ IsLess()

bool AclDBEntry::IsLess ( const DBEntry &  rhs) const
virtual

Implements DBEntry.

Definition at line 47 of file acl.cc.

◆ IsQosConfigResolved()

bool AclDBEntry::IsQosConfigResolved ( )

Definition at line 699 of file acl.cc.

Here is the call graph for this function:

◆ Isresolved()

bool AclDBEntry::Isresolved ( )

◆ IsRulePresent()

bool AclDBEntry::IsRulePresent ( const std::string &  uuid) const

Definition at line 937 of file acl.cc.

Here is the call graph for this function:

◆ PacketMatch()

bool AclDBEntry::PacketMatch ( const PacketHeader &  packet_header,
MatchAclParams &  m_acl,
FlowPolicyInfo *  info
) const

Definition at line 798 of file acl.cc.

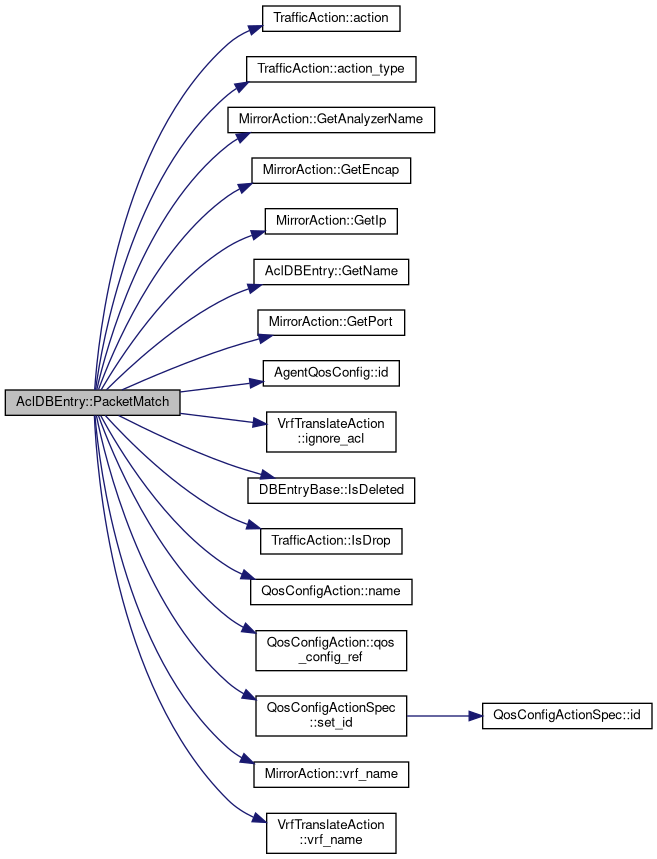

Here is the call graph for this function:

◆ ResyncQosConfigEntries()

bool AclDBEntry::ResyncQosConfigEntries ( )

Definition at line 712 of file acl.cc.

Here is the call graph for this function:

◆ SetAclEntries()

void AclDBEntry::SetAclEntries ( AclEntries &  entries)

Definition at line 687 of file acl.cc.

◆ SetAclSandeshData()

void AclDBEntry::SetAclSandeshData ( AclSandeshData &  data) const

Definition at line 89 of file acl.cc.

◆ SetDynamicAcl()

void AclDBEntry::SetDynamicAcl ( bool  dyn)
inline

Definition at line 125 of file acl.h.

◆ SetKey()

void AclDBEntry::SetKey ( const DBRequestKey *  key)
virtual

Implements DBEntry.

Definition at line 63 of file acl.cc.

◆ SetName()

void AclDBEntry::SetName ( const std::string  name)
inline

Definition at line 114 of file acl.h.

◆ Size()

uint32_t AclDBEntry::Size ( ) const
inline

Definition at line 123 of file acl.h.

◆ ToString()

std::string AclDBEntry::ToString ( ) const
virtual

Implements DBEntryBase.

Definition at line 52 of file acl.cc.

Friends And Related Function Documentation

◆ AclTable

friend class AclTable
friend

Definition at line 139 of file acl.h.

Member Data Documentation

◆ acl_entries_

AclEntries AclDBEntry::acl_entries_
private

Definition at line 143 of file acl.h.

◆ dynamic_acl_

bool AclDBEntry::dynamic_acl_
private

Definition at line 141 of file acl.h.

◆ name_

std::string AclDBEntry::name_
private

Definition at line 142 of file acl.h.

◆ uuid_

boost::uuids::uuid AclDBEntry::uuid_
private

Definition at line 140 of file acl.h.

The documentation for this class was generated from the following files:
