#include <rtarget_table.h>

Inheritance diagram for RTargetTable:

Collaboration diagram for RTargetTable:

Classes
struct	RequestKey

Public Member Functions
	RTargetTable (DB *db, const std::string &name)

virtual std::unique_ptr< DBEntry >	AllocEntry (const DBRequestKey *key) const

virtual std::unique_ptr< DBEntry >	AllocEntryStr (const std::string &key) const

virtual Address::Family	family () const

virtual size_t	Hash (const DBEntry *entry) const

virtual size_t	Hash (const DBRequestKey *key) const

virtual BgpRoute *	RouteReplicate (BgpServer server, BgpTable src_table, BgpRoute src_rt, const BgpPath path, ExtCommunityPtr ptr)

virtual bool	Export (RibOut ribout, Route route, const RibPeerSet &peerset, UpdateInfoSList &info_slist)

time_t	last_updated () const

Public Member Functions inherited from BgpTable
	BgpTable (DB *db, const std::string &name)

	~BgpTable ()

const RibOutMap &	ribout_map ()

RibOut *	RibOutFind (const RibExportPolicy &policy)

RibOut *	RibOutLocate (BgpUpdateSender *sender, const RibExportPolicy &policy)

void	RibOutDelete (const RibExportPolicy &policy)

virtual bool	IsVpnTable () const

virtual bool	IsRoutingPolicySupported () const

virtual bool	IsRouteAggregationSupported () const

void	CheckAggregatorAttr (BgpAttr *attr) const

void	CreateAsPath4Byte (BgpAttr *attr, as_t local_as) const

void	CreateAsPath2Byte (BgpAttr *attr) const

void	CreateAs4Path (BgpAttr *attr) const

bool	Has4ByteAsn (BgpAttr *attr) const

void	PrependAsToAsPath4Byte (BgpAttr *attr, as_t asn) const

void	PrependAsToAsPath2Byte (BgpAttr *attr, as_t asn) const

void	PrependAsToAsPath2Byte (BgpAttr *attr, as2_t asn) const

void	PrependAsToAs4Path (BgpAttr *attr, as_t asn) const

UpdateInfo *	GetUpdateInfo (RibOut ribout, BgpRoute route, const RibPeerSet &peerset)

void	ProcessDefaultTunnelEncapsulation (const RibOut ribout, ExtCommunityDB extcomm_db, BgpAttr *attr) const

virtual void	UpdateSecondaryTablesForReplication (BgpRoute rt, TableSet secondary_tables)

void	ManagedDelete ()

virtual void	RetryDelete ()

void	Shutdown ()

virtual bool	MayDelete () const

bool	IsDeleted () const

virtual PathResolver *	CreatePathResolver ()

void	LocatePathResolver ()

void	DestroyPathResolver ()

RoutingInstance *	routing_instance ()

const RoutingInstance *	routing_instance () const

virtual void	set_routing_instance (RoutingInstance *rtinstance)

BgpServer *	server ()

const BgpServer *	server () const

PathResolver *	path_resolver ()

const PathResolver *	path_resolver () const

LifetimeActor *	deleter ()

const LifetimeActor *	deleter () const

size_t	GetPendingRiboutsCount (size_t *markers) const

void	UpdatePathCount (const BgpPath *path, int count)

const uint64_t	GetPrimaryPathCount () const

const uint64_t	GetSecondaryPathCount () const

const uint64_t	GetInfeasiblePathCount () const

const uint64_t	GetStalePathCount () const

const uint64_t	GetLlgrStalePathCount () const

void	UpdateStalePathCount (int count)

void	UpdateLlgrStalePathCount (int count)

bool	IsAggregateRoute (const BgpRoute *route) const

bool	IsContributingRoute (const BgpRoute *route) const

bool	DeletePath (DBTablePartBase root, BgpRoute rt, BgpPath *path)

virtual void	Input (DBTablePartition root, DBClient client, DBRequest *req)

bool	InputCommon (DBTablePartBase root, BgpRoute rt, BgpPath path, const IPeer peer, DBRequest *req, DBRequest::DBOperation oper, BgpAttrPtr attrs, uint32_t path_id, uint32_t flags, uint32_t label, uint32_t l3_label)

void	InputCommonPostProcess (DBTablePartBase root, BgpRoute rt, bool notify_rt)

void	FillRibOutStatisticsInfo (std::vector< ShowRibOutStatistics > *sros_list) const

virtual BgpAttrPtr	GetAttributes (BgpRoute rt, BgpAttrPtr attrp, const IPeer peer)

Public Member Functions inherited from RouteTable
	RouteTable (DB *db, const std::string &name)

Public Member Functions inherited from DBTable
	DBTable (DB *db, const std::string &name)

virtual	~DBTable ()

void	Init ()

virtual DBTablePartition *	AllocPartition (int index)

virtual DBEntry *	Add (const DBRequest *req)

virtual bool	OnChange (DBEntry entry, const DBRequest req)

virtual bool	Delete (DBEntry entry, const DBRequest req)

void	NotifyAllEntries ()

DBEntry *	Find (const DBEntry *entry)

const DBEntry *	Find (const DBEntry *entry) const

DBEntry *	Find (const DBRequestKey *key, int id=-1)

const DBEntry *	Find (const DBRequestKey *key, int id=-1) const

DBEntry *	FindNoLock (const DBEntry *entry)

DBEntry *	FindNoLock (const DBRequestKey *key)

virtual DBTablePartBase *	GetTablePartition (const DBRequestKey *key)

virtual const DBTablePartBase *	GetTablePartition (const DBRequestKey *key) const

virtual DBTablePartBase *	GetTablePartition (const DBEntryBase *entry)

virtual const DBTablePartBase *	GetTablePartition (const DBEntryBase *entry) const

virtual DBTablePartBase *	GetTablePartition (const int index)

virtual const DBTablePartBase *	GetTablePartition (const int index) const

virtual void	Change (DBEntryBase *entry)

virtual int	PartitionCount () const

virtual size_t	Size () const

DBTableWalkRef	AllocWalker (WalkFn walk_fn, WalkCompleteFn walk_complete)

void	ReleaseWalker (DBTableWalkRef &walk)

void	WalkTable (DBTableWalkRef walk)

void	WalkAgain (DBTableWalkRef walk)

void	SetWalkIterationToYield (int count)

int	GetWalkIterationToYield ()

void	SetWalkTaskId (int task_id)

int	GetWalkerTaskId ()

Public Member Functions inherited from DBTableBase
	DBTableBase (DB *db, const std::string &name)

virtual	~DBTableBase ()

bool	Enqueue (DBRequest *req)

void	EnqueueRemove (DBEntryBase *db_entry)

ListenerId	Register (ChangeCallback callback, const std::string &name="unspecified")

void	Unregister (ListenerId listener)

void	RunNotify (DBTablePartBase tpart, DBEntryBase entry)

void	AddToDBStateCount (ListenerId listener, int count)

uint64_t	GetDBStateCount (ListenerId listener)

bool	empty () const

DB *	database ()

const DB *	database () const

const std::string &	name () const

bool	HasListeners () const

size_t	GetListenerCount () const

void	FillListeners (std::vector< ShowTableListener > *listeners) const

uint64_t	enqueue_count () const

void	incr_enqueue_count ()

void	reset_enqueue_count ()

uint64_t	input_count () const

void	incr_input_count ()

void	reset_input_count ()

uint64_t	notify_count () const

void	incr_notify_count ()

void	reset_notify_count ()

bool	HasWalkers () const

uint64_t	walker_count () const

void	incr_walker_count ()

uint64_t	decr_walker_count ()

uint64_t	walk_request_count () const

uint64_t	walk_complete_count () const

uint64_t	walk_cancel_count () const

uint64_t	walk_again_count () const

uint64_t	walk_count () const

void	incr_walk_request_count ()

void	incr_walk_complete_count ()

void	incr_walk_cancel_count ()

void	incr_walk_again_count ()

void	incr_walk_count ()

Static Public Member Functions
static DBTableBase *	CreateTable (DB *db, const std::string &name)

Static Public Member Functions inherited from BgpTable
static bool	PathSelection (const Path &path1, const Path &path2)

Static Public Member Functions inherited from DBTable
static void	DBStateClear (DBTable *table, ListenerId id)

Private Member Functions
virtual BgpRoute *	TableFind (DBTablePartition rtp, const DBRequestKey prefix)

void	AddRemoveCallback (const DBEntryBase *entry, bool add) const

	DISALLOW_COPY_AND_ASSIGN (RTargetTable)

Private Attributes
tbb::atomic< time_t >	last_updated_

Additional Inherited Members
Public Types inherited from BgpTable
typedef std::map < RibExportPolicy, RibOut * >	RibOutMap

typedef std::set< BgpTable * >	TableSet

Public Types inherited from DBTable
typedef boost::intrusive_ptr < DBTableWalk >	DBTableWalkRef

typedef boost::function< bool(DBTablePartBase , DBEntryBase )>	WalkFn

typedef boost::function< void(DBTableWalkRef, DBTableBase *)>	WalkCompleteFn

Public Types inherited from DBTableBase
typedef boost::function< void(DBTablePartBase , DBEntryBase )>	ChangeCallback

typedef int	ListenerId

Static Public Attributes inherited from DBTable
static const int	kIterationToYield = 256

Static Public Attributes inherited from DBTableBase
static const int	kInvalidId = -1

Detailed Description

Definition at line 18 of file rtarget_table.h.

Constructor & Destructor Documentation

RTargetTable::RTargetTable	(	DB *	db,
		const std::string &	name
	)

Definition at line 13 of file rtarget_table.cc.

Member Function Documentation

void RTargetTable::AddRemoveCallback	(	const DBEntryBase *	entry,
		bool	add
	)		const

privatevirtual

Reimplemented from DBTableBase.

Definition at line 64 of file rtarget_table.cc.

Here is the call graph for this function:

unique_ptr< DBEntry > RTargetTable::AllocEntry ( const DBRequestKey * key ) const

virtual

Implements DBTable.

Definition at line 17 of file rtarget_table.cc.

unique_ptr< DBEntry > RTargetTable::AllocEntryStr ( const std::string & key ) const

virtual

Implements BgpTable.

Definition at line 22 of file rtarget_table.cc.

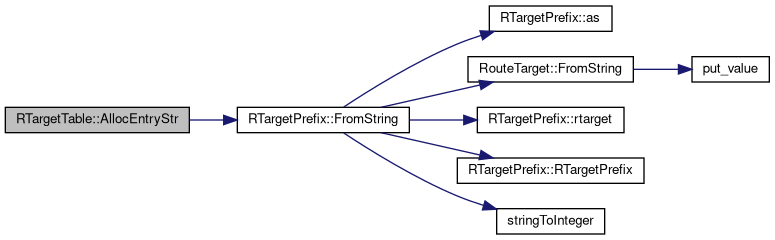

Here is the call graph for this function:

DBTableBase * RTargetTable::CreateTable	(	DB *	db,
		const std::string &	name
	)

static

Definition at line 42 of file rtarget_table.cc.

Here is the call graph for this function:

RTargetTable::DISALLOW_COPY_AND_ASSIGN ( RTargetTable )

private

bool RTargetTable::Export	(	RibOut *	ribout,
		Route *	route,
		const RibPeerSet &	peerset,
		UpdateInfoSList &	info_slist
	)

virtual

Implements BgpTable.

Definition at line 54 of file rtarget_table.cc.

Here is the call graph for this function:

virtual Address::Family RTargetTable::family ( ) const

inlinevirtual

Implements BgpTable.

Definition at line 34 of file rtarget_table.h.

size_t RTargetTable::Hash ( const DBEntry * entry ) const

virtual

Reimplemented from DBTable.

Definition at line 27 of file rtarget_table.cc.

size_t RTargetTable::Hash ( const DBRequestKey * key ) const

virtual

Reimplemented from DBTable.

Definition at line 31 of file rtarget_table.cc.

time_t RTargetTable::last_updated ( ) const

inline

Definition at line 47 of file rtarget_table.h.

BgpRoute * RTargetTable::RouteReplicate	(	BgpServer *	server,
		BgpTable *	src_table,
		BgpRoute *	src_rt,
		const BgpPath *	path,
		ExtCommunityPtr	ptr
	)

virtual

Implements BgpTable.

Definition at line 48 of file rtarget_table.cc.

BgpRoute * RTargetTable::TableFind	(	DBTablePartition *	rtp,
		const DBRequestKey *	prefix
	)

privatevirtual

Implements BgpTable.

Definition at line 35 of file rtarget_table.cc.

Here is the call graph for this function:

Member Data Documentation

tbb::atomic<time_t> RTargetTable::last_updated_

mutableprivate

Definition at line 54 of file rtarget_table.h.

The documentation for this class was generated from the following files:
