OpenSDN source code
Public Types | Public Member Functions | Private Member Functions | Private Attributes | List of all members
StaticRoute< T > Class Template Reference
Inheritance diagram for StaticRoute< T >:
Inheritance graph
[legend]
Collaboration diagram for StaticRoute< T >:
Collaboration graph
[legend]

Public Types

enum  CompareResult { NoChange = 0 , PrefixChange = 1 , NexthopChange = 2 , AttributeChange = 3 }

typedef T::RouteT RouteT

typedef T::VpnRouteT VpnRouteT

typedef T::PrefixT PrefixT

typedef T::AddressT AddressT

typedef StaticRouteMgr< T > StaticRouteMgrT

typedef set< RouteTarget > RouteTargetList

typedef set< uint32_t > NexthopPathIdList


Public Member Functions

 StaticRoute (RoutingInstance *rtinstance, StaticRouteMgrT *manager, const PrefixT &static_route, const StaticRouteConfig &config)

Address::Family GetFamily () const

AddressT GetAddress (IpAddress addr) const

CompareResult CompareConfig (const StaticRouteConfig &config)

void FillShowInfo (StaticRouteInfo *info) const

const PrefixT & prefix () const

const IpAddress & nexthop () const

RoutingInstance * routing_instance () const

BgpTable * bgp_table () const

BgpRoute * nexthop_route () const

NexthopPathIdList * NexthopPathIds ()

void set_nexthop_route (BgpRoute *nexthop_route)

const RouteTargetList & rtarget_list () const

void UpdateAttributes (const StaticRouteConfig &config)

void AddStaticRoute (NexthopPathIdList *list)

void UpdateStaticRoute ()

void RemoveStaticRoute ()

void NotifyRoute ()

bool IsPending () const

virtual bool Match (BgpServer *server, BgpTable *table, BgpRoute *route, bool deleted)

virtual string ToString () const

void set_unregistered ()

bool unregistered () const

- Public Member Functions inherited from ConditionMatch
 ConditionMatch ()

virtual ~ConditionMatch ()

bool deleted () const

void IncrementNumMatchstate ()

void DecrementNumMatchstate ()

uint32_t num_matchstate () const


Private Member Functions

bool is_nexthop_route (BgpRoute *route)

CommunityPtr GetCommunity (const StaticRouteConfig &config)

ExtCommunityPtr UpdateExtCommunity (const BgpAttr *attr) const

 DISALLOW_COPY_AND_ASSIGN (StaticRoute)


Private Attributes

RoutingInstance * routing_instance_

StaticRouteMgrT * manager_

PrefixT prefix_

IpAddress nexthop_

BgpRoute * nexthop_route_

NexthopPathIdList nexthop_path_ids_

RouteTargetList rtarget_list_

CommunityPtr community_

bool unregistered_


Detailed Description

template<typename T>
class StaticRoute< T >

Definition at line 50 of file static_route.cc.

Member Typedef Documentation

◆ AddressT

template<typename T >
typedef T::AddressT StaticRoute< T >::AddressT

Definition at line 55 of file static_route.cc.

◆ NexthopPathIdList

template<typename T >
typedef set<uint32_t> StaticRoute< T >::NexthopPathIdList

Definition at line 62 of file static_route.cc.

◆ PrefixT

template<typename T >
typedef T::PrefixT StaticRoute< T >::PrefixT

Definition at line 54 of file static_route.cc.

◆ RouteT

template<typename T >
typedef T::RouteT StaticRoute< T >::RouteT

Definition at line 52 of file static_route.cc.

◆ RouteTargetList

template<typename T >
typedef set<RouteTarget> StaticRoute< T >::RouteTargetList

Definition at line 59 of file static_route.cc.

◆ StaticRouteMgrT

template<typename T >
typedef StaticRouteMgr<T> StaticRoute< T >::StaticRouteMgrT

Definition at line 56 of file static_route.cc.

◆ VpnRouteT

template<typename T >
typedef T::VpnRouteT StaticRoute< T >::VpnRouteT

Definition at line 53 of file static_route.cc.

Member Enumeration Documentation

◆ CompareResult

template<typename T >
enum StaticRoute::CompareResult
Enumerator
NoChange
PrefixChange
NexthopChange
AttributeChange

Definition at line 64 of file static_route.cc.

Constructor & Destructor Documentation

◆ StaticRoute()

template<typename T >
StaticRoute< T >::StaticRoute ( RoutingInstance *  rtinstance,
StaticRouteMgrT *  manager,
const PrefixT &  static_route,
const StaticRouteConfig &  config
)

Definition at line 180 of file static_route.cc.

Here is the call graph for this function:

Member Function Documentation

◆ AddStaticRoute()

template<typename T >
void StaticRoute< T >::AddStaticRoute ( NexthopPathIdList *  list)

Definition at line 462 of file static_route.cc.

Here is the call graph for this function:

◆ bgp_table()

template<typename T >
BgpTable* StaticRoute< T >::bgp_table ( ) const
inline

Definition at line 93 of file static_route.cc.

Here is the call graph for this function:

◆ CompareConfig()

template<typename T >
StaticRoute< T >::CompareResult StaticRoute< T >::CompareConfig ( const StaticRouteConfig &  config)

Definition at line 197 of file static_route.cc.

Here is the call graph for this function:

◆ DISALLOW_COPY_AND_ASSIGN()

template<typename T >
StaticRoute< T >::DISALLOW_COPY_AND_ASSIGN ( StaticRoute< T >  )
private

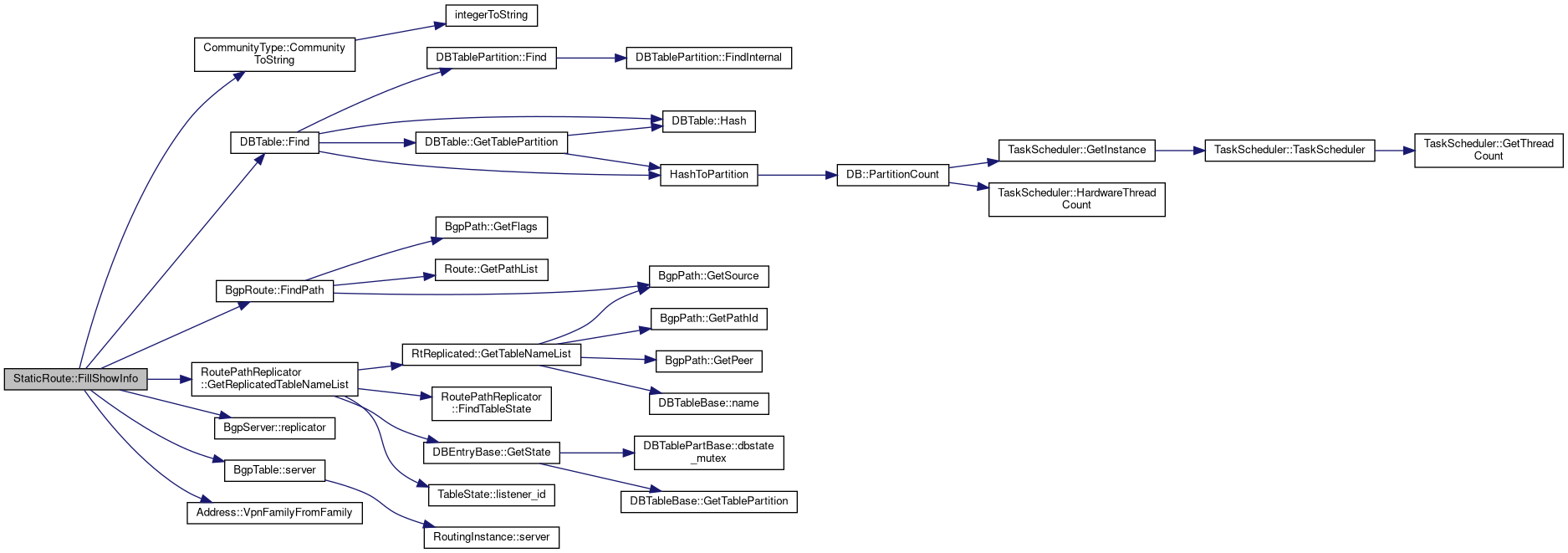

◆ FillShowInfo()

template<typename T >
void StaticRoute< T >::FillShowInfo ( StaticRouteInfo *  info) const

Definition at line 226 of file static_route.cc.

Here is the call graph for this function:

◆ GetAddress()

template<typename T >
AddressT StaticRoute< T >::GetAddress ( IpAddress  addr) const
inline

Definition at line 74 of file static_route.cc.

Here is the call graph for this function:

◆ GetCommunity()

template<typename T >
CommunityPtr StaticRoute< T >::GetCommunity ( const StaticRouteConfig &  config)
private

Definition at line 320 of file static_route.cc.

Here is the call graph for this function:

◆ GetFamily()

template<typename T >
Address::Family StaticRoute< T >::GetFamily ( ) const
inline

Definition at line 73 of file static_route.cc.

Here is the call graph for this function:

◆ is_nexthop_route()

template<typename T >
bool StaticRoute< T >::is_nexthop_route ( BgpRoute *  route)
inlineprivate

Definition at line 158 of file static_route.cc.

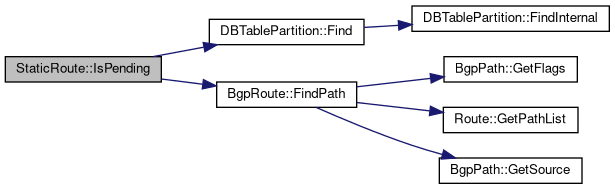

◆ IsPending()

template<typename T >
bool StaticRoute< T >::IsPending

Definition at line 584 of file static_route.cc.

Here is the call graph for this function:

◆ Match()

template<typename T >
bool StaticRoute< T >::Match ( BgpServer *  server,
BgpTable *  table,
BgpRoute *  route,
bool  deleted
)
virtual

Implements ConditionMatch.

Definition at line 265 of file static_route.cc.

Here is the call graph for this function:

◆ nexthop()

template<typename T >
const IpAddress& StaticRoute< T >::nexthop ( ) const
inline

Definition at line 85 of file static_route.cc.

◆ nexthop_route()

template<typename T >
BgpRoute* StaticRoute< T >::nexthop_route ( ) const
inline

Definition at line 97 of file static_route.cc.

◆ NexthopPathIds()

template<typename T >
NexthopPathIdList* StaticRoute< T >::NexthopPathIds ( )
inline

Definition at line 101 of file static_route.cc.

◆ NotifyRoute()

template<typename T >
void StaticRoute< T >::NotifyRoute

Definition at line 573 of file static_route.cc.

Here is the call graph for this function:

◆ prefix()

template<typename T >
const PrefixT& StaticRoute< T >::prefix ( ) const
inline

Definition at line 81 of file static_route.cc.

◆ RemoveStaticRoute()

template<typename T >
void StaticRoute< T >::RemoveStaticRoute

Definition at line 391 of file static_route.cc.

Here is the call graph for this function:

◆ routing_instance()

template<typename T >
RoutingInstance* StaticRoute< T >::routing_instance ( ) const
inline

Definition at line 89 of file static_route.cc.

◆ rtarget_list()

template<typename T >
const RouteTargetList& StaticRoute< T >::rtarget_list ( ) const
inline

Definition at line 130 of file static_route.cc.

◆ set_nexthop_route()

template<typename T >
void StaticRoute< T >::set_nexthop_route ( BgpRoute *  nexthop_route)
inline

Definition at line 103 of file static_route.cc.

Here is the call graph for this function:

◆ set_unregistered()

template<typename T >
void StaticRoute< T >::set_unregistered ( )
inline

Definition at line 148 of file static_route.cc.

◆ ToString()

template<typename T >
virtual string StaticRoute< T >::ToString ( ) const
inlinevirtual

Implements ConditionMatch.

Definition at line 144 of file static_route.cc.

◆ unregistered()

template<typename T >
bool StaticRoute< T >::unregistered ( ) const
inline

Definition at line 152 of file static_route.cc.

◆ UpdateAttributes()

template<typename T >
void StaticRoute< T >::UpdateAttributes ( const StaticRouteConfig &  config)

Definition at line 376 of file static_route.cc.

Here is the call graph for this function:

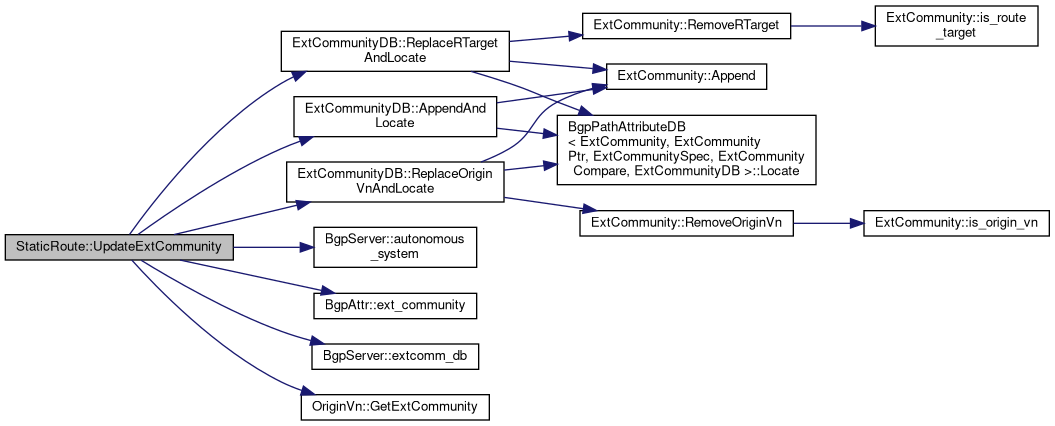

◆ UpdateExtCommunity()

template<typename T >
ExtCommunityPtr StaticRoute< T >::UpdateExtCommunity ( const BgpAttr *  attr) const
private

Definition at line 344 of file static_route.cc.

Here is the call graph for this function:

◆ UpdateStaticRoute()

template<typename T >
void StaticRoute< T >::UpdateStaticRoute

Definition at line 418 of file static_route.cc.

Here is the call graph for this function:

Member Data Documentation

◆ community_

template<typename T >
CommunityPtr StaticRoute< T >::community_
private

Definition at line 173 of file static_route.cc.

◆ manager_

template<typename T >
StaticRouteMgrT* StaticRoute< T >::manager_
private

Definition at line 167 of file static_route.cc.

◆ nexthop_

template<typename T >
IpAddress StaticRoute< T >::nexthop_
private

Definition at line 169 of file static_route.cc.

◆ nexthop_path_ids_

template<typename T >
NexthopPathIdList StaticRoute< T >::nexthop_path_ids_
private

Definition at line 171 of file static_route.cc.

◆ nexthop_route_

template<typename T >
BgpRoute* StaticRoute< T >::nexthop_route_
private

Definition at line 170 of file static_route.cc.

◆ prefix_

template<typename T >
PrefixT StaticRoute< T >::prefix_
private

Definition at line 168 of file static_route.cc.

◆ routing_instance_

template<typename T >
RoutingInstance* StaticRoute< T >::routing_instance_
private

Definition at line 166 of file static_route.cc.

◆ rtarget_list_

template<typename T >
RouteTargetList StaticRoute< T >::rtarget_list_
private

Definition at line 172 of file static_route.cc.

◆ unregistered_

template<typename T >
bool StaticRoute< T >::unregistered_
private

Definition at line 174 of file static_route.cc.

The documentation for this class was generated from the following file:
