UpdateExtCommunity Class Reference

#include <routing_policy_action.h>

Inheritance diagram for UpdateExtCommunity:

Collaboration diagram for UpdateExtCommunity:

Public Types
enum	CommunityUpdateOp { ADD , REMOVE , SET }

Public Member Functions
	UpdateExtCommunity (const std::vector< std::string > &communities, std::string op)
virtual	~UpdateExtCommunity ()
virtual void	operator() (BgpAttr *out_attr) const
std::string	ToString () const
virtual bool	IsEqual (const RoutingPolicyAction &community) const
const ExtCommunity::ExtCommunityList &	communities () const
Public Member Functions inherited from RoutingPolicyUpdateAction
virtual	~RoutingPolicyUpdateAction ()
bool	terminal () const
bool	accept () const
Public Member Functions inherited from RoutingPolicyAction
virtual	~RoutingPolicyAction ()
virtual bool	operator== (const RoutingPolicyAction &action) const
virtual bool	operator!= (const RoutingPolicyAction &action) const

Private Attributes
ExtCommunity::ExtCommunityList	communities_
CommunityUpdateOp	op_

Detailed Description

Definition at line 118 of file routing_policy_action.h.

Member Enumeration Documentation

CommunityUpdateOp

enum UpdateExtCommunity::CommunityUpdateOp

Enumerator
ADD
REMOVE
SET

Definition at line 120 of file routing_policy_action.h.

Constructor & Destructor Documentation

UpdateExtCommunity()

UpdateExtCommunity::UpdateExtCommunity	(	const std::vector< std::string > &	communities,
		std::string	op
	)

Definition at line 135 of file routing_policy_action.cc.

Here is the call graph for this function:

~UpdateExtCommunity()

virtual UpdateExtCommunity::~UpdateExtCommunity ( )

inlinevirtual

Definition at line 127 of file routing_policy_action.h.

Member Function Documentation

communities()

const ExtCommunity::ExtCommunityList& UpdateExtCommunity::communities ( ) const

inline

Definition at line 131 of file routing_policy_action.h.

IsEqual()

bool UpdateExtCommunity::IsEqual ( const RoutingPolicyAction &  community ) const

virtual

Implements RoutingPolicyAction.

Definition at line 189 of file routing_policy_action.cc.

Here is the call graph for this function:

operator()()

void UpdateExtCommunity::operator() ( BgpAttr *  out_attr ) const

virtual

Implements RoutingPolicyUpdateAction.

Definition at line 157 of file routing_policy_action.cc.

Here is the call graph for this function:

ToString()

string UpdateExtCommunity::ToString ( ) const

virtual

Implements RoutingPolicyAction.

Definition at line 174 of file routing_policy_action.cc.

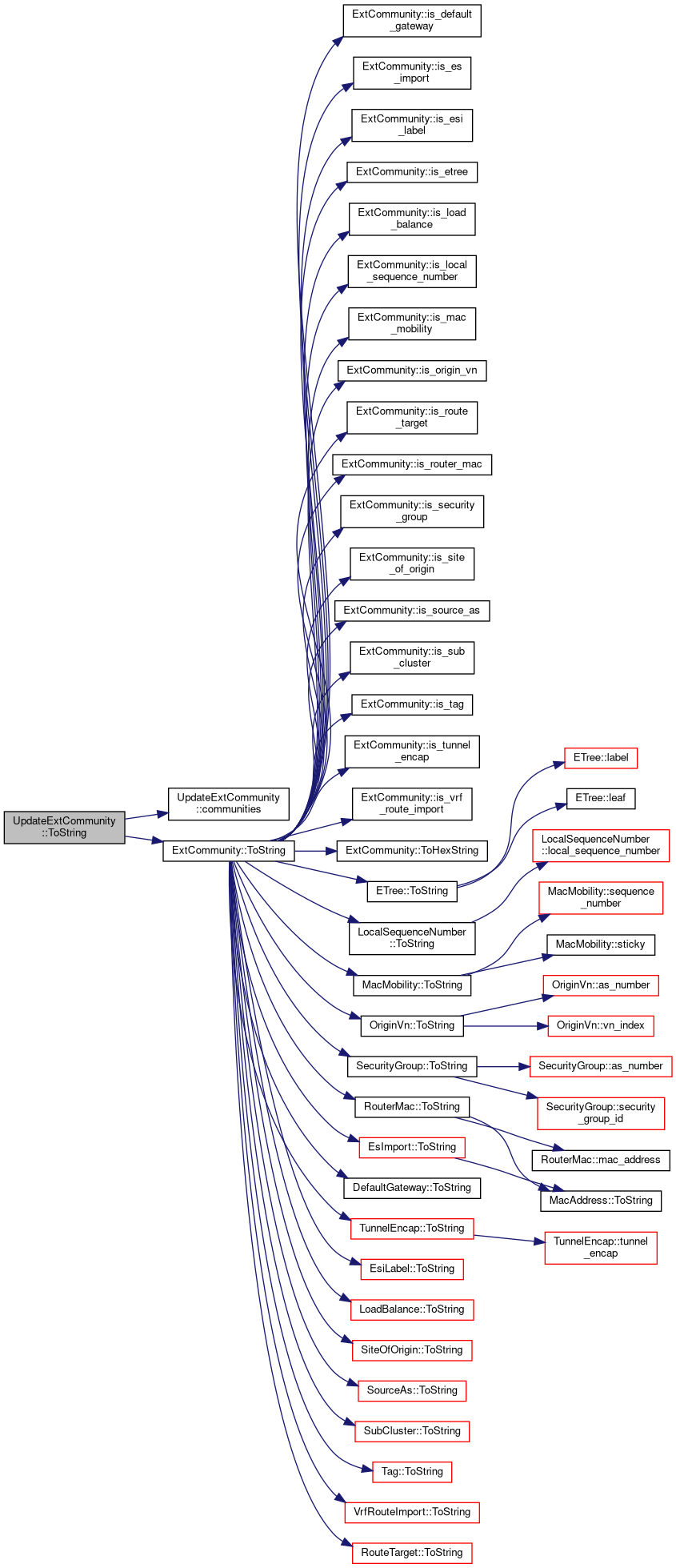

Here is the call graph for this function:

Member Data Documentation

communities_

ExtCommunity::ExtCommunityList UpdateExtCommunity::communities_

private

Definition at line 136 of file routing_policy_action.h.

op_

CommunityUpdateOp UpdateExtCommunity::op_

private

Definition at line 137 of file routing_policy_action.h.

---

The documentation for this class was generated from the following files:

• routing_policy_action.h
• routing_policy_action.cc
