#include <inet4_multicast_route.h>

Inheritance diagram for Inet4MulticastRouteEntry:

Collaboration diagram for Inet4MulticastRouteEntry:

Public Member Functions
	Inet4MulticastRouteEntry (VrfEntry *vrf, const Ip4Address &dst, const Ip4Address &src)

virtual	~Inet4MulticastRouteEntry ()

virtual int	CompareTo (const Route &rhs) const

virtual string	ToString () const

virtual KeyPtr	GetDBRequestKey () const

virtual void	SetKey (const DBRequestKey *key)

virtual bool	ReComputePathAdd (AgentPath *path)

virtual bool	ReComputePathDeletion (AgentPath *path)

virtual const string	GetAddressString () const

virtual const string	GetSourceAddressString () const

virtual bool	DBEntrySandesh (Sandesh *sresp, bool stale) const

virtual Agent::RouteTableType	GetTableType () const

bool	DBEntrySandesh (Sandesh *sresp, const Ip4Address &src_addr, const Ip4Address &dst_addr, bool stale) const

void	set_dest_ip_addr (const Ip4Address &dst)

void	set_src_ip_addr (const Ip4Address &src)

const Ip4Address &	src_ip_addr () const

const Ip4Address &	dest_ip_addr () const

virtual Composite::Type	GetMulticastCompType ()

Public Member Functions inherited from AgentRoute
	AgentRoute (VrfEntry *vrf, bool is_multicast, const std::string &intf_route_type="interface")

virtual	~AgentRoute ()

virtual bool	IsLess (const DBEntry &rhs) const

virtual uint32_t	GetActiveLabel () const

virtual AgentPath *	FindPathUsingKeyData (const AgentRouteKey key, const AgentRouteData data) const

virtual AgentPath *	FindPath (const Peer *peer) const

virtual bool	RecomputeRoutePath (Agent agent, DBTablePartition part, AgentPath path, AgentRouteData data)

virtual void	UpdateDerivedRoutes (AgentRouteTable table, const AgentPath path, bool active_path_changed)

virtual void	DeleteDerivedRoutes (AgentRouteTable *table)

bool	is_multicast () const

VrfEntry *	vrf () const

uint32_t	vrf_id () const

const std::string &	intf_route_type () const

void	set_intf_route_type (const std::string &intf_route_type)

AgentPath *	FindLocalPath () const

AgentPath *	FindLocalVmPortPath () const

const AgentPath *	FindIntfOrCompLocalVmPortPath () const
	Finds path to an interface or a composite of interfaces and returns it. The priority is given to composite: if both an interface and a composite are present, then the composite path is returned. More...

AgentPath *	GetLocalVmPortPath () const

const AgentPath *	GetActivePath () const

const NextHop *	GetActiveNextHop () const

const std::string &	dest_vn_name () const

bool	IsRPFInvalid () const

void	EnqueueRouteResync () const

void	ResyncTunnelNextHop ()

bool	HasUnresolvedPath ()

bool	Sync (void)

void	UpdateDependantRoutes ()

bool	IsDependantRouteEmpty ()

bool	IsTunnelNHListEmpty ()

void	FillTrace (RouteInfo &route, Trace event, const AgentPath *path) const

bool	WaitForTraffic () const

bool	DeleteAllBgpPath (DBTablePartBase part, AgentRouteTable table)

void	DeletePathFromPeer (DBTablePartBase part, AgentRouteTable table, AgentPath *path)

bool	SubOpResyncInput (VrfEntry vrf, AgentRouteTable table, AgentPath *path_ptr, AgentRouteKey key, AgentRouteData *data)

bool	SubOpAddChangeInput (VrfEntry vrf, AgentRouteTable table, AgentPath *path_ptr, AgentRouteKey key, AgentRouteData *data, bool route_added)

void	DeleteInput (DBTablePartition part, AgentRouteTable table, AgentRouteKey key, AgentRouteData data)

void	AddUnresolvedRouteToTable (AgentRouteTable *table)

void	RemoveUnresolvedRouteFromTable (AgentRouteTable *table)

virtual uint8_t	prefix_length () const
	Returns the length of a stored prefix address. More...

Public Member Functions inherited from Route
	Route ()

virtual	~Route ()

bool	operator< (const Route &rhs) const

const Path *	front () const

void	insert (const Path *path)

void	remove (const Path *path)

void	Sort (Compare compare, const Path *prev_front)

const PathList &	GetPathList () const

PathList &	GetPathList ()

Public Member Functions inherited from DBEntry
	DBEntry ()

virtual	~DBEntry ()

bool	operator< (const DBEntry &rhs) const

Public Member Functions inherited from DBEntryBase
	DBEntryBase ()

virtual	~DBEntryBase ()

virtual bool	IsMoreSpecific (const std::string &match) const

virtual bool	IsLessSpecific (const std::string &match) const

void	SetState (DBTableBase tbl_base, ListenerId listener, DBState state)

void	ClearState (DBTableBase *tbl_base, ListenerId listener)

DBState *	GetState (DBTableBase *tbl_base, ListenerId listener) const

const DBState *	GetState (const DBTableBase *tbl_base, ListenerId listener) const

bool	is_state_empty (DBTablePartBase *tpart)

bool	is_state_empty_unlocked (DBTablePartBase *tpart)

void	Delete ()

void	MarkDelete ()

void	ClearDelete ()

bool	IsDeleted () const

void	set_onlist ()

void	clear_onlist ()

bool	is_onlist ()

void	SetOnRemoveQ ()

bool	IsOnRemoveQ ()

void	ClearOnRemoveQ ()

void	set_last_change_at (uint64_t time)

void	set_last_change_at_to_now ()

const uint64_t	last_change_at () const

const std::string	last_change_at_str () const

void	set_last_update_at (uint64_t time)

void	set_last_update_at_to_now ()

const uint64_t	last_update_at () const

DBTablePartBase *	get_table_partition () const

void	set_table_partition (DBTablePartBase *tpart)

DBTableBase *	get_table () const

void	Notify ()

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (Inet4MulticastRouteEntry)

Private Attributes
Ip4Address	dst_addr_

Ip4Address	src_addr_

Additional Inherited Members
Public Types inherited from AgentRoute
enum	Trace { ADD, DEL, ADD_PATH, DELETE_PATH, CHANGE_PATH, STALE_PATH }

typedef DependencyList < AgentRoute, AgentRoute >	RouteDependencyList

typedef DependencyList < NextHop, AgentRoute >	TunnelNhDependencyList

Public Types inherited from Route
typedef boost::intrusive::member_hook < Path, boost::intrusive::list_member_hook <>,&Path::node_ >	PathListMember

typedef boost::intrusive::list < Path, PathListMember >	PathList

typedef bool(*	Compare )(const Path &path1, const Path &path2)

Public Types inherited from DBEntryBase
typedef DBTableBase::ListenerId	ListenerId

typedef std::unique_ptr < DBRequestKey >	KeyPtr

Public Attributes inherited from DBEntryBase
boost::intrusive::list_member_hook	chg_list_

Protected Member Functions inherited from AgentRoute
void	SetVrf (VrfEntry *vrf)

void	RemovePath (AgentPath *path)

void	InsertPath (const AgentPath *path)

virtual void	HandleMulticastLabel (const Agent agent, AgentPath path, const AgentPath local_peer_path, const AgentPath local_vm_peer_path, bool del, uint32_t *evpn_label)

virtual bool	ReComputeMulticastPaths (AgentPath *path, bool del)

virtual void	HandleDeviceMastershipUpdate (AgentPath *path, bool del)

const AgentRouteTable *	GetDependentRouteTable (void) const

virtual bool	ValidateMcastSrc () const

Detailed Description

Definition at line 62 of file inet4_multicast_route.h.

Constructor & Destructor Documentation

Inet4MulticastRouteEntry::Inet4MulticastRouteEntry	(	VrfEntry *	vrf,
		const Ip4Address &	dst,
		const Ip4Address &	src
	)

inline

Definition at line 64 of file inet4_multicast_route.h.

virtual Inet4MulticastRouteEntry::~Inet4MulticastRouteEntry ( )

inlinevirtual

Definition at line 68 of file inet4_multicast_route.h.

Member Function Documentation

int Inet4MulticastRouteEntry::CompareTo ( const Route & rhs ) const

virtual

Implements AgentRoute.

Definition at line 212 of file inet4_multicast_route.cc.

bool Inet4MulticastRouteEntry::DBEntrySandesh	(	Sandesh *	sresp,
		bool	stale
	)		const

virtual

Implements AgentRoute.

Definition at line 256 of file inet4_multicast_route.cc.

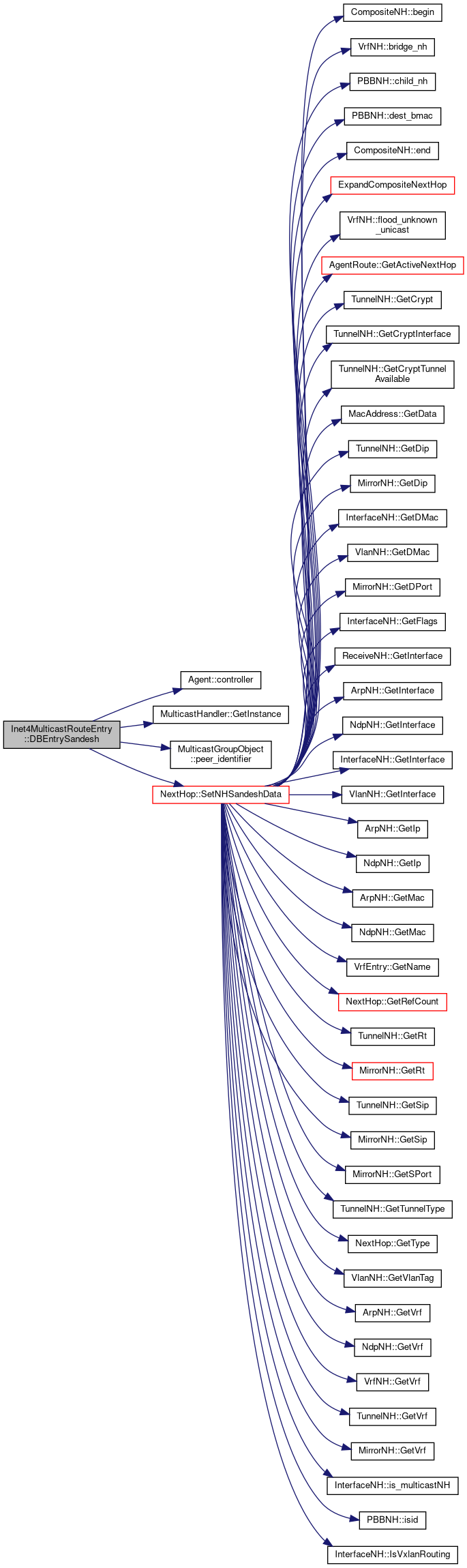

Here is the call graph for this function:

bool Inet4MulticastRouteEntry::DBEntrySandesh	(	Sandesh *	sresp,
		const Ip4Address &	src_addr,
		const Ip4Address &	dst_addr,
		bool	stale
	)		const

Definition at line 277 of file inet4_multicast_route.cc.

const Ip4Address& Inet4MulticastRouteEntry::dest_ip_addr ( ) const

inline

Definition at line 92 of file inet4_multicast_route.h.

Inet4MulticastRouteEntry::DISALLOW_COPY_AND_ASSIGN ( Inet4MulticastRouteEntry )

private

virtual const string Inet4MulticastRouteEntry::GetAddressString ( ) const

inlinevirtual

Implements AgentRoute.

Definition at line 76 of file inet4_multicast_route.h.

DBEntryBase::KeyPtr Inet4MulticastRouteEntry::GetDBRequestKey ( ) const

virtual

Implements AgentRoute.

Definition at line 231 of file inet4_multicast_route.cc.

virtual Composite::Type Inet4MulticastRouteEntry::GetMulticastCompType ( )

inlinevirtual

Reimplemented from AgentRoute.

Definition at line 93 of file inet4_multicast_route.h.

virtual const string Inet4MulticastRouteEntry::GetSourceAddressString ( ) const

inlinevirtual

Implements AgentRoute.

Definition at line 79 of file inet4_multicast_route.h.

virtual Agent::RouteTableType Inet4MulticastRouteEntry::GetTableType ( ) const

inlinevirtual

Implements AgentRoute.

Definition at line 83 of file inet4_multicast_route.h.

bool Inet4MulticastRouteEntry::ReComputePathAdd ( AgentPath * path )

virtual

Reimplemented from AgentRoute.

Definition at line 248 of file inet4_multicast_route.cc.

bool Inet4MulticastRouteEntry::ReComputePathDeletion ( AgentPath * path )

virtual

Reimplemented from AgentRoute.

Definition at line 252 of file inet4_multicast_route.cc.

void Inet4MulticastRouteEntry::set_dest_ip_addr ( const Ip4Address & dst )

inline

Definition at line 89 of file inet4_multicast_route.h.

void Inet4MulticastRouteEntry::set_src_ip_addr ( const Ip4Address & src )

inline

Definition at line 90 of file inet4_multicast_route.h.

void Inet4MulticastRouteEntry::SetKey ( const DBRequestKey * key )

virtual

Implements AgentRoute.

Definition at line 238 of file inet4_multicast_route.cc.

Here is the call graph for this function:

const Ip4Address& Inet4MulticastRouteEntry::src_ip_addr ( ) const

inline

Definition at line 91 of file inet4_multicast_route.h.

string Inet4MulticastRouteEntry::ToString ( ) const

virtual

Implements AgentRoute.

Definition at line 203 of file inet4_multicast_route.cc.

Member Data Documentation

Ip4Address Inet4MulticastRouteEntry::dst_addr_

private

Definition at line 96 of file inet4_multicast_route.h.

Ip4Address Inet4MulticastRouteEntry::src_addr_

private

Definition at line 97 of file inet4_multicast_route.h.
