MatchProtocol Class Reference

#include <routing_policy_match.h>

Inheritance diagram for MatchProtocol:

Collaboration diagram for MatchProtocol:

Public Types
enum	MatchProtocolType {   Unspecified = 0, BGP, XMPP, StaticRoute,   ServiceChainRoute, AggregateRoute, Interface, InterfaceStatic,   ServiceInterface, BGPaaS }
typedef std::vector < MatchProtocolType >	PathSourceList

Public Member Functions
	MatchProtocol (const std::vector< std::string > &protocols)
virtual	~MatchProtocol ()
virtual bool	Match (const BgpRoute *route, const BgpPath *path, const BgpAttr *attr) const
virtual std::string	ToString () const
virtual bool	IsEqual (const RoutingPolicyMatch &community) const
const PathSourceList &	protocols () const
Public Member Functions inherited from RoutingPolicyMatch
virtual	~RoutingPolicyMatch ()
bool	operator() (const BgpRoute *route, const BgpPath *path, const BgpAttr *attr) const
virtual bool	operator== (const RoutingPolicyMatch &match) const
virtual bool	operator!= (const RoutingPolicyMatch &match) const

Private Attributes
PathSourceList	to_match_

Detailed Description

Definition at line 111 of file routing_policy_match.h.

Member Typedef Documentation

typedef std::vector<MatchProtocolType> MatchProtocol::PathSourceList

Definition at line 125 of file routing_policy_match.h.

Member Enumeration Documentation

enum MatchProtocol::MatchProtocolType

Enumerator
Unspecified
BGP
XMPP
StaticRoute
ServiceChainRoute
AggregateRoute
Interface
InterfaceStatic
ServiceInterface
BGPaaS

Definition at line 113 of file routing_policy_match.h.

Constructor & Destructor Documentation

MatchProtocol::MatchProtocol ( const std::vector< std::string > &  protocols )

explicit

Definition at line 514 of file routing_policy_match.cc.

Here is the call graph for this function:

MatchProtocol::~MatchProtocol ( )

virtual

Definition at line 530 of file routing_policy_match.cc.

Member Function Documentation

bool MatchProtocol::IsEqual ( const RoutingPolicyMatch &  community ) const

virtual

Implements RoutingPolicyMatch.

Definition at line 577 of file routing_policy_match.cc.

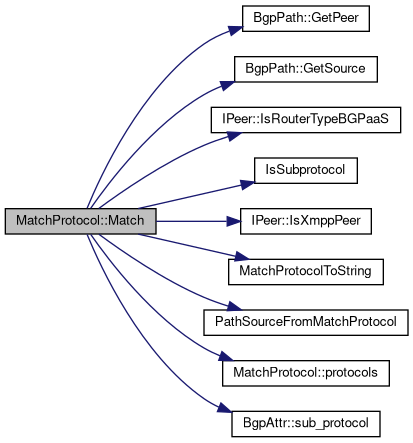

Here is the call graph for this function:

bool MatchProtocol::Match ( const BgpRoute *  route, const BgpPath *  path, const BgpAttr *  attr  ) const

virtual

Implements RoutingPolicyMatch.

Definition at line 533 of file routing_policy_match.cc.

Here is the call graph for this function:

const PathSourceList& MatchProtocol::protocols ( ) const

inline

Definition at line 132 of file routing_policy_match.h.

string MatchProtocol::ToString ( ) const

virtual

Implements RoutingPolicyMatch.

Definition at line 565 of file routing_policy_match.cc.

Here is the call graph for this function:

Member Data Documentation

PathSourceList MatchProtocol::to_match_

private

Definition at line 137 of file routing_policy_match.h.

---

The documentation for this class was generated from the following files:

• routing_policy_match.h
• routing_policy_match.cc
