#include <bgp_mvpn.h>

Collaboration diagram for MvpnManager:

[legend]

Classes
class	DeleteActor

Public Types
typedef std::vector< MvpnManagerPartition * >	PartitionList

typedef PartitionList::const_iterator	const_iterator

typedef std::map< RouteDistinguisher, MvpnNeighbor >	NeighborMap

Public Member Functions
	MvpnManager (MvpnTable table, ErmVpnTable ermvpn_table)

virtual	~MvpnManager ()

bool	FindNeighbor (const RouteDistinguisher &rd, MvpnNeighbor *nbr) const

MvpnProjectManager *	GetProjectManager ()

void	ManagedDelete ()

BgpRoute *	RouteReplicate (BgpServer server, BgpTable src_table, BgpRoute source_rt, const BgpPath src_path, ExtCommunityPtr comm)

void	ResolvePath (RoutingInstance rtinstance, BgpRoute rt, BgpPath *path)

MvpnTable *	table ()

const MvpnTable *	table () const

int	listener_id () const

virtual void	Terminate ()

virtual void	Initialize ()

size_t	neighbors_count () const

const NeighborMap &	neighbors () const

void	ReOriginateType1Route (const Ip4Address &old_identifier)

void	OriginateType1Route ()

bool	MayDelete () const

const LifetimeActor *	deleter () const

bool	deleted () const

LifetimeActor *	deleter ()

virtual void	UpdateSecondaryTablesForReplication (MvpnRoute rt, BgpTable::TableSet secondary_tables) const

tbb::reader_writer_lock &	neighbors_mutex ()

Private Member Functions
void	AllocPartitions ()

void	FreePartitions ()

void	ProcessType1ADRoute (MvpnRoute *route)

void	RouteListener (DBTablePartBase tpart, DBEntryBase db_entry)

bool	FindResolvedNeighbor (const BgpPath path, MvpnNeighbor neighbor) const

void	SetDBState (MvpnRoute route, MvpnDBState mvpn_dbstate)

void	ClearDBState (MvpnRoute *route)

	DISALLOW_COPY_AND_ASSIGN (MvpnManager)

Private Attributes
MvpnTable *	table_

ErmVpnTable *	ermvpn_table_

int	listener_id_

int	identifier_listener_id_

tbb::atomic< int >	db_states_count_

PartitionList	partitions_

NeighborMap	neighbors_

tbb::reader_writer_lock	neighbors_mutex_

boost::scoped_ptr< DeleteActor >	deleter_

LifetimeRef< MvpnManager >	table_delete_ref_

LifetimeRef< MvpnManager >	ermvpn_table_delete_ref_

Friends
class	MvpnManagerPartition

Detailed Description

Definition at line 157 of file bgp_mvpn.h.

Member Typedef Documentation

◆ const_iterator

typedef PartitionList::const_iterator MvpnManager::const_iterator

Definition at line 160 of file bgp_mvpn.h.

◆ NeighborMap

typedef std::map<RouteDistinguisher, MvpnNeighbor> MvpnManager::NeighborMap

Definition at line 161 of file bgp_mvpn.h.

◆ PartitionList

typedef std::vector<MvpnManagerPartition *> MvpnManager::PartitionList

Definition at line 159 of file bgp_mvpn.h.

Constructor & Destructor Documentation

◆ MvpnManager()

MvpnManager::MvpnManager	(	MvpnTable *	table,
		ErmVpnTable *	ermvpn_table
	)

Definition at line 397 of file bgp_mvpn.cc.

◆ ~MvpnManager()

MvpnManager::~MvpnManager ( )

virtual

Definition at line 408 of file bgp_mvpn.cc.

Member Function Documentation

◆ AllocPartitions()

void MvpnManager::AllocPartitions ( )

private

Definition at line 458 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ ClearDBState()

void MvpnManager::ClearDBState ( MvpnRoute * route )

private

Definition at line 488 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ deleted()

bool MvpnManager::deleted ( ) const

Definition at line 423 of file bgp_mvpn.cc.

◆ deleter() [1/2]

LifetimeActor* MvpnManager::deleter ( )

◆ deleter() [2/2]

const LifetimeActor * MvpnManager::deleter ( ) const

Definition at line 427 of file bgp_mvpn.cc.

◆ DISALLOW_COPY_AND_ASSIGN()

MvpnManager::DISALLOW_COPY_AND_ASSIGN ( MvpnManager )

private

◆ FindNeighbor()

bool MvpnManager::FindNeighbor	(	const RouteDistinguisher &	rd,
		MvpnNeighbor *	nbr
	)		const

Definition at line 239 of file bgp_mvpn.cc.

◆ FindResolvedNeighbor()

bool MvpnManager::FindResolvedNeighbor	(	const BgpPath *	path,
		MvpnNeighbor *	neighbor
	)		const

private

◆ FreePartitions()

void MvpnManager::FreePartitions ( )

private

Definition at line 463 of file bgp_mvpn.cc.

◆ GetProjectManager()

MvpnProjectManager * MvpnManager::GetProjectManager ( )

Definition at line 525 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ Initialize()

void MvpnManager::Initialize ( )

virtual

Definition at line 606 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ listener_id()

int MvpnManager::listener_id ( ) const

Definition at line 419 of file bgp_mvpn.cc.

◆ ManagedDelete()

void MvpnManager::ManagedDelete ( )

Definition at line 454 of file bgp_mvpn.cc.

◆ MayDelete()

bool MvpnManager::MayDelete ( ) const

Definition at line 471 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ neighbors()

const MvpnManager::NeighborMap & MvpnManager::neighbors ( ) const

Definition at line 250 of file bgp_mvpn.cc.

◆ neighbors_count()

size_t MvpnManager::neighbors_count ( ) const

Definition at line 256 of file bgp_mvpn.cc.

◆ neighbors_mutex()

tbb::reader_writer_lock& MvpnManager::neighbors_mutex ( )

inline

Definition at line 186 of file bgp_mvpn.h.

◆ OriginateType1Route()

void MvpnManager::OriginateType1Route ( )

Definition at line 638 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ ProcessType1ADRoute()

void MvpnManager::ProcessType1ADRoute ( MvpnRoute * route )

private

Definition at line 705 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ ReOriginateType1Route()

void MvpnManager::ReOriginateType1Route ( const Ip4Address & old_identifier )

Definition at line 625 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ ResolvePath()

void MvpnManager::ResolvePath	(	RoutingInstance *	rtinstance,
		BgpRoute *	rt,
		BgpPath *	path
	)

◆ RouteListener()

void MvpnManager::RouteListener	(	DBTablePartBase *	tpart,
		DBEntryBase *	db_entry
	)

private

Definition at line 660 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ RouteReplicate()

BgpRoute* MvpnManager::RouteReplicate	(	BgpServer *	server,
		BgpTable *	src_table,
		BgpRoute *	source_rt,
		const BgpPath *	src_path,
		ExtCommunityPtr	comm
	)

◆ SetDBState()

void MvpnManager::SetDBState	(	MvpnRoute *	route,
		MvpnDBState *	mvpn_dbstate
	)

private

Definition at line 481 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ table() [1/2]

MvpnTable * MvpnManager::table ( )

Definition at line 411 of file bgp_mvpn.cc.

◆ table() [2/2]

const MvpnTable * MvpnManager::table ( ) const

Definition at line 415 of file bgp_mvpn.cc.

◆ Terminate()

void MvpnManager::Terminate ( )

virtual

Definition at line 431 of file bgp_mvpn.cc.

Here is the call graph for this function:

◆ UpdateSecondaryTablesForReplication()

void MvpnManager::UpdateSecondaryTablesForReplication	(	MvpnRoute *	rt,
		BgpTable::TableSet *	secondary_tables
	)		const

virtual

Definition at line 1178 of file bgp_mvpn.cc.

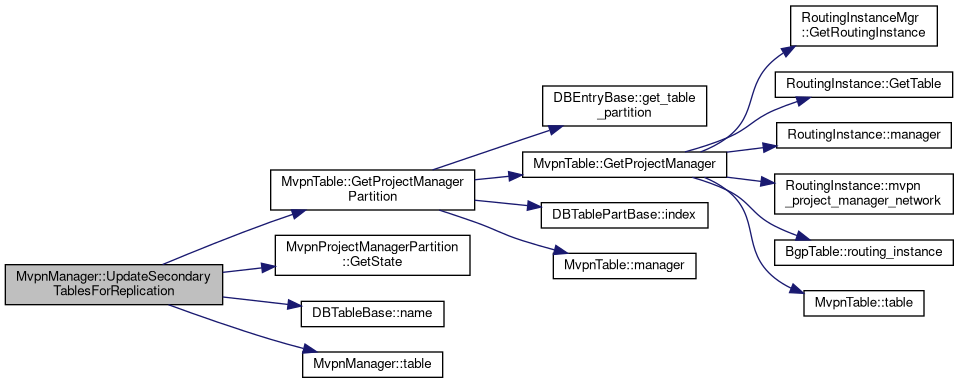

Here is the call graph for this function:

Friends And Related Function Documentation

◆ MvpnManagerPartition

friend class MvpnManagerPartition

friend

Definition at line 189 of file bgp_mvpn.h.

Member Data Documentation

◆ db_states_count_

tbb::atomic<int> MvpnManager::db_states_count_

private

Definition at line 205 of file bgp_mvpn.h.

◆ deleter_

boost::scoped_ptr<DeleteActor> MvpnManager::deleter_

private

Definition at line 211 of file bgp_mvpn.h.

◆ ermvpn_table_

ErmVpnTable* MvpnManager::ermvpn_table_

private

Definition at line 202 of file bgp_mvpn.h.

◆ ermvpn_table_delete_ref_

LifetimeRef<MvpnManager> MvpnManager::ermvpn_table_delete_ref_

private

Definition at line 213 of file bgp_mvpn.h.

◆ identifier_listener_id_

int MvpnManager::identifier_listener_id_

private

Definition at line 204 of file bgp_mvpn.h.

◆ listener_id_

int MvpnManager::listener_id_

private

Definition at line 203 of file bgp_mvpn.h.

◆ neighbors_

NeighborMap MvpnManager::neighbors_

private

Definition at line 208 of file bgp_mvpn.h.

◆ neighbors_mutex_

tbb::reader_writer_lock MvpnManager::neighbors_mutex_

mutableprivate

Definition at line 209 of file bgp_mvpn.h.

◆ partitions_

PartitionList MvpnManager::partitions_

private

Definition at line 206 of file bgp_mvpn.h.

◆ table_

MvpnTable* MvpnManager::table_

private

Definition at line 201 of file bgp_mvpn.h.

◆ table_delete_ref_

LifetimeRef<MvpnManager> MvpnManager::table_delete_ref_

private

Definition at line 212 of file bgp_mvpn.h.

The documentation for this class was generated from the following files:
