OpenSDN source code
Public Member Functions | Private Member Functions | Private Attributes | List of all members
KSyncVxlanRouteEntry Class Referenceabstract

#include <ksync_vxlan_route.h>

Inheritance diagram for KSyncVxlanRouteEntry:
Inheritance graph
[legend]
Collaboration diagram for KSyncVxlanRouteEntry:
Collaboration graph
[legend]

Public Member Functions

 KSyncVxlanRouteEntry (KSyncVxlanRouteObject *obj, const KSyncVxlanRouteEntry *entry)

 KSyncVxlanRouteEntry (KSyncVxlanRouteObject *obj, const AgentRoute *route)

virtual ~KSyncVxlanRouteEntry ()

virtual bool IsLess (const KSyncEntry &rhs) const

virtual bool CompareRoute (const KSyncVxlanRouteEntry &rhs) const =0

KSyncDBObject * GetObject () const

uint32_t vrf_id () const

KSyncVxlanRouteObject * ksync_object () const

- Public Member Functions inherited from KSyncDBEntry
 KSyncDBEntry ()

 KSyncDBEntry (uint32_t index)

virtual ~KSyncDBEntry ()

virtual bool Sync (DBEntry *entry)=0

void SetDBEntry (DBEntry *db_entry)

DBEntry * GetDBEntry ()

- Public Member Functions inherited from KSyncEntry
std::string StateString () const

std::string AckOperationString (KSyncEvent ack_event) const

std::string EventString (KSyncEvent event) const

 KSyncEntry ()

 KSyncEntry (uint32_t index)

virtual ~KSyncEntry ()

void Reset ()

void Reset (uint32_t index)

bool operator< (const KSyncEntry &rhs) const

virtual std::string ToString () const =0

virtual bool Add ()=0

virtual bool Change ()=0

virtual bool Delete ()=0

virtual KSyncEntry * UnresolvedReference ()=0

virtual bool ShouldReEvalBackReference () const

bool IsResolved ()

virtual bool IsDataResolved ()

virtual void Response ()

virtual bool AllowDeleteStateComp ()

virtual void ErrorHandler (int err, uint32_t seqno, KSyncEvent event) const

virtual std::string VrouterError (uint32_t error) const

virtual bool pre_alloc_rx_buffer () const

virtual uint32_t GetTableIndex () const

virtual void StaleTimerExpired ()

size_t GetIndex () const

KSyncState GetState () const

bool del_add_pending () const

uint32_t GetRefCount () const

bool Seen () const

bool stale () const

void SetSeen ()

bool IsDeleted ()

bool IsActive ()

void set_del_add_pending (bool pending)

void RecordTransition (KSyncState from, KSyncState to, KSyncEvent event)

- Public Member Functions inherited from DBState
virtual ~DBState ()


Private Member Functions

 DISALLOW_COPY_AND_ASSIGN (KSyncVxlanRouteEntry)


Private Attributes

uint32_t vrf_id_

KSyncVxlanRouteObject * ksync_obj_


Additional Inherited Members

- Public Types inherited from KSyncDBEntry
typedef std::list< DBEntry * > DupEntryList

- Public Types inherited from KSyncEntry
enum  KSyncState {
  INIT , TEMP , ADD_DEFER , CHANGE_DEFER ,
  IN_SYNC , SYNC_WAIT , NEED_SYNC , DEL_DEFER_SYNC ,
  DEL_DEFER_REF , DEL_DEFER_DEL_ACK , DEL_ACK_WAIT , RENEW_WAIT ,
  FREE_WAIT
}

enum  KSyncEvent {
  ADD_CHANGE_REQ , ADD_ACK , CHANGE_ACK , DEL_REQ ,
  DEL_ADD_REQ , DEL_ACK , RE_EVAL , INT_PTR_REL ,
  INVALID
}

typedef boost::intrusive_ptr< KSyncEntry > KSyncEntryPtr

- Static Public Member Functions inherited from KSyncEntry
static std::string VrouterErrorToString (uint32_t error)

- Static Public Attributes inherited from KSyncEntry
static const size_t kInvalidIndex = 0xFFFFFFFF

static const int kDefaultMsgSize = 512

- Protected Member Functions inherited from KSyncEntry
void SetIndex (size_t index)

void SetState (KSyncState state)


Detailed Description

Definition at line 94 of file ksync_vxlan_route.h.

Constructor & Destructor Documentation

◆ KSyncVxlanRouteEntry() [1/2]

KSyncVxlanRouteEntry::KSyncVxlanRouteEntry ( KSyncVxlanRouteObject *  obj,
const KSyncVxlanRouteEntry *  entry
)

Definition at line 35 of file ksync_vxlan_route.cc.

◆ KSyncVxlanRouteEntry() [2/2]

KSyncVxlanRouteEntry::KSyncVxlanRouteEntry ( KSyncVxlanRouteObject *  obj,
const AgentRoute *  route
)

Definition at line 40 of file ksync_vxlan_route.cc.

◆ ~KSyncVxlanRouteEntry()

KSyncVxlanRouteEntry::~KSyncVxlanRouteEntry ( )
virtual

Definition at line 45 of file ksync_vxlan_route.cc.

Member Function Documentation

◆ CompareRoute()

virtual bool KSyncVxlanRouteEntry::CompareRoute ( const KSyncVxlanRouteEntry &  rhs) const
pure virtual

Implemented in KSyncVxlanFdbEntry.

◆ DISALLOW_COPY_AND_ASSIGN()

KSyncVxlanRouteEntry::DISALLOW_COPY_AND_ASSIGN ( KSyncVxlanRouteEntry  )
private

◆ GetObject()

KSyncDBObject * KSyncVxlanRouteEntry::GetObject ( ) const
virtual

Implements KSyncEntry.

Definition at line 48 of file ksync_vxlan_route.cc.

◆ IsLess()

bool KSyncVxlanRouteEntry::IsLess ( const KSyncEntry &  rhs) const
virtual

Implements KSyncEntry.

Definition at line 52 of file ksync_vxlan_route.cc.

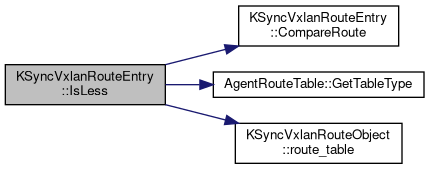

Here is the call graph for this function:

◆ ksync_object()

KSyncVxlanRouteObject* KSyncVxlanRouteEntry::ksync_object ( ) const
inline

Definition at line 106 of file ksync_vxlan_route.h.

◆ vrf_id()

uint32_t KSyncVxlanRouteEntry::vrf_id ( ) const
inline

Definition at line 105 of file ksync_vxlan_route.h.

Member Data Documentation

◆ ksync_obj_

KSyncVxlanRouteObject* KSyncVxlanRouteEntry::ksync_obj_
private

Definition at line 109 of file ksync_vxlan_route.h.

◆ vrf_id_

uint32_t KSyncVxlanRouteEntry::vrf_id_
private

Definition at line 108 of file ksync_vxlan_route.h.

The documentation for this class was generated from the following files:
