#include <service_chaining.h>

Inheritance diagram for ServiceChain< T >:

Collaboration diagram for ServiceChain< T >:

Public Types
typedef T::RouteT	RouteT

typedef T::VpnRouteT	VpnRouteT

typedef T::PrefixT	PrefixT

typedef T::AddressT	AddressT

typedef ServiceChainRequest< T >	ServiceChainRequestT

typedef ServiceChainMgr< T >	ServiceChainMgrT

typedef std::set< BgpRoute * >	RouteList

typedef std::map< PrefixT, RouteList >	PrefixToRouteListMap

typedef std::set< BgpRoute * >	ExtConnectRouteList

typedef std::set< uint32_t >	ConnectedPathIdList

Public Member Functions
	ServiceChain (ServiceChainMgrT manager, ServiceChainGroup group, RoutingInstance src, RoutingInstance dest, RoutingInstance *connected, const std::vector< std::string > &subnets, AddressT addr, bool head, bool retain_as_path)

Address::Family	GetFamily () const

Address::Family	GetConnectedFamily () const

SCAddress::Family	GetSCFamily () const

void	ManagedDelete ()

bool	CompareServiceChainConfig (const ServiceChainConfig &config)

void	RemoveMatchState (BgpRoute route, ServiceChainState state)

void	SetConnectedRoute (BgpRoute *connected)

bool	IsConnectedRouteValid () const

const ConnectedPathIdList &	GetConnectedPathIds ()

BgpRoute *	connected_route () const

RoutingInstance *	src_routing_instance () const

RoutingInstance *	connected_routing_instance () const

RoutingInstance *	dest_routing_instance () const

const AddressT &	service_chain_addr () const

void	UpdateServiceChainRoute (PrefixT prefix, const RouteT *orig_route, const ConnectedPathIdList &old_path_ids, bool aggregate)

void	DeleteServiceChainRoute (PrefixT prefix, bool aggregate)

bool	AddMoreSpecific (PrefixT aggregate, BgpRoute *more_specific)

bool	DeleteMoreSpecific (PrefixT aggregate, BgpRoute *more_specific)

BgpTable *	src_table () const

BgpTable *	connected_table () const

BgpTable *	dest_table () const

ServiceChainGroup *	group () const

void	clear_group ()

PrefixToRouteListMap *	prefix_to_route_list_map ()

const PrefixToRouteListMap *	prefix_to_route_list_map () const

virtual bool	Match (BgpServer server, BgpTable table, BgpRoute *route, bool deleted)

virtual std::string	ToString () const

void	FillServiceChainInfo (ShowServicechainInfo *info) const

void	set_connected_table_unregistered ()

void	set_dest_table_unregistered ()

bool	dest_table_unregistered () const

bool	connected_table_unregistered () const

bool	unregistered () const

const ExtConnectRouteList &	ext_connecting_routes () const

ExtConnectRouteList *	ext_connecting_routes ()

bool	aggregate_enable () const

bool	is_sc_head () const

bool	retain_as_path () const

void	set_aggregate_enable ()

bool	group_oper_state_up () const

void	set_group_oper_state_up (bool up)

Public Member Functions inherited from ConditionMatch
	ConditionMatch ()

virtual	~ConditionMatch ()

bool	deleted () const

void	IncrementNumMatchstate ()

void	DecrementNumMatchstate ()

uint32_t	num_matchstate () const

Private Member Functions
bool	IsMoreSpecific (BgpRoute route, PrefixT aggregate_match) const

bool	IsAggregate (BgpRoute *route) const

bool	IsConnectedRoute (BgpRoute *route, bool is_conn_table=false) const

bool	IsEvpnType5Route (BgpRoute *route) const

void	GetReplicationFamilyInfo (DBTablePartition &partition, BgpRoute &route, BgpTable *&table, PrefixT prefix, bool create)

void	ProcessServiceChainPath (uint32_t path_id, BgpPath path, BgpAttrPtr attr, BgpRoute &route, DBTablePartition &partition, bool aggregate, BgpTable bgptable)

void	UpdateServiceChainRouteInternal (const RouteT orig_route, const ConnectedPathIdList &old_path_ids, BgpRoute sc_route, DBTablePartition partition, BgpTable bgptable, bool aggregate)

void	DeleteServiceChainRouteInternal (BgpRoute service_chain_route, DBTablePartition partition, BgpTable *bgptable, bool aggregate)

	DISALLOW_COPY_AND_ASSIGN (ServiceChain)

Detailed Description

template<typename T>
class ServiceChain< T >

Definition at line 123 of file service_chaining.h.

Member Typedef Documentation

template<typename T>

typedef T::AddressT ServiceChain< T >::AddressT

Definition at line 128 of file service_chaining.h.

template<typename T>

typedef std::set<uint32_t> ServiceChain< T >::ConnectedPathIdList

Definition at line 142 of file service_chaining.h.

template<typename T>

typedef std::set<BgpRoute *> ServiceChain< T >::ExtConnectRouteList

Definition at line 139 of file service_chaining.h.

template<typename T>

typedef T::PrefixT ServiceChain< T >::PrefixT

Definition at line 127 of file service_chaining.h.

template<typename T>

typedef std::map<PrefixT, RouteList> ServiceChain< T >::PrefixToRouteListMap

Definition at line 136 of file service_chaining.h.

template<typename T>

typedef std::set<BgpRoute *> ServiceChain< T >::RouteList

Definition at line 133 of file service_chaining.h.

template<typename T>

typedef T::RouteT ServiceChain< T >::RouteT

Definition at line 125 of file service_chaining.h.

template<typename T>

typedef ServiceChainMgr<T> ServiceChain< T >::ServiceChainMgrT

Definition at line 130 of file service_chaining.h.

template<typename T>

typedef ServiceChainRequest<T> ServiceChain< T >::ServiceChainRequestT

Definition at line 129 of file service_chaining.h.

template<typename T>

typedef T::VpnRouteT ServiceChain< T >::VpnRouteT

Definition at line 126 of file service_chaining.h.

Constructor & Destructor Documentation

template<typename T>

ServiceChain< T >::ServiceChain	(	ServiceChainMgrT *	manager,
		ServiceChainGroup *	group,
		RoutingInstance *	src,
		RoutingInstance *	dest,
		RoutingInstance *	connected,
		const std::vector< std::string > &	subnets,
		AddressT	addr,
		bool	head,
		bool	retain_as_path
	)

For EVPN, need to construct EVPN prefix from IPv4 or IPv6 subnet. Make sure AF in prefix matches service_chain AF.

Definition at line 265 of file service_chaining.cc.

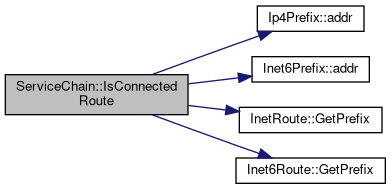

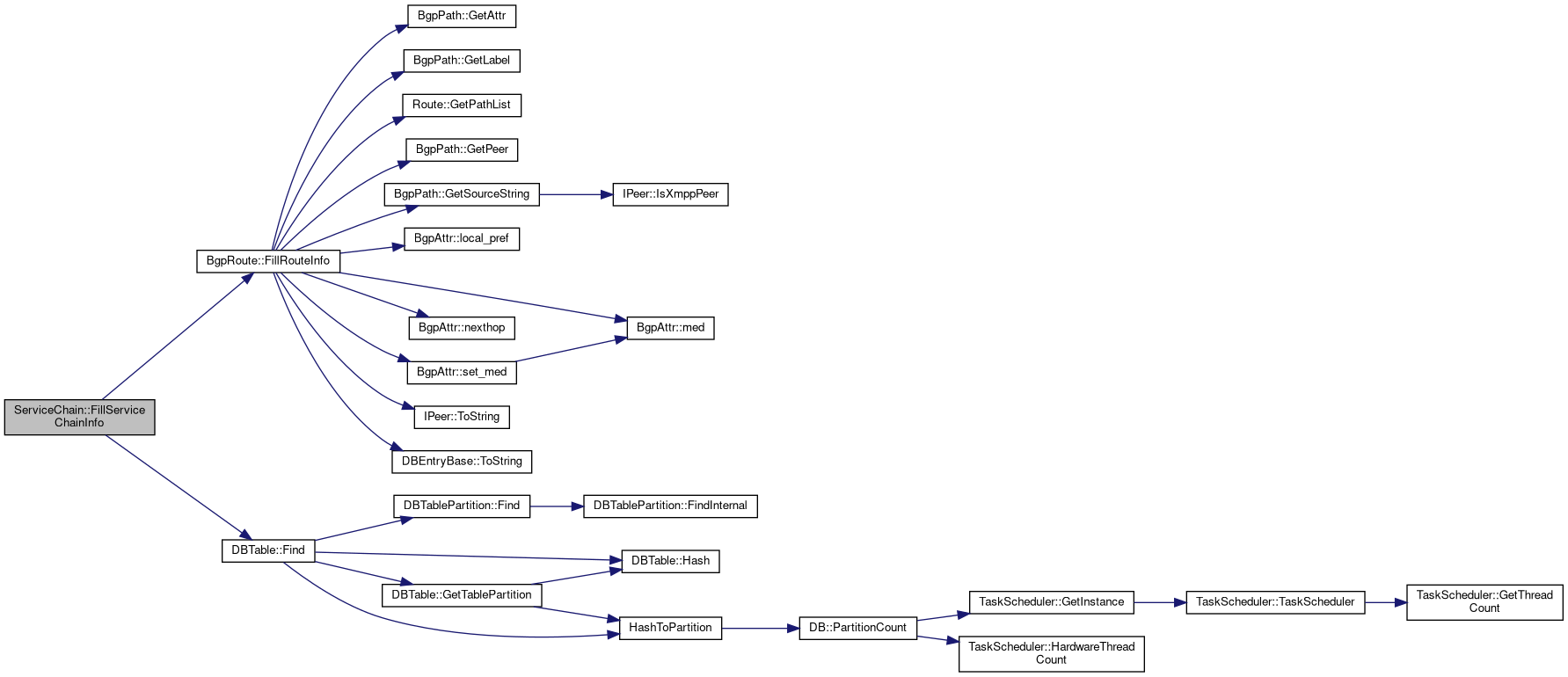

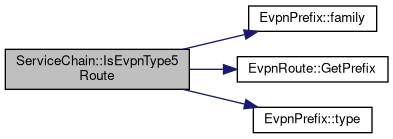

Here is the call graph for this function:

Member Function Documentation

template<typename T >

bool ServiceChain< T >::AddMoreSpecific	(	PrefixT	aggregate,
		BgpRoute *	more_specific
	)

Definition at line 1076 of file service_chaining.cc.

template<typename T>

bool ServiceChain< T >::aggregate_enable ( ) const

inline

Definition at line 221 of file service_chaining.h.

template<typename T>

void ServiceChain< T >::clear_group ( )

inline

Definition at line 183 of file service_chaining.h.

template<typename T >

bool ServiceChain< T >::CompareServiceChainConfig ( const ServiceChainConfig & config )

Definition at line 333 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

BgpRoute* ServiceChain< T >::connected_route ( ) const

inline

Definition at line 166 of file service_chaining.h.

template<typename T>

RoutingInstance* ServiceChain< T >::connected_routing_instance ( ) const

inline

Definition at line 168 of file service_chaining.h.

template<typename T >

BgpTable * ServiceChain< T >::connected_table ( ) const

Definition at line 319 of file service_chaining.cc.

template<typename T>

bool ServiceChain< T >::connected_table_unregistered ( ) const

inline

Definition at line 207 of file service_chaining.h.

template<typename T >

bool ServiceChain< T >::DeleteMoreSpecific	(	PrefixT	aggregate,
		BgpRoute *	more_specific
	)

Definition at line 1091 of file service_chaining.cc.

template<typename T >

void ServiceChain< T >::DeleteServiceChainRoute	(	PrefixT	prefix,
		bool	aggregate
	)

Definition at line 652 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T >

void ServiceChain< T >::DeleteServiceChainRouteInternal	(	BgpRoute *	service_chain_route,
		DBTablePartition *	partition,
		BgpTable *	bgptable,
		bool	aggregate
	)

private

Definition at line 697 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

RoutingInstance* ServiceChain< T >::dest_routing_instance ( ) const

inline

Definition at line 169 of file service_chaining.h.

template<typename T >

BgpTable * ServiceChain< T >::dest_table ( ) const

Definition at line 324 of file service_chaining.cc.

template<typename T>

bool ServiceChain< T >::dest_table_unregistered ( ) const

inline

Definition at line 204 of file service_chaining.h.

template<typename T>

ServiceChain< T >::DISALLOW_COPY_AND_ASSIGN ( ServiceChain< T > )

private

template<typename T>

const ExtConnectRouteList& ServiceChain< T >::ext_connecting_routes ( ) const

inline

Definition at line 214 of file service_chaining.h.

template<typename T>

ExtConnectRouteList* ServiceChain< T >::ext_connecting_routes ( )

inline

Definition at line 217 of file service_chaining.h.

template<typename T >

void ServiceChain< T >::FillServiceChainInfo ( ShowServicechainInfo * info ) const

Definition at line 1101 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

Address::Family ServiceChain< T >::GetConnectedFamily ( ) const

inline

Definition at line 149 of file service_chaining.h.

Here is the call graph for this function:

template<typename T>

const ConnectedPathIdList& ServiceChain< T >::GetConnectedPathIds ( )

inline

Definition at line 162 of file service_chaining.h.

template<typename T>

Address::Family ServiceChain< T >::GetFamily ( ) const

inline

Definition at line 148 of file service_chaining.h.

Here is the call graph for this function:

template<typename T >

void ServiceChain< T >::GetReplicationFamilyInfo	(	DBTablePartition *&	partition,
		BgpRoute *&	route,
		BgpTable *&	table,
		PrefixT	prefix,
		bool	create
	)

private

Replicate prefix received at head-end of service chain to appropriate

table depending on address-family.

Family service-chain address-family Replication Table

EVPN INET InetTable EVPN INET6 Inet6Table INET INET EvpnTable

INET6 INET6 EvpnTable

Parameters

partition	- Reference to DBTablePartition where the service-chain route is to be replicated
route	- Reference to service-chain route
table	- Reference to BgpTable where service-chain route is to be replicated
prefix	- Prefix
create	- when "true" indicates that route should be created if not found and

EVPN prefix received at head end of service-chain. Replicate route to <vrf>.inet[6] table depending on whether the EVPN prefix carries inet[6] traffic.

EVPN route carrying inet prefix

Create case. Create route if not found.

EVPN route carrying inet6 prefix

Create case. Create route if not found.

INET/INET6 prefix at head end of service-chain. Replicate route to <vrf>.evpn.0 table.

Create case. Create route if not found.

Definition at line 86 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

SCAddress::Family ServiceChain< T >::GetSCFamily ( ) const

inline

Definition at line 152 of file service_chaining.h.

Here is the call graph for this function:

template<typename T>

ServiceChainGroup* ServiceChain< T >::group ( ) const

inline

Definition at line 182 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::group_oper_state_up ( ) const

inline

Definition at line 225 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::is_sc_head ( ) const

inline

Definition at line 222 of file service_chaining.h.

template<typename T >

bool ServiceChain< T >::IsAggregate ( BgpRoute * route ) const

private

Definition at line 553 of file service_chaining.cc.

template<typename T >

bool ServiceChain< T >::IsConnectedRoute	(	BgpRoute *	route,
		bool	is_conn_table = `false`
	)		const

private

Check if route belongs to connected table. For EVPN, connected routes could belong to INET or INET6 AF. For routes in the destination table we can use template AF.

Non-EVPN and EVPN destination table case

Definition at line 570 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T >

bool ServiceChain< T >::IsConnectedRouteValid ( ) const

Definition at line 532 of file service_chaining.cc.

template<typename T >

bool ServiceChain< T >::IsEvpnType5Route ( BgpRoute * route ) const

private

Check if EVPN route being re-originated is Type 5 Also make sure that the address-family of the prefix carried in the EVPN route matches the service-chain family. This will avoid the routes from being re-originated twice.

Definition at line 596 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T >

bool ServiceChain< T >::IsMoreSpecific	(	BgpRoute *	route,
		PrefixT *	aggregate_match
	)		const

private

Definition at line 537 of file service_chaining.cc.

template<typename T>

void ServiceChain< T >::ManagedDelete ( )

inline

Definition at line 155 of file service_chaining.h.

template<typename T >

bool ServiceChain< T >::Match	(	BgpServer *	server,
		BgpTable *	table,
		BgpRoute *	route,
		bool	deleted
	)

virtual

Implements ConditionMatch.

Definition at line 372 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

PrefixToRouteListMap* ServiceChain< T >::prefix_to_route_list_map ( )

inline

Definition at line 185 of file service_chaining.h.

template<typename T>

const PrefixToRouteListMap* ServiceChain< T >::prefix_to_route_list_map ( ) const

inline

Definition at line 188 of file service_chaining.h.

template<typename T >

void ServiceChain< T >::ProcessServiceChainPath	(	uint32_t	path_id,
		BgpPath *	path,
		BgpAttrPtr	attr,
		BgpRoute *&	route,
		DBTablePartition *&	partition,
		bool	aggregate,
		BgpTable *	bgptable
	)

private

Process service-chain path and add to service-chain route if needed.

Parameters

path_id	- PathID
path	- Path to be processed
attr	- Path attribute
route	- Reference to Service-Chain route
partition	- Reference to DBTablePartition where the service-chain route is to be replicated
aggregate	- "true" indicates aggregate route
bgptable	- BgpTable the service-chain route belongs to

If inserting into EVPN table, the label should the vxlan_id of the connected RI if non-zero and if not, the VNI.

Check if there is an existing path that can be reused.

Remove existing path, new path will be added below.

No existing path or un-usable existing path Create new path and insert into service-chain route

Definition at line 179 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T >

void ServiceChain< T >::RemoveMatchState	(	BgpRoute *	route,
		ServiceChainState *	state
	)

Definition at line 618 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

bool ServiceChain< T >::retain_as_path ( ) const

inline

Definition at line 223 of file service_chaining.h.

template<typename T>

const AddressT& ServiceChain< T >::service_chain_addr ( ) const

inline

Definition at line 170 of file service_chaining.h.

template<typename T>

void ServiceChain< T >::set_aggregate_enable ( )

inline

Definition at line 224 of file service_chaining.h.

template<typename T>

void ServiceChain< T >::set_connected_table_unregistered ( )

inline

Definition at line 198 of file service_chaining.h.

template<typename T>

void ServiceChain< T >::set_dest_table_unregistered ( )

inline

Definition at line 201 of file service_chaining.h.

template<typename T>

void ServiceChain< T >::set_group_oper_state_up ( bool up )

inline

Definition at line 226 of file service_chaining.h.

template<typename T >

void ServiceChain< T >::SetConnectedRoute ( BgpRoute * connected )

Definition at line 507 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T>

RoutingInstance* ServiceChain< T >::src_routing_instance ( ) const

inline

Definition at line 167 of file service_chaining.h.

template<typename T >

BgpTable * ServiceChain< T >::src_table ( ) const

Definition at line 314 of file service_chaining.cc.

template<typename T >

string ServiceChain< T >::ToString ( ) const

virtual

Implements ConditionMatch.

Definition at line 502 of file service_chaining.cc.

template<typename T>

bool ServiceChain< T >::unregistered ( ) const

inline

Definition at line 210 of file service_chaining.h.

template<typename T >

void ServiceChain< T >::UpdateServiceChainRoute	(	PrefixT	prefix,
		const RouteT *	orig_route,
		const ConnectedPathIdList &	old_path_ids,
		bool	aggregate
	)

Definition at line 746 of file service_chaining.cc.

Here is the call graph for this function:

template<typename T >

void ServiceChain< T >::UpdateServiceChainRouteInternal	(	const RouteT *	orig_route,
		const ConnectedPathIdList &	old_path_ids,
		BgpRoute *	sc_route,
		DBTablePartition *	partition,
		BgpTable *	bgptable,
		bool	aggregate
	)

private

Definition at line 797 of file service_chaining.cc.

Member Data Documentation

template<typename T>

bool ServiceChain< T >::aggregate_

private

Definition at line 242 of file service_chaining.h.

template<typename T>

RoutingInstance* ServiceChain< T >::connected_

private

Definition at line 233 of file service_chaining.h.

template<typename T>

ConnectedPathIdList ServiceChain< T >::connected_path_ids_

private

Definition at line 234 of file service_chaining.h.

template<typename T>

BgpRoute* ServiceChain< T >::connected_route_

private

Definition at line 235 of file service_chaining.h.

template<typename T>

LifetimeRef<ServiceChain> ServiceChain< T >::connected_table_delete_ref_

private

Definition at line 247 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::connected_table_unregistered_

private

Definition at line 240 of file service_chaining.h.

template<typename T>

RoutingInstance* ServiceChain< T >::dest_

private

Definition at line 232 of file service_chaining.h.

template<typename T>

LifetimeRef<ServiceChain> ServiceChain< T >::dest_table_delete_ref_

private

Definition at line 246 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::dest_table_unregistered_

private

Definition at line 241 of file service_chaining.h.

template<typename T>

ExtConnectRouteList ServiceChain< T >::ext_connect_routes_

private

Definition at line 238 of file service_chaining.h.

template<typename T>

ServiceChainGroup* ServiceChain< T >::group_

private

Definition at line 230 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::group_oper_state_up_

private

Definition at line 239 of file service_chaining.h.

template<typename T>

ServiceChainMgrT* ServiceChain< T >::manager_

private

Definition at line 229 of file service_chaining.h.

template<typename T>

PrefixToRouteListMap ServiceChain< T >::prefix_to_routelist_map_

private

Definition at line 237 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::retain_as_path_

private

Definition at line 244 of file service_chaining.h.

template<typename T>

bool ServiceChain< T >::sc_head_

private

Definition at line 243 of file service_chaining.h.

template<typename T>

AddressT ServiceChain< T >::service_chain_addr_

private

Definition at line 236 of file service_chaining.h.

template<typename T>

RoutingInstance* ServiceChain< T >::src_

private

Definition at line 231 of file service_chaining.h.

template<typename T>

LifetimeRef<ServiceChain> ServiceChain< T >::src_table_delete_ref_

private

Definition at line 245 of file service_chaining.h.

The documentation for this class was generated from the following files:

Private Attributes
ServiceChainMgrT *	manager_

ServiceChainGroup *	group_

RoutingInstance *	src_

RoutingInstance *	dest_

RoutingInstance *	connected_

ConnectedPathIdList	connected_path_ids_

BgpRoute *	connected_route_

AddressT	service_chain_addr_

PrefixToRouteListMap	prefix_to_routelist_map_

ExtConnectRouteList	ext_connect_routes_

bool	group_oper_state_up_

bool	connected_table_unregistered_

bool	dest_table_unregistered_

bool	aggregate_

bool	sc_head_

bool	retain_as_path_

LifetimeRef< ServiceChain >	src_table_delete_ref_

LifetimeRef< ServiceChain >	dest_table_delete_ref_

LifetimeRef< ServiceChain >	connected_table_delete_ref_

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

template<typename T> class ServiceChain< T >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

table depending on address-family.

Family service-chain address-family Replication Table

INET6 INET6 EvpnTable

Member Data Documentation

template<typename T>
class ServiceChain< T >
