#include <bgp_xmpp_channel.h>

Collaboration diagram for BgpXmppChannelManager:

Public Types
typedef std::map< const XmppChannel , BgpXmppChannel >	XmppChannelMap

typedef std::map< std::string, BgpXmppChannel * >	XmppChannelNameMap

typedef XmppChannelNameMap::const_iterator	const_name_iterator

typedef boost::function< void(BgpXmppChannel *)>	VisitorFn

Public Member Functions
	BgpXmppChannelManager (XmppServer , BgpServer )

virtual	~BgpXmppChannelManager ()

const_name_iterator	name_cbegin () const

const_name_iterator	name_cend () const

const_name_iterator	name_clower_bound (const std::string &name) const

void	VisitChannels (BgpXmppChannelManager::VisitorFn)

void	VisitChannels (BgpXmppChannelManager::VisitorFn) const

BgpXmppChannel *	FindChannel (const XmppChannel *channel)

BgpXmppChannel *	FindChannel (std::string client)

void	RemoveChannel (XmppChannel *channel)

virtual void	XmppHandleChannelEvent (XmppChannel *channel, xmps::PeerState state)

const XmppChannelMap &	channel_map () const

void	Enqueue (BgpXmppChannel *bx_channel)

bool	IsReadyForDeletion ()

void	SetQueueDisable (bool disabled)

size_t	GetQueueSize () const

void	AdminDownCallback ()

void	ASNUpdateCallback (as_t old_asn, as_t old_local_asn)

void	IdentifierUpdateCallback (Ip4Address old_identifier)

void	RoutingInstanceCallback (std::string vrf_name, int op)

void	DSCPUpdateCallback (uint8_t value)

uint32_t	count () const

uint32_t	NumUpPeer () const

int32_t	deleting_count () const

void	increment_deleting_count ()

void	decrement_deleting_count ()

BgpServer *	bgp_server ()

XmppServer *	xmpp_server ()

const XmppServer *	xmpp_server () const

uint64_t	get_subscription_gen_id ()

bool	CollectStats (BgpRouterState *state, bool first) const

Protected Member Functions
virtual BgpXmppChannel *	CreateChannel (XmppChannel *channel)

virtual bool	DeleteChannel (BgpXmppChannel *channel)

Private Member Functions
void	FillPeerInfo (const BgpXmppChannel *channel) const

	DISALLOW_COPY_AND_ASSIGN (BgpXmppChannelManager)

Private Attributes
XmppServer *	xmpp_server_

BgpServer *	bgp_server_

WorkQueue< BgpXmppChannel * >	queue_

tbb::mutex	mutex_

XmppChannelMap	channel_map_

XmppChannelNameMap	channel_name_map_

int	id_

int	admin_down_listener_id_

int	asn_listener_id_

int	identifier_listener_id_

int	dscp_listener_id_

tbb::atomic< int32_t >	deleting_count_

tbb::atomic< uint64_t >	subscription_gen_id_

Friends
class	BgpXmppChannelManagerMock

class	BgpXmppUnitTest

Detailed Description

Definition at line 384 of file bgp_xmpp_channel.h.

Member Typedef Documentation

typedef XmppChannelNameMap::const_iterator BgpXmppChannelManager::const_name_iterator

Definition at line 388 of file bgp_xmpp_channel.h.

typedef boost::function<void(BgpXmppChannel *)> BgpXmppChannelManager::VisitorFn

Definition at line 389 of file bgp_xmpp_channel.h.

typedef std::map<const XmppChannel *, BgpXmppChannel *> BgpXmppChannelManager::XmppChannelMap

Definition at line 386 of file bgp_xmpp_channel.h.

typedef std::map<std::string, BgpXmppChannel *> BgpXmppChannelManager::XmppChannelNameMap

Definition at line 387 of file bgp_xmpp_channel.h.

Constructor & Destructor Documentation

BgpXmppChannelManager::BgpXmppChannelManager	(	XmppServer *	xmpp_server,
		BgpServer *	server
	)

Definition at line 3016 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

BgpXmppChannelManager::~BgpXmppChannelManager ( )

virtual

Definition at line 3057 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

Member Function Documentation

void BgpXmppChannelManager::AdminDownCallback ( )

Definition at line 3084 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

void BgpXmppChannelManager::ASNUpdateCallback	(	as_t	old_asn,
		as_t	old_local_asn
	)

Definition at line 3092 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

BgpServer* BgpXmppChannelManager::bgp_server ( )

inline

Definition at line 441 of file bgp_xmpp_channel.h.

const XmppChannelMap& BgpXmppChannelManager::channel_map ( ) const

inline

Definition at line 412 of file bgp_xmpp_channel.h.

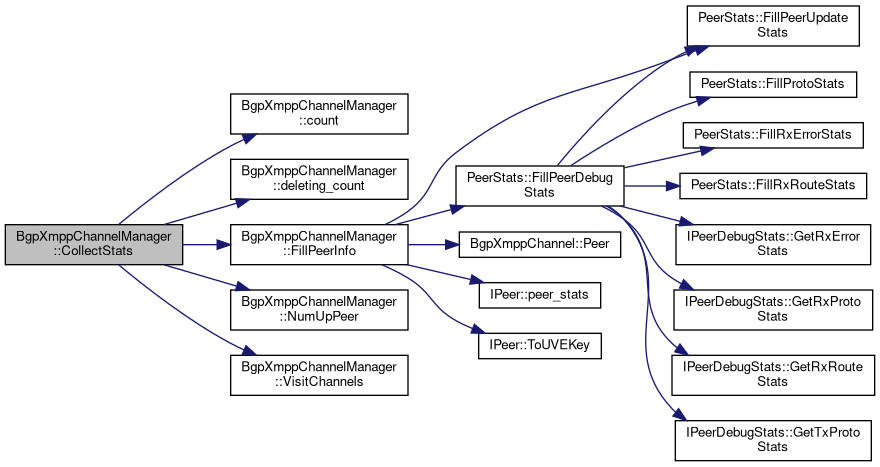

bool BgpXmppChannelManager::CollectStats	(	BgpRouterState *	state,
		bool	first
	)		const

Definition at line 3256 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

uint32_t BgpXmppChannelManager::count ( ) const

inline

Definition at line 425 of file bgp_xmpp_channel.h.

BgpXmppChannel * BgpXmppChannelManager::CreateChannel ( XmppChannel * channel )

protectedvirtual

Definition at line 3156 of file bgp_xmpp_channel.cc.

void BgpXmppChannelManager::decrement_deleting_count ( )

inline

Definition at line 436 of file bgp_xmpp_channel.h.

bool BgpXmppChannelManager::DeleteChannel ( BgpXmppChannel * channel )

protectedvirtual

Definition at line 3007 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

int32_t BgpXmppChannelManager::deleting_count ( ) const

inline

Definition at line 434 of file bgp_xmpp_channel.h.

BgpXmppChannelManager::DISALLOW_COPY_AND_ASSIGN ( BgpXmppChannelManager )

private

void BgpXmppChannelManager::DSCPUpdateCallback ( uint8_t value )

Definition at line 3088 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

void BgpXmppChannelManager::Enqueue ( BgpXmppChannel * bx_channel )

inline

Definition at line 413 of file bgp_xmpp_channel.h.

Here is the call graph for this function:

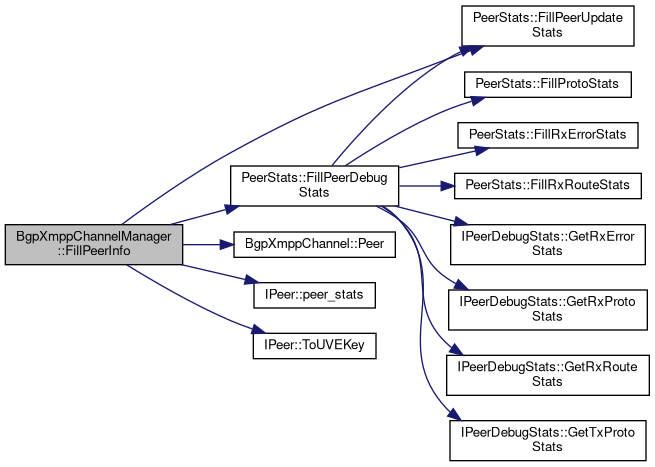

void BgpXmppChannelManager::FillPeerInfo ( const BgpXmppChannel * channel ) const

private

Definition at line 3237 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

BgpXmppChannel * BgpXmppChannelManager::FindChannel ( const XmppChannel * channel )

Definition at line 3140 of file bgp_xmpp_channel.cc.

BgpXmppChannel* BgpXmppChannelManager::FindChannel ( std::string client )

uint64_t BgpXmppChannelManager::get_subscription_gen_id ( )

inline

Definition at line 444 of file bgp_xmpp_channel.h.

size_t BgpXmppChannelManager::GetQueueSize ( ) const

Definition at line 3080 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

void BgpXmppChannelManager::IdentifierUpdateCallback ( Ip4Address old_identifier )

Definition at line 3103 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

void BgpXmppChannelManager::increment_deleting_count ( )

inline

Definition at line 435 of file bgp_xmpp_channel.h.

bool BgpXmppChannelManager::IsReadyForDeletion ( )

Definition at line 3072 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

const_name_iterator BgpXmppChannelManager::name_cbegin ( ) const

inline

Definition at line 394 of file bgp_xmpp_channel.h.

const_name_iterator BgpXmppChannelManager::name_cend ( ) const

inline

Definition at line 397 of file bgp_xmpp_channel.h.

const_name_iterator BgpXmppChannelManager::name_clower_bound ( const std::string & name ) const

inline

Definition at line 400 of file bgp_xmpp_channel.h.

uint32_t BgpXmppChannelManager::NumUpPeer ( ) const

inline

Definition at line 429 of file bgp_xmpp_channel.h.

void BgpXmppChannelManager::RemoveChannel ( XmppChannel * channel )

Definition at line 3148 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

void BgpXmppChannelManager::RoutingInstanceCallback	(	std::string	vrf_name,
		int	op
	)

Definition at line 3109 of file bgp_xmpp_channel.cc.

void BgpXmppChannelManager::SetQueueDisable ( bool disabled )

Definition at line 3076 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

void BgpXmppChannelManager::VisitChannels ( BgpXmppChannelManager::VisitorFn fn )

Definition at line 3116 of file bgp_xmpp_channel.cc.

void BgpXmppChannelManager::VisitChannels ( BgpXmppChannelManager::VisitorFn fn ) const

Definition at line 3123 of file bgp_xmpp_channel.cc.

XmppServer* BgpXmppChannelManager::xmpp_server ( )

inline

Definition at line 442 of file bgp_xmpp_channel.h.

const XmppServer* BgpXmppChannelManager::xmpp_server ( ) const

inline

Definition at line 443 of file bgp_xmpp_channel.h.

void BgpXmppChannelManager::XmppHandleChannelEvent	(	XmppChannel *	channel,
		xmps::PeerState	state
	)

virtual

Definition at line 3163 of file bgp_xmpp_channel.cc.

Here is the call graph for this function:

Friends And Related Function Documentation

friend class BgpXmppChannelManagerMock

friend

Definition at line 454 of file bgp_xmpp_channel.h.

friend class BgpXmppUnitTest

friend

Definition at line 455 of file bgp_xmpp_channel.h.

Member Data Documentation

int BgpXmppChannelManager::admin_down_listener_id_

private

Definition at line 466 of file bgp_xmpp_channel.h.

int BgpXmppChannelManager::asn_listener_id_

private

Definition at line 467 of file bgp_xmpp_channel.h.

BgpServer* BgpXmppChannelManager::bgp_server_

private

Definition at line 460 of file bgp_xmpp_channel.h.

XmppChannelMap BgpXmppChannelManager::channel_map_

private

Definition at line 463 of file bgp_xmpp_channel.h.

XmppChannelNameMap BgpXmppChannelManager::channel_name_map_

private

Definition at line 464 of file bgp_xmpp_channel.h.

tbb::atomic<int32_t> BgpXmppChannelManager::deleting_count_

private

Definition at line 470 of file bgp_xmpp_channel.h.

int BgpXmppChannelManager::dscp_listener_id_

private

Definition at line 469 of file bgp_xmpp_channel.h.

int BgpXmppChannelManager::id_

private

Definition at line 465 of file bgp_xmpp_channel.h.

int BgpXmppChannelManager::identifier_listener_id_

private

Definition at line 468 of file bgp_xmpp_channel.h.

tbb::mutex BgpXmppChannelManager::mutex_

mutableprivate

Definition at line 462 of file bgp_xmpp_channel.h.

WorkQueue<BgpXmppChannel *> BgpXmppChannelManager::queue_

private

Definition at line 461 of file bgp_xmpp_channel.h.

tbb::atomic<uint64_t> BgpXmppChannelManager::subscription_gen_id_

private

Definition at line 472 of file bgp_xmpp_channel.h.

XmppServer* BgpXmppChannelManager::xmpp_server_

private

Definition at line 459 of file bgp_xmpp_channel.h.

The documentation for this class was generated from the following files:
