#include <bgp_as_service.h>

Collaboration diagram for BgpAsAService:

[legend]

Classes
struct	BgpAsAServiceEntry

struct	BgpAsAServiceList

Public Types
typedef boost::function< void(boost::uuids::uuid, uint32_t)>	ServiceDeleteCb

typedef boost::function< void(const boost::uuids::uuid &, uint32_t, const boost::uuids::uuid &, bool)>	HealthCheckCb

typedef std::set< BgpAsAServiceEntry, BgpAsAServiceEntry >	BgpAsAServiceEntryList

typedef BgpAsAServiceEntryList::iterator	BgpAsAServiceEntryListIterator

typedef BgpAsAServiceEntryList::const_iterator	BgpAsAServiceEntryListConstIterator

typedef std::map< boost::uuids::uuid, BgpAsAServiceList * >	BgpAsAServiceEntryMap

typedef BgpAsAServiceEntryMap::iterator	BgpAsAServiceEntryMapIterator

typedef BgpAsAServiceEntryMap::const_iterator	BgpAsAServiceEntryMapConstIterator

typedef std::map< uint32_t, IndexVector< boost::uuids::uuid > * >	BgpAsAServicePortMap

typedef BgpAsAServicePortMap::iterator	BgpAsAServicePortMapIterator

typedef BgpAsAServicePortMap::const_iterator	BgpAsAServicePortMapConstIterator

Public Member Functions
	BgpAsAService (const Agent *agent)

	~BgpAsAService ()

bool	IsBgpService (const VmInterface *vm_intf, const IpAddress &source_ip, const IpAddress &dest_ip) const

bool	GetBgpRouterServiceDestination (const VmInterface vm_intf, const IpAddress &source, const IpAddress &dest, IpAddress nat_server, uint32_t sport, uint32_t dport) const

bool	GetBgpHealthCheck (const VmInterface vm_intf, boost::uuids::uuid health_check_uuid) const

size_t	AllocateBgpVmiServicePortIndex (const uint32_t sport, const boost::uuids::uuid vm_uuid)

void	FreeBgpVmiServicePortIndex (const uint32_t sport)

uint32_t	AddBgpVmiServicePortIndex (const uint32_t source_port, const boost::uuids::uuid vm_uuid)

void	ProcessConfig (const std::string &vrf_name, std::list< IFMapNode * > &bgp_router_node_list, std::list< IFMapNode * > &bgp_as_service_node_list, const boost::uuids::uuid &vmi_uuid)

void	DeleteVmInterface (const boost::uuids::uuid &vmi_uuid)

const BgpAsAService::BgpAsAServiceEntryMap &	bgp_as_a_service_map () const

const BgpAsAService::BgpAsAServicePortMap &	bgp_as_a_service_port_map () const

void	RegisterServiceDeleteCb (ServiceDeleteCb callback)

void	RegisterHealthCheckCb (HealthCheckCb callback)

bool	IsConfigured ()

BGPaaServiceParameters::BGPaaServicePortRangePair	bgp_as_a_service_port_range () const

void	UpdateBgpAsAServiceSessionInfo ()

Static Public Attributes
static const uint32_t	DefaultBgpPort = 179

Private Member Functions
void	StartHealthCheck (const boost::uuids::uuid &vm_uuid, const BgpAsAServiceEntryList &list)

void	BuildBgpAsAServiceInfo (IFMapNode bgp_as_a_service_node, std::list< IFMapNode > &bgp_router_nodes, BgpAsAServiceEntryList &new_list, const std::string &vrf_name, const boost::uuids::uuid &vm_uuid)

	DISALLOW_COPY_AND_ASSIGN (BgpAsAService)

Private Attributes
const Agent *	agent_

BgpAsAServiceEntryMap	bgp_as_a_service_entry_map_

BgpAsAServicePortMap	bgp_as_a_service_port_map_

std::vector< ServiceDeleteCb >	service_delete_cb_list_

std::vector< HealthCheckCb >	health_check_cb_list_

BGPaaServiceParameters	bgp_as_a_service_parameters_

Detailed Description

Definition at line 67 of file bgp_as_service.h.

Member Typedef Documentation

◆ BgpAsAServiceEntryList

typedef std::set<BgpAsAServiceEntry, BgpAsAServiceEntry> BgpAsAService::BgpAsAServiceEntryList

Definition at line 121 of file bgp_as_service.h.

◆ BgpAsAServiceEntryListConstIterator

typedef BgpAsAServiceEntryList::const_iterator BgpAsAService::BgpAsAServiceEntryListConstIterator

Definition at line 123 of file bgp_as_service.h.

◆ BgpAsAServiceEntryListIterator

typedef BgpAsAServiceEntryList::iterator BgpAsAService::BgpAsAServiceEntryListIterator

Definition at line 122 of file bgp_as_service.h.

◆ BgpAsAServiceEntryMap

typedef std::map<boost::uuids::uuid, BgpAsAServiceList*> BgpAsAService::BgpAsAServiceEntryMap

Definition at line 137 of file bgp_as_service.h.

◆ BgpAsAServiceEntryMapConstIterator

typedef BgpAsAServiceEntryMap::const_iterator BgpAsAService::BgpAsAServiceEntryMapConstIterator

Definition at line 139 of file bgp_as_service.h.

◆ BgpAsAServiceEntryMapIterator

typedef BgpAsAServiceEntryMap::iterator BgpAsAService::BgpAsAServiceEntryMapIterator

Definition at line 138 of file bgp_as_service.h.

◆ BgpAsAServicePortMap

typedef std::map<uint32_t, IndexVector<boost::uuids::uuid>* > BgpAsAService::BgpAsAServicePortMap

Definition at line 141 of file bgp_as_service.h.

◆ BgpAsAServicePortMapConstIterator

typedef BgpAsAServicePortMap::const_iterator BgpAsAService::BgpAsAServicePortMapConstIterator

Definition at line 143 of file bgp_as_service.h.

◆ BgpAsAServicePortMapIterator

typedef BgpAsAServicePortMap::iterator BgpAsAService::BgpAsAServicePortMapIterator

Definition at line 142 of file bgp_as_service.h.

◆ HealthCheckCb

typedef boost::function<void(const boost::uuids::uuid &, uint32_t, const boost::uuids::uuid &, bool)> BgpAsAService::HealthCheckCb

Definition at line 72 of file bgp_as_service.h.

◆ ServiceDeleteCb

typedef boost::function<void(boost::uuids::uuid, uint32_t)> BgpAsAService::ServiceDeleteCb

Definition at line 70 of file bgp_as_service.h.

Constructor & Destructor Documentation

◆ BgpAsAService()

BgpAsAService::BgpAsAService ( const Agent * agent )

Definition at line 40 of file bgp_as_service.cc.

◆ ~BgpAsAService()

BgpAsAService::~BgpAsAService ( )

Definition at line 47 of file bgp_as_service.cc.

Member Function Documentation

◆ AddBgpVmiServicePortIndex()

uint32_t BgpAsAService::AddBgpVmiServicePortIndex	(	const uint32_t	source_port,
		const boost::uuids::uuid	vm_uuid
	)

Definition at line 505 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ AllocateBgpVmiServicePortIndex()

size_t BgpAsAService::AllocateBgpVmiServicePortIndex	(	const uint32_t	sport,
		const boost::uuids::uuid	vm_uuid
	)

Definition at line 490 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ bgp_as_a_service_map()

const BgpAsAService::BgpAsAServiceEntryMap & BgpAsAService::bgp_as_a_service_map ( ) const

Definition at line 50 of file bgp_as_service.cc.

◆ bgp_as_a_service_port_map()

const BgpAsAService::BgpAsAServicePortMap & BgpAsAService::bgp_as_a_service_port_map ( ) const

Definition at line 54 of file bgp_as_service.cc.

◆ bgp_as_a_service_port_range()

BGPaaServiceParameters::BGPaaServicePortRangePair BgpAsAService::bgp_as_a_service_port_range ( ) const

inline

Definition at line 185 of file bgp_as_service.h.

◆ BuildBgpAsAServiceInfo()

void BgpAsAService::BuildBgpAsAServiceInfo	(	IFMapNode *	bgp_as_a_service_node,
		std::list< IFMapNode * > &	bgp_router_nodes,
		BgpAsAServiceEntryList &	new_list,
		const std::string &	vrf_name,
		const boost::uuids::uuid &	vm_uuid
	)

private

Definition at line 159 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ DeleteVmInterface()

void BgpAsAService::DeleteVmInterface ( const boost::uuids::uuid & vmi_uuid )

Definition at line 406 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ DISALLOW_COPY_AND_ASSIGN()

BgpAsAService::DISALLOW_COPY_AND_ASSIGN ( BgpAsAService )

private

◆ FreeBgpVmiServicePortIndex()

void BgpAsAService::FreeBgpVmiServicePortIndex ( const uint32_t sport )

Definition at line 466 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ GetBgpHealthCheck()

bool BgpAsAService::GetBgpHealthCheck	(	const VmInterface *	vm_intf,
		boost::uuids::uuid *	health_check_uuid
	)		const

Definition at line 609 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ GetBgpRouterServiceDestination()

bool BgpAsAService::GetBgpRouterServiceDestination	(	const VmInterface *	vm_intf,
		const IpAddress &	source,
		const IpAddress &	dest,
		IpAddress *	nat_server,
		uint32_t *	sport,
		uint32_t *	dport
	)		const

Definition at line 525 of file bgp_as_service.cc.

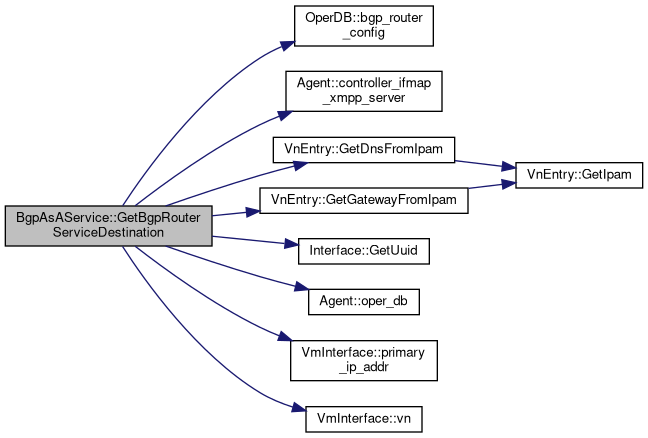

Here is the call graph for this function:

◆ IsBgpService()

bool BgpAsAService::IsBgpService	(	const VmInterface *	vm_intf,
		const IpAddress &	source_ip,
		const IpAddress &	dest_ip
	)		const

Definition at line 434 of file bgp_as_service.cc.

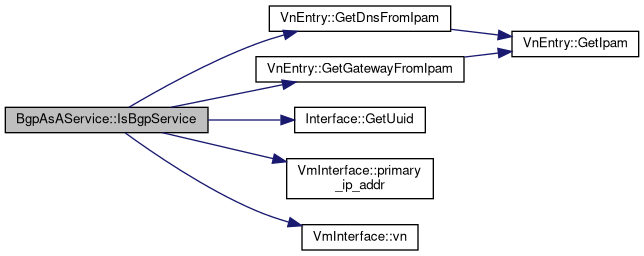

Here is the call graph for this function:

◆ IsConfigured()

bool BgpAsAService::IsConfigured ( )

inline

Definition at line 177 of file bgp_as_service.h.

◆ ProcessConfig()

void BgpAsAService::ProcessConfig	(	const std::string &	vrf_name,
		std::list< IFMapNode * > &	bgp_router_node_list,
		std::list< IFMapNode * > &	bgp_as_service_node_list,
		const boost::uuids::uuid &	vmi_uuid
	)

Definition at line 315 of file bgp_as_service.cc.

Here is the call graph for this function:

◆ RegisterHealthCheckCb()

void BgpAsAService::RegisterHealthCheckCb ( HealthCheckCb callback )

inline

Definition at line 173 of file bgp_as_service.h.

◆ RegisterServiceDeleteCb()

void BgpAsAService::RegisterServiceDeleteCb ( ServiceDeleteCb callback )

inline

Definition at line 170 of file bgp_as_service.h.

◆ StartHealthCheck()

void BgpAsAService::StartHealthCheck	(	const boost::uuids::uuid &	vm_uuid,
		const BgpAsAServiceEntryList &	list
	)

private

Definition at line 112 of file bgp_as_service.cc.

◆ UpdateBgpAsAServiceSessionInfo()

void BgpAsAService::UpdateBgpAsAServiceSessionInfo ( )

Definition at line 635 of file bgp_as_service.cc.

Here is the call graph for this function:

Member Data Documentation

◆ agent_

const Agent* BgpAsAService::agent_

private

Definition at line 200 of file bgp_as_service.h.

◆ bgp_as_a_service_entry_map_

BgpAsAServiceEntryMap BgpAsAService::bgp_as_a_service_entry_map_

private

Definition at line 201 of file bgp_as_service.h.

◆ bgp_as_a_service_parameters_

BGPaaServiceParameters BgpAsAService::bgp_as_a_service_parameters_

private

Definition at line 205 of file bgp_as_service.h.

◆ bgp_as_a_service_port_map_

BgpAsAServicePortMap BgpAsAService::bgp_as_a_service_port_map_

private

Definition at line 202 of file bgp_as_service.h.

◆ DefaultBgpPort

const uint32_t BgpAsAService::DefaultBgpPort = 179

static

Definition at line 69 of file bgp_as_service.h.

◆ health_check_cb_list_

std::vector<HealthCheckCb> BgpAsAService::health_check_cb_list_

private

Definition at line 204 of file bgp_as_service.h.

◆ service_delete_cb_list_

std::vector<ServiceDeleteCb> BgpAsAService::service_delete_cb_list_

private

Definition at line 203 of file bgp_as_service.h.

The documentation for this class was generated from the following files:
