BgpXmppPeerClose Class Reference

#include <bgp_xmpp_peer_close.h>

Inheritance diagram for BgpXmppPeerClose:

Collaboration diagram for BgpXmppPeerClose:

Public Types
typedef std::set< Address::Family >	Families
Public Types inherited from IPeerClose
typedef std::set< Address::Family >	Families

Public Member Functions
	BgpXmppPeerClose (BgpXmppChannel *channel)
virtual	~BgpXmppPeerClose ()
virtual bool	IsReady () const
virtual IPeer *	peer () const
virtual int	GetGracefulRestartTime () const
virtual int	GetLongLivedGracefulRestartTime () const
virtual void	GracefulRestartStale ()
virtual void	LongLivedGracefulRestartStale ()
virtual void	GracefulRestartSweep ()
virtual bool	IsCloseGraceful () const
virtual bool	IsCloseLongLivedGraceful () const
virtual void	GetGracefulRestartFamilies (Families *families) const
virtual void	ReceiveEndOfRIB (Address::Family family)
virtual void	GetLongLivedGracefulRestartFamilies (Families *families) const
virtual void	MembershipRequestCallbackComplete ()
virtual const char *	GetTaskName () const
virtual int	GetTaskInstance () const
virtual void	CustomClose ()
virtual void	CloseComplete ()
virtual void	Delete ()
virtual void	Close (bool graceful)
virtual PeerCloseManager *	GetManager () const
virtual void	UpdateRouteStats (Address::Family family, const BgpPath *old_path, uint32_t path_flags) const
Public Member Functions inherited from IPeerClose
virtual	~IPeerClose ()

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (BgpXmppPeerClose)

Private Attributes
BgpXmppChannel *	channel_

Detailed Description

Definition at line 17 of file bgp_xmpp_peer_close.h.

Member Typedef Documentation

typedef std::set<Address::Family> BgpXmppPeerClose::Families

Definition at line 19 of file bgp_xmpp_peer_close.h.

Constructor & Destructor Documentation

BgpXmppPeerClose::BgpXmppPeerClose ( BgpXmppChannel *  channel )

explicit

Definition at line 21 of file bgp_xmpp_peer_close.cc.

BgpXmppPeerClose::~BgpXmppPeerClose ( )

virtual

Definition at line 25 of file bgp_xmpp_peer_close.cc.

Member Function Documentation

void BgpXmppPeerClose::Close ( bool  graceful )

virtual

Implements IPeerClose.

Definition at line 134 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::CloseComplete ( )

virtual

Implements IPeerClose.

Definition at line 120 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::CustomClose ( )

virtual

Implements IPeerClose.

Definition at line 115 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::Delete ( )

virtual

Implements IPeerClose.

Definition at line 126 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

BgpXmppPeerClose::DISALLOW_COPY_AND_ASSIGN ( BgpXmppPeerClose  )

private

void BgpXmppPeerClose::GetGracefulRestartFamilies ( Families *  families ) const

virtual

Implements IPeerClose.

Definition at line 85 of file bgp_xmpp_peer_close.cc.

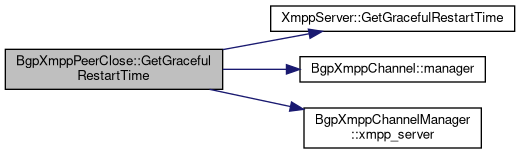

int BgpXmppPeerClose::GetGracefulRestartTime ( ) const

virtual

Implements IPeerClose.

Definition at line 46 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::GetLongLivedGracefulRestartFamilies ( Families *  families ) const

virtual

Implements IPeerClose.

Definition at line 89 of file bgp_xmpp_peer_close.cc.

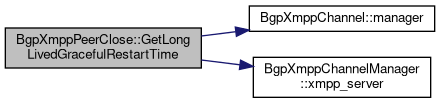

int BgpXmppPeerClose::GetLongLivedGracefulRestartTime ( ) const

virtual

Implements IPeerClose.

Definition at line 50 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

PeerCloseManager * BgpXmppPeerClose::GetManager ( ) const

virtual

Implements IPeerClose.

Definition at line 28 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

int BgpXmppPeerClose::GetTaskInstance ( ) const

virtual

Implements IPeerClose.

Definition at line 111 of file bgp_xmpp_peer_close.cc.

const char * BgpXmppPeerClose::GetTaskName ( ) const

virtual

Implements IPeerClose.

Definition at line 107 of file bgp_xmpp_peer_close.cc.

void BgpXmppPeerClose::GracefulRestartStale ( )

virtual

Implements IPeerClose.

Definition at line 57 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::GracefulRestartSweep ( )

virtual

Implements IPeerClose.

Definition at line 69 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

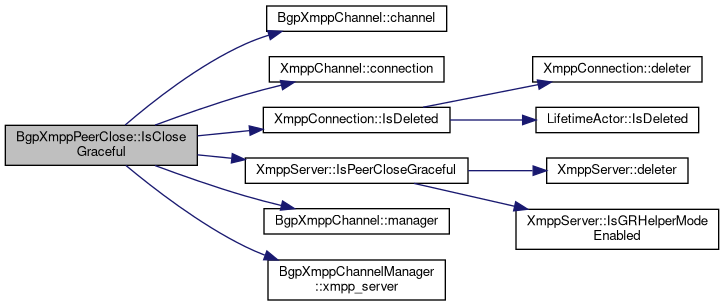

bool BgpXmppPeerClose::IsCloseGraceful ( ) const

virtual

Implements IPeerClose.

Definition at line 73 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

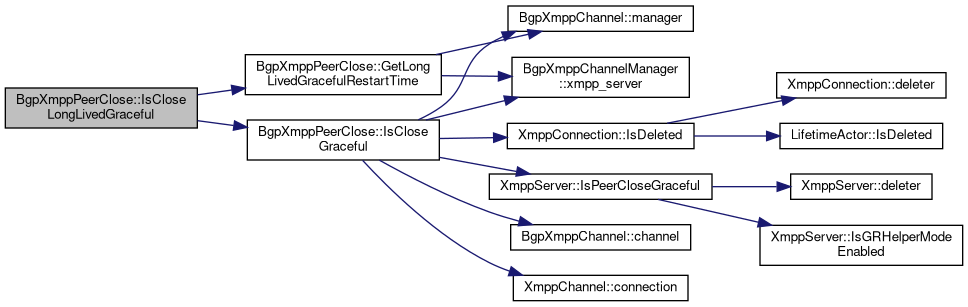

bool BgpXmppPeerClose::IsCloseLongLivedGraceful ( ) const

virtual

Implements IPeerClose.

Definition at line 80 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

bool BgpXmppPeerClose::IsReady ( ) const

virtual

Implements IPeerClose.

Definition at line 38 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::LongLivedGracefulRestartStale ( )

virtual

Implements IPeerClose.

Definition at line 63 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::MembershipRequestCallbackComplete ( )

virtual

Implements IPeerClose.

Definition at line 99 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

IPeer * BgpXmppPeerClose::peer ( ) const

virtual

Implements IPeerClose.

Definition at line 42 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

void BgpXmppPeerClose::ReceiveEndOfRIB ( Address::Family  family )

virtual

Implements IPeerClose.

Definition at line 93 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

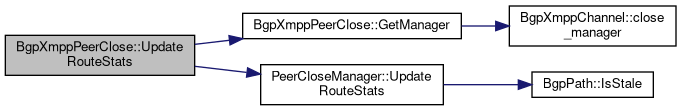

void BgpXmppPeerClose::UpdateRouteStats ( Address::Family  family, const BgpPath *  old_path, uint32_t  path_flags  ) const

virtual

Implements IPeerClose.

Definition at line 32 of file bgp_xmpp_peer_close.cc.

Here is the call graph for this function:

Member Data Documentation

BgpXmppChannel* BgpXmppPeerClose::channel_

private

Definition at line 47 of file bgp_xmpp_peer_close.h.

---

The documentation for this class was generated from the following files:

• bgp_xmpp_peer_close.h
• bgp_xmpp_peer_close.cc
