#include <vrf_assign_ksync.h>

Inheritance diagram for VrfAssignKSyncEntry:

Collaboration diagram for VrfAssignKSyncEntry:

Public Member Functions
	VrfAssignKSyncEntry (VrfAssignKSyncObject obj, const VrfAssignKSyncEntry entry, uint32_t index)

	VrfAssignKSyncEntry (VrfAssignKSyncObject obj, const VrfAssign rule)

virtual	~VrfAssignKSyncEntry ()

uint16_t	vlan_tag () const

InterfaceKSyncEntry *	interface () const

NHKSyncEntry *	nh () const

KSyncDBObject *	GetObject () const

virtual bool	IsLess (const KSyncEntry &rhs) const

virtual std::string	ToString () const

virtual KSyncEntry *	UnresolvedReference ()

virtual bool	Sync (DBEntry *e)

virtual int	AddMsg (char *buf, int buf_len)

virtual int	ChangeMsg (char *buf, int buf_len)

virtual int	DeleteMsg (char *buf, int buf_len)

Public Member Functions inherited from KSyncNetlinkDBEntry
	KSyncNetlinkDBEntry ()

	KSyncNetlinkDBEntry (uint32_t index)

virtual	~KSyncNetlinkDBEntry ()

virtual int	MsgLen ()

bool	Add ()

bool	Change ()

bool	Delete ()

Public Member Functions inherited from KSyncDBEntry
	KSyncDBEntry ()

	KSyncDBEntry (uint32_t index)

virtual	~KSyncDBEntry ()

void	SetDBEntry (DBEntry *db_entry)

DBEntry *	GetDBEntry ()

Public Member Functions inherited from KSyncEntry
std::string	StateString () const

std::string	AckOperationString (KSyncEvent ack_event) const

std::string	EventString (KSyncEvent event) const

	KSyncEntry ()

	KSyncEntry (uint32_t index)

virtual	~KSyncEntry ()

void	Reset ()

void	Reset (uint32_t index)

bool	operator< (const KSyncEntry &rhs) const

virtual bool	ShouldReEvalBackReference () const

bool	IsResolved ()

virtual bool	IsDataResolved ()

virtual void	Response ()

virtual bool	AllowDeleteStateComp ()

virtual void	ErrorHandler (int err, uint32_t seqno, KSyncEvent event) const

virtual std::string	VrouterError (uint32_t error) const

virtual bool	pre_alloc_rx_buffer () const

virtual uint32_t	GetTableIndex () const

virtual void	StaleTimerExpired ()

size_t	GetIndex () const

KSyncState	GetState () const

bool	del_add_pending () const

uint32_t	GetRefCount () const

bool	Seen () const

bool	stale () const

void	SetSeen ()

bool	IsDeleted ()

bool	IsActive ()

void	set_del_add_pending (bool pending)

void	RecordTransition (KSyncState from, KSyncState to, KSyncEvent event)

Public Member Functions inherited from DBState
virtual	~DBState ()

Private Member Functions
int	Encode (sandesh_op::type op, char *buf, int buf_len)

	DISALLOW_COPY_AND_ASSIGN (VrfAssignKSyncEntry)

Private Attributes
VrfAssignKSyncObject *	ksync_obj_

KSyncEntryPtr	interface_

uint16_t	vlan_tag_

uint32_t	vrf_id_

KSyncEntryPtr	nh_

Additional Inherited Members
Public Types inherited from KSyncDBEntry
typedef std::list< DBEntry * >	DupEntryList

Public Types inherited from KSyncEntry
enum	KSyncState { INIT, TEMP, ADD_DEFER, CHANGE_DEFER, IN_SYNC, SYNC_WAIT, NEED_SYNC, DEL_DEFER_SYNC, DEL_DEFER_REF, DEL_DEFER_DEL_ACK, DEL_ACK_WAIT, RENEW_WAIT, FREE_WAIT }

enum	KSyncEvent { ADD_CHANGE_REQ, ADD_ACK, CHANGE_ACK, DEL_REQ, DEL_ADD_REQ, DEL_ACK, RE_EVAL, INT_PTR_REL, INVALID }

typedef boost::intrusive_ptr < KSyncEntry >	KSyncEntryPtr

Static Public Member Functions inherited from KSyncEntry
static std::string	VrouterErrorToString (uint32_t error)

Static Public Attributes inherited from KSyncEntry
static const size_t	kInvalidIndex = 0xFFFFFFFF

static const int	kDefaultMsgSize = 512

Protected Member Functions inherited from KSyncEntry
void	SetIndex (size_t index)

void	SetState (KSyncState state)

Detailed Description

Definition at line 22 of file vrf_assign_ksync.h.

Constructor & Destructor Documentation

VrfAssignKSyncEntry::VrfAssignKSyncEntry	(	VrfAssignKSyncObject *	obj,
		const VrfAssignKSyncEntry *	entry,
		uint32_t	index
	)

Definition at line 26 of file vrf_assign_ksync.cc.

VrfAssignKSyncEntry::VrfAssignKSyncEntry	(	VrfAssignKSyncObject *	obj,
		const VrfAssign *	rule
	)

Definition at line 34 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

VrfAssignKSyncEntry::~VrfAssignKSyncEntry ( )

virtual

Definition at line 57 of file vrf_assign_ksync.cc.

Member Function Documentation

int VrfAssignKSyncEntry::AddMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 154 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

int VrfAssignKSyncEntry::ChangeMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 159 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

int VrfAssignKSyncEntry::DeleteMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 163 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

VrfAssignKSyncEntry::DISALLOW_COPY_AND_ASSIGN ( VrfAssignKSyncEntry )

private

int VrfAssignKSyncEntry::Encode	(	sandesh_op::type	op,
		char *	buf,
		int	buf_len
	)

private

Definition at line 135 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

KSyncDBObject * VrfAssignKSyncEntry::GetObject ( ) const

virtual

Implements KSyncEntry.

Definition at line 60 of file vrf_assign_ksync.cc.

InterfaceKSyncEntry * VrfAssignKSyncEntry::interface ( ) const

Definition at line 127 of file vrf_assign_ksync.cc.

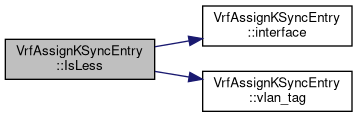

bool VrfAssignKSyncEntry::IsLess ( const KSyncEntry & rhs ) const

virtual

Implements KSyncEntry.

Definition at line 64 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

NHKSyncEntry * VrfAssignKSyncEntry::nh ( ) const

Definition at line 131 of file vrf_assign_ksync.cc.

bool VrfAssignKSyncEntry::Sync ( DBEntry * e )

virtual

Implements KSyncDBEntry.

Definition at line 98 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

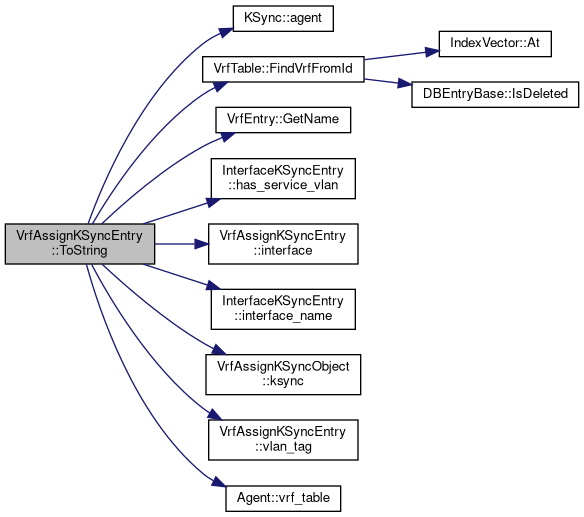

std::string VrfAssignKSyncEntry::ToString ( ) const

virtual

Implements KSyncEntry.

Definition at line 75 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

KSyncEntry * VrfAssignKSyncEntry::UnresolvedReference ( )

virtual

Implements KSyncEntry.

Definition at line 168 of file vrf_assign_ksync.cc.

Here is the call graph for this function:

uint16_t VrfAssignKSyncEntry::vlan_tag ( ) const

inline

Definition at line 29 of file vrf_assign_ksync.h.

Member Data Documentation

KSyncEntryPtr VrfAssignKSyncEntry::interface_

private

Definition at line 44 of file vrf_assign_ksync.h.

VrfAssignKSyncObject* VrfAssignKSyncEntry::ksync_obj_

private

Definition at line 43 of file vrf_assign_ksync.h.

KSyncEntryPtr VrfAssignKSyncEntry::nh_

private

Definition at line 47 of file vrf_assign_ksync.h.

uint16_t VrfAssignKSyncEntry::vlan_tag_

private

Definition at line 45 of file vrf_assign_ksync.h.

uint32_t VrfAssignKSyncEntry::vrf_id_

private

Definition at line 46 of file vrf_assign_ksync.h.

The documentation for this class was generated from the following files:
