McastSGEntry Class Reference

#include <bgp_multicast.h>

Inheritance diagram for McastSGEntry:

Collaboration diagram for McastSGEntry:

Public Member Functions
	McastSGEntry (McastManagerPartition *partition, Ip4Address group, Ip4Address source)
	~McastSGEntry ()
std::string	ToString () const
void	AddForwarder (McastForwarder *forwarder)
void	ChangeForwarder (McastForwarder *forwarder)
void	DeleteForwarder (McastForwarder *forwarder)
const RouteDistinguisher &	GetSourceRd () const
void	AddLocalTreeRoute ()
void	DeleteLocalTreeRoute ()
void	UpdateLocalTreeRoute ()
void	UpdateTree ()
void	NotifyForestNode ()
bool	IsForestNode (McastForwarder *forwarder)
Ip4Address	group () const
Ip4Address	source () const
McastManagerPartition *	partition ()
const ErmVpnRoute *	tree_result_route () const
void	set_tree_result_route (ErmVpnRoute *route)
void	clear_tree_result_route ()
bool	on_work_queue ()
void	set_on_work_queue ()
void	clear_on_work_queue ()
bool	empty () const
ErmVpnRoute *	GetGlobalTreeRootRoute () const
bool	GetForestNodePMSI (uint32_t *label, Ip4Address *address, std::vector< std::string > *encap) const
bool	IsTreeBuilder (uint8_t level) const
Public Member Functions inherited from DBState
virtual	~DBState ()

Private Types
typedef std::set< McastForwarder *, McastForwarderCompare >	ForwarderSet

Private Member Functions
void	UpdateTree (uint8_t level)
void	UpdateRoutes (uint8_t level)
	DISALLOW_COPY_AND_ASSIGN (McastSGEntry)

Private Attributes
McastManagerPartition *	partition_
Ip4Address	group_
Ip4Address	source_
McastForwarder *	forest_node_
ErmVpnRoute *	local_tree_route_
ErmVpnRoute *	tree_result_route_
std::vector< ForwarderSet * >	forwarder_sets_
std::vector< bool >	update_needed_
bool	on_work_queue_

Friends
class	BgpMulticastTest
class	ShowMulticastManagerDetailHandler

Detailed Description

Definition at line 204 of file bgp_multicast.h.

Member Typedef Documentation

ForwarderSet

typedef std::set<McastForwarder *, McastForwarderCompare> McastSGEntry::ForwarderSet

private

Definition at line 247 of file bgp_multicast.h.

Constructor & Destructor Documentation

McastSGEntry()

McastSGEntry::McastSGEntry	(	McastManagerPartition *	partition,
		Ip4Address	group,
		Ip4Address	source
	)

Definition at line 379 of file bgp_multicast.cc.

~McastSGEntry()

McastSGEntry::~McastSGEntry

(

)

Definition at line 399 of file bgp_multicast.cc.

Here is the call graph for this function:

Member Function Documentation

AddForwarder()

void McastSGEntry::AddForwarder

(

McastForwarder *

forwarder

)

Definition at line 414 of file bgp_multicast.cc.

Here is the call graph for this function:

AddLocalTreeRoute()

void McastSGEntry::AddLocalTreeRoute

(

)

Definition at line 473 of file bgp_multicast.cc.

Here is the call graph for this function:

ChangeForwarder()

void McastSGEntry::ChangeForwarder

(

McastForwarder *

forwarder

)

Definition at line 428 of file bgp_multicast.cc.

Here is the call graph for this function:

clear_on_work_queue()

void McastSGEntry::clear_on_work_queue ( )

inline

Definition at line 235 of file bgp_multicast.h.

clear_tree_result_route()

void McastSGEntry::clear_tree_result_route ( )

inline

Definition at line 231 of file bgp_multicast.h.

DeleteForwarder()

void McastSGEntry::DeleteForwarder

(

McastForwarder *

forwarder

)

Definition at line 438 of file bgp_multicast.cc.

Here is the call graph for this function:

DeleteLocalTreeRoute()

void McastSGEntry::DeleteLocalTreeRoute

(

)

Definition at line 545 of file bgp_multicast.cc.

Here is the call graph for this function:

DISALLOW_COPY_AND_ASSIGN()

McastSGEntry::DISALLOW_COPY_AND_ASSIGN ( McastSGEntry  )

private

empty()

bool McastSGEntry::empty

(

)

const

Definition at line 735 of file bgp_multicast.cc.

GetForestNodePMSI()

bool McastSGEntry::GetForestNodePMSI	(	uint32_t *	label,
		Ip4Address *	address,
		std::vector< std::string > *	encap
	)		const

Definition at line 721 of file bgp_multicast.cc.

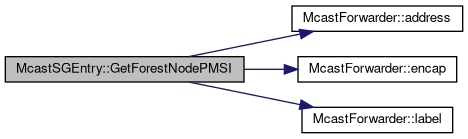

Here is the call graph for this function:

GetGlobalTreeRootRoute()

ErmVpnRoute * McastSGEntry::GetGlobalTreeRootRoute

(

)

const

Definition at line 596 of file bgp_multicast.cc.

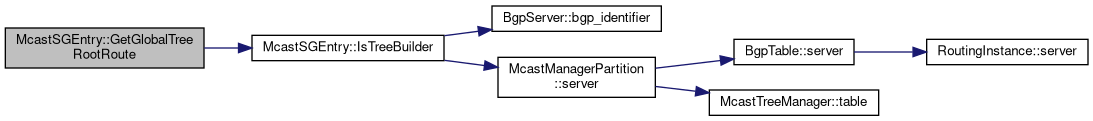

Here is the call graph for this function:

GetSourceRd()

const RouteDistinguisher & McastSGEntry::GetSourceRd

(

)

const

Definition at line 454 of file bgp_multicast.cc.

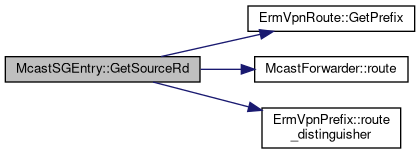

Here is the call graph for this function:

group()

Ip4Address McastSGEntry::group ( ) const

inline

Definition at line 224 of file bgp_multicast.h.

IsForestNode()

bool McastSGEntry::IsForestNode

(

McastForwarder *

forwarder

)

Definition at line 731 of file bgp_multicast.cc.

IsTreeBuilder()

bool McastSGEntry::IsTreeBuilder

(

uint8_t

level

)

const

Definition at line 608 of file bgp_multicast.cc.

Here is the call graph for this function:

NotifyForestNode()

void McastSGEntry::NotifyForestNode

(

)

Definition at line 715 of file bgp_multicast.cc.

Here is the call graph for this function:

on_work_queue()

bool McastSGEntry::on_work_queue ( )

inline

Definition at line 233 of file bgp_multicast.h.

partition()

McastManagerPartition* McastSGEntry::partition ( )

inline

Definition at line 226 of file bgp_multicast.h.

set_on_work_queue()

void McastSGEntry::set_on_work_queue ( )

inline

Definition at line 234 of file bgp_multicast.h.

set_tree_result_route()

void McastSGEntry::set_tree_result_route ( ErmVpnRoute *  route )

inline

Definition at line 228 of file bgp_multicast.h.

source()

Ip4Address McastSGEntry::source ( ) const

inline

Definition at line 225 of file bgp_multicast.h.

ToString()

std::string McastSGEntry::ToString

(

)

const

Definition at line 406 of file bgp_multicast.cc.

tree_result_route()

const ErmVpnRoute* McastSGEntry::tree_result_route ( ) const

inline

Definition at line 227 of file bgp_multicast.h.

UpdateLocalTreeRoute()

void McastSGEntry::UpdateLocalTreeRoute

(

)

Definition at line 564 of file bgp_multicast.cc.

Here is the call graph for this function:

UpdateRoutes()

void McastSGEntry::UpdateRoutes ( uint8_t  level )

private

Definition at line 582 of file bgp_multicast.cc.

Here is the call graph for this function:

UpdateTree() [1/2]

void McastSGEntry::UpdateTree

(

)

Definition at line 703 of file bgp_multicast.cc.

UpdateTree() [2/2]

void McastSGEntry::UpdateTree ( uint8_t  level )

private

Definition at line 634 of file bgp_multicast.cc.

Here is the call graph for this function:

Friends And Related Function Documentation

BgpMulticastTest

friend class BgpMulticastTest

friend

Definition at line 244 of file bgp_multicast.h.

ShowMulticastManagerDetailHandler

friend class ShowMulticastManagerDetailHandler

friend

Definition at line 245 of file bgp_multicast.h.

Member Data Documentation

forest_node_

McastForwarder* McastSGEntry::forest_node_

private

Definition at line 254 of file bgp_multicast.h.

forwarder_sets_

std::vector<ForwarderSet *> McastSGEntry::forwarder_sets_

private

Definition at line 257 of file bgp_multicast.h.

group_

Ip4Address McastSGEntry::group_

private

Definition at line 253 of file bgp_multicast.h.

local_tree_route_

ErmVpnRoute* McastSGEntry::local_tree_route_

private

Definition at line 255 of file bgp_multicast.h.

on_work_queue_

bool McastSGEntry::on_work_queue_

private

Definition at line 259 of file bgp_multicast.h.

partition_

McastManagerPartition* McastSGEntry::partition_

private

Definition at line 252 of file bgp_multicast.h.

source_

Ip4Address McastSGEntry::source_

private

Definition at line 253 of file bgp_multicast.h.

tree_result_route_

ErmVpnRoute* McastSGEntry::tree_result_route_

private

Definition at line 256 of file bgp_multicast.h.

update_needed_

std::vector<bool> McastSGEntry::update_needed_

private

Definition at line 258 of file bgp_multicast.h.

---

The documentation for this class was generated from the following files:

• bgp_multicast.h
• bgp_multicast.cc
