FlowHandler Class Reference

#include <flow_handler.h>

Inheritance diagram for FlowHandler:
Inheritance graph
[legend]
Collaboration diagram for FlowHandler:
Collaboration graph
[legend]

Public Member Functions

 FlowHandler (Agent *agent, boost::shared_ptr< PktInfo > info, boost::asio::io_context &io, FlowProto *proto, uint16_t index)

virtual ~FlowHandler ()

bool Run ()

bool IsL3ModeFlow () const

- Public Member Functions inherited from ProtoHandler
 ProtoHandler (Agent *agent, boost::shared_ptr< PktInfo > info, boost::asio::io_context &io)

virtual ~ProtoHandler ()

void Send (uint32_t itf, uint32_t vrf, uint16_t, PktHandler::PktModuleName)

void Send (uint32_t itf, uint32_t vrf, uint16_t cmd, uint32_t param1, uint32_t param2, PktHandler::PktModuleName mod)

int EthHdr (const MacAddress &src, const MacAddress &dest, const uint16_t proto)

int EthHdr (char *buff, uint16_t len, const MacAddress &src, const MacAddress &dest, const uint16_t proto, uint16_t vlan_id)

int EthHdr (char *buff, uint16_t len, const Interface *interface, const MacAddress &src, const MacAddress &dest, const uint16_t proto)

int EthHdr (char *buff, uint16_t len, uint32_t ifindex, const MacAddress &src, const MacAddress &dest, const uint16_t proto)

void VlanHdr (uint8_t *ptr, uint16_t tci)

void IpHdr (uint16_t len, in_addr_t src, in_addr_t dest, uint8_t protocol, uint16_t id, uint8_t ttl)

uint16_t IpHdr (char *buff, uint16_t buf_len, uint16_t len, in_addr_t src, in_addr_t dest, uint8_t protocol, uint16_t id, uint8_t ttl)

void Ip6Hdr (ip6_hdr *ip, uint16_t plen, uint8_t next_header, uint8_t hlim, uint8_t *src, uint8_t *dest)

void UdpHdr (uint16_t len, in_addr_t src, uint16_t src_port, in_addr_t dest, uint16_t dest_port)

void UdpHdr (udphdr *hdr, uint16_t len, const uint8_t *src, uint16_t src_port, const uint8_t *dest, uint16_t dest_port, uint8_t next_hdr)

void UdpHdr (uint16_t len, const uint8_t *src, uint16_t src_port, const uint8_t *dest, uint16_t dest_port, uint8_t next_hdr)

uint16_t UdpHdr (udphdr *udp, uint16_t buf_len, uint16_t len, in_addr_t src, uint16_t src_port, in_addr_t dest, uint16_t dest_port)

uint16_t IcmpHdr (char *buff, uint16_t buf_len, uint8_t type, uint8_t code, uint16_t word1, uint16_t word2)

void IcmpChecksum (char *buff, uint16_t buf_len)

void IgmpChecksum (char *buff, uint16_t buf_len)

uint32_t Sum (uint16_t *, std::size_t, uint32_t) const

uint16_t Csum (uint16_t *, std::size_t, uint32_t) const

uint16_t UdpCsum (in_addr_t, in_addr_t, std::size_t, udphdr *) const

uint16_t Ipv6Csum (const uint8_t *src, const uint8_t *dest, uint16_t plen, uint8_t next_hdr, uint16_t *hdr) const

uint16_t Icmpv6Csum (const uint8_t *src, const uint8_t *dest, icmp6_hdr *icmp, uint16_t plen) const

Agent * agent () const

uint32_t GetVrfIndex () const

uint32_t GetInterfaceIndex () const

uint16_t GetLength () const

uint32_t GetCmdParam () const

PktInfo * pkt_info () const

uint32_t EncapHeaderLen () const


Static Public Member Functions

static const std::string UnknownVn ()

static const VnListType UnknownVnList ()

static const std::string LinkLocalVn ()


Private Attributes

FlowProto * flow_proto_

uint16_t flow_table_index_


Additional Inherited Members

- Protected Attributes inherited from ProtoHandler
Agent * agent_

boost::shared_ptr< PktInfo > pkt_info_

boost::asio::io_context & io_


Detailed Description

Definition at line 15 of file flow_handler.h.

Constructor & Destructor Documentation

FlowHandler::FlowHandler ( Agent *  agent,
boost::shared_ptr< PktInfo >  info,
boost::asio::io_context &  io,
FlowProto *  proto,
uint16_t  index
)
inline

Definition at line 17 of file flow_handler.h.

virtual FlowHandler::~FlowHandler ( )
inlinevirtual

Definition at line 22 of file flow_handler.h.

Member Function Documentation

bool FlowHandler::IsL3ModeFlow ( ) const

Definition at line 29 of file flow_handler.cc.

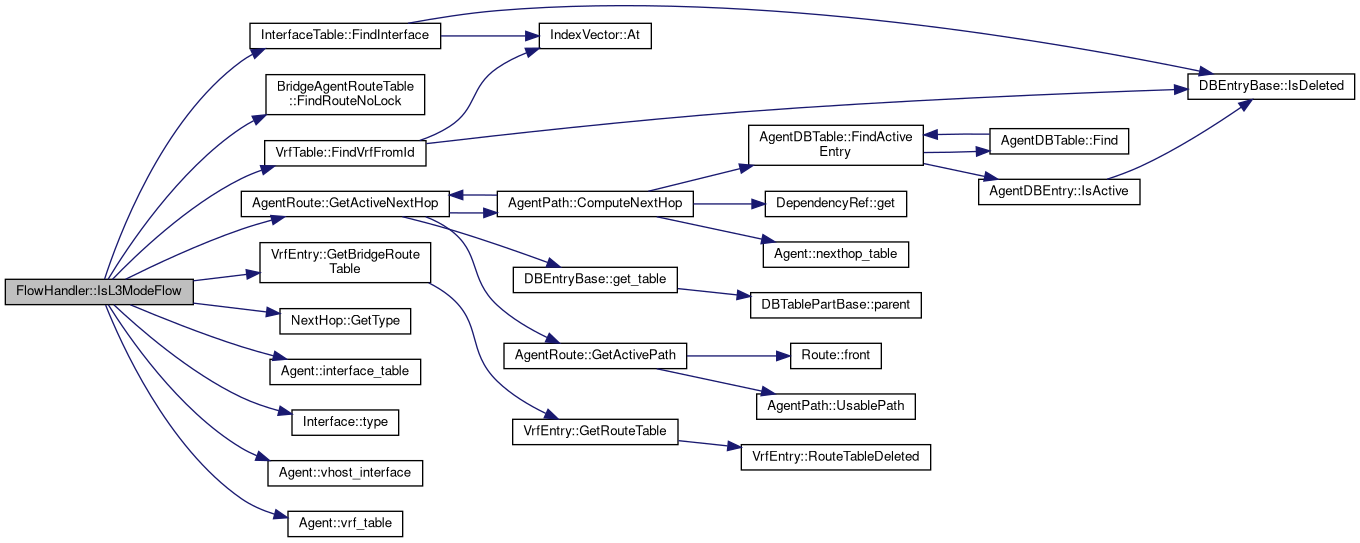

Here is the call graph for this function:

static const std::string FlowHandler::LinkLocalVn ( )
inlinestatic

Definition at line 32 of file flow_handler.h.

Here is the call graph for this function:

bool FlowHandler::Run ( void  )
virtual

Implements ProtoHandler.

Definition at line 77 of file flow_handler.cc.

Here is the call graph for this function:

static const std::string FlowHandler::UnknownVn ( )
inlinestatic

Definition at line 26 of file flow_handler.h.

static const VnListType FlowHandler::UnknownVnList ( )
inlinestatic

Definition at line 27 of file flow_handler.h.

Member Data Documentation

FlowProto* FlowHandler::flow_proto_
private

Definition at line 38 of file flow_handler.h.

uint16_t FlowHandler::flow_table_index_
private

Definition at line 39 of file flow_handler.h.

The documentation for this class was generated from the following files:
