HealthCheckInstanceBase Class Reference

#include <health_check.h>

Inheritance diagram for HealthCheckInstanceBase:

Collaboration diagram for HealthCheckInstanceBase:

Public Member Functions
	HealthCheckInstanceBase (HealthCheckService *service, MetaDataIpAllocator *allocator, VmInterface *intf, bool ignore_status_event)
virtual	~HealthCheckInstanceBase ()
virtual bool	CreateInstanceTask ()=0
virtual bool	DestroyInstanceTask ()=0
virtual bool	RunInstanceTask ()=0
virtual bool	StopInstanceTask ()=0
virtual bool	UpdateInstanceTask ()
void	OnRead (const std::string &data)
void	OnExit (const boost::system::error_code &ec)
void	SetService (HealthCheckService *service)
void	StopTask (HealthCheckService *service)
virtual void	ResyncTarget (const HealthCheckService *service) const
void	set_service (HealthCheckService *service)
std::string	to_string ()
bool	active ()
virtual bool	IsRunning () const
HealthCheckService *	service () const
InterfaceRef	interface () const
MetaDataIp *	ip () const
const std::string &	last_update_time () const
bool	IsStatusEventIgnored () const
void	set_source_ip (const IpAddress &ip)
IpAddress	get_source_ip () const
IpAddress	source_ip () const
IpAddress	update_source_ip ()
void	set_destination_ip (const IpAddress &ip)
IpAddress	destination_ip () const
void	EnqueueHealthCheckResync (const HealthCheckService *service, const VmInterface *itf) const

Protected Member Functions
void	EnqueueResync (const HealthCheckService *service, Interface *itf) const

Protected Attributes
HealthCheckServiceRef	service_
InterfaceRef	intf_
boost::scoped_ptr< MetaDataIp >	ip_
bool	active_
std::string	last_update_time_
bool	deleted_
bool	ignore_status_event_
IpAddress	source_ip_
IpAddress	destination_ip_

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (HealthCheckInstanceBase)

Friends
class	HealthCheckTable

Detailed Description

Definition at line 113 of file health_check.h.

Constructor & Destructor Documentation

HealthCheckInstanceBase::HealthCheckInstanceBase	(	HealthCheckService *	service,
		MetaDataIpAllocator *	allocator,
		VmInterface *	intf,
		bool	ignore_status_event
	)

Definition at line 41 of file health_check.cc.

Here is the call graph for this function:

HealthCheckInstanceBase::~HealthCheckInstanceBase ( )

virtual

Definition at line 60 of file health_check.cc.

Here is the call graph for this function:

Member Function Documentation

bool HealthCheckInstanceBase::active ( )

inline

Definition at line 144 of file health_check.h.

virtual bool HealthCheckInstanceBase::CreateInstanceTask ( )

pure virtual

Implemented in HealthCheckInstanceService, and HealthCheckInstanceTask.

IpAddress HealthCheckInstanceBase::destination_ip

(

)

const

Definition at line 152 of file health_check.cc.

virtual bool HealthCheckInstanceBase::DestroyInstanceTask ( )

pure virtual

Implemented in HealthCheckInstanceService, and HealthCheckInstanceTask.

HealthCheckInstanceBase::DISALLOW_COPY_AND_ASSIGN ( HealthCheckInstanceBase  )

private

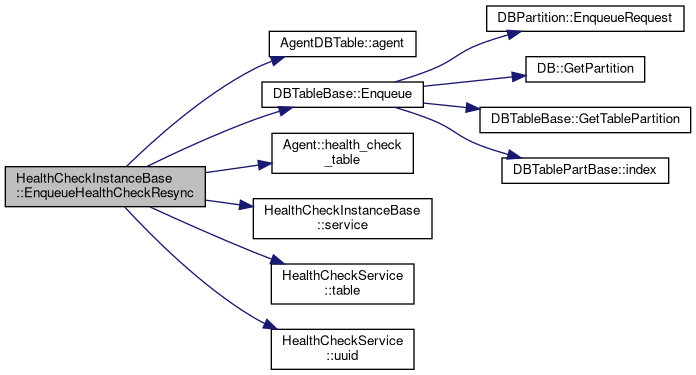

void HealthCheckInstanceBase::EnqueueHealthCheckResync	(	const HealthCheckService *	service,
		const VmInterface *	itf
	)		const

Definition at line 739 of file health_check.cc.

Here is the call graph for this function:

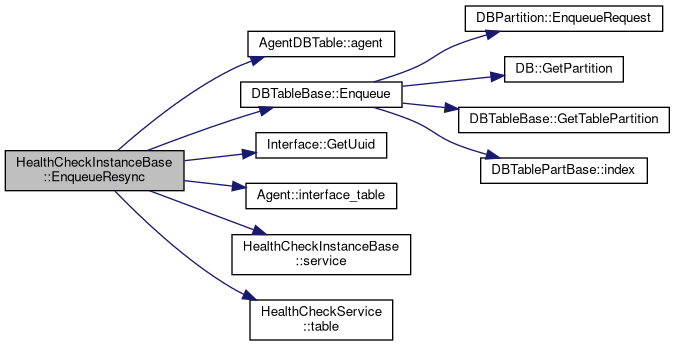

void HealthCheckInstanceBase::EnqueueResync ( const HealthCheckService *  service, Interface *  itf  ) const

protected

Definition at line 68 of file health_check.cc.

Here is the call graph for this function:

IpAddress HealthCheckInstanceBase::get_source_ip ( ) const

inline

Definition at line 152 of file health_check.h.

InterfaceRef HealthCheckInstanceBase::interface ( ) const

inline

Definition at line 147 of file health_check.h.

MetaDataIp* HealthCheckInstanceBase::ip ( ) const

inline

Definition at line 148 of file health_check.h.

virtual bool HealthCheckInstanceBase::IsRunning ( ) const

inlinevirtual

Reimplemented in HealthCheckInstanceTask.

Definition at line 145 of file health_check.h.

bool HealthCheckInstanceBase::IsStatusEventIgnored ( ) const

inline

Definition at line 150 of file health_check.h.

const std::string& HealthCheckInstanceBase::last_update_time ( ) const

inline

Definition at line 149 of file health_check.h.

void HealthCheckInstanceBase::OnExit

(

const boost::system::error_code &

ec

)

Definition at line 115 of file health_check.cc.

void HealthCheckInstanceBase::OnRead

(

const std::string &

data

)

Definition at line 107 of file health_check.cc.

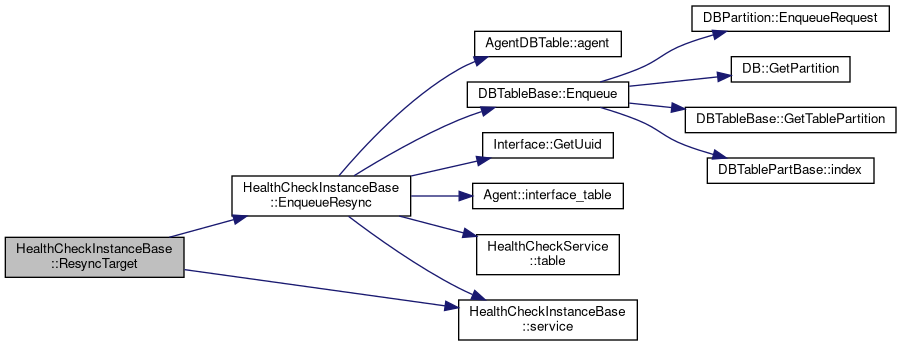

void HealthCheckInstanceBase::ResyncTarget ( const HealthCheckService *  service ) const

virtual

Reimplemented in HealthCheckMacIpInstanceService, and HealthCheckInstanceService.

Definition at line 77 of file health_check.cc.

Here is the call graph for this function:

virtual bool HealthCheckInstanceBase::RunInstanceTask ( )

pure virtual

Implemented in HealthCheckInstanceService, and HealthCheckInstanceTask.

HealthCheckService* HealthCheckInstanceBase::service ( ) const

inline

Definition at line 146 of file health_check.h.

void HealthCheckInstanceBase::set_destination_ip

(

const IpAddress &

ip

)

Definition at line 158 of file health_check.cc.

Here is the call graph for this function:

void HealthCheckInstanceBase::set_service

(

HealthCheckService *

service

)

Definition at line 82 of file health_check.cc.

Here is the call graph for this function:

void HealthCheckInstanceBase::set_source_ip ( const IpAddress &  ip )

inline

Definition at line 151 of file health_check.h.

Here is the call graph for this function:

void HealthCheckInstanceBase::SetService

(

HealthCheckService *

service

)

Definition at line 122 of file health_check.cc.

Here is the call graph for this function:

IpAddress HealthCheckInstanceBase::source_ip

(

)

const

Definition at line 146 of file health_check.cc.

virtual bool HealthCheckInstanceBase::StopInstanceTask ( )

pure virtual

Implemented in HealthCheckInstanceService, and HealthCheckInstanceTask.

void HealthCheckInstanceBase::StopTask

(

HealthCheckService *

service

)

Definition at line 129 of file health_check.cc.

Here is the call graph for this function:

std::string HealthCheckInstanceBase::to_string

(

)

Definition at line 100 of file health_check.cc.

IpAddress HealthCheckInstanceBase::update_source_ip

(

)

Definition at line 136 of file health_check.cc.

Here is the call graph for this function:

virtual bool HealthCheckInstanceBase::UpdateInstanceTask ( )

inlinevirtual

Reimplemented in HealthCheckInstanceService.

Definition at line 130 of file health_check.h.

Friends And Related Function Documentation

friend class HealthCheckTable

friend

Definition at line 162 of file health_check.h.

Member Data Documentation

bool HealthCheckInstanceBase::active_

protected

Definition at line 171 of file health_check.h.

bool HealthCheckInstanceBase::deleted_

protected

Definition at line 175 of file health_check.h.

IpAddress HealthCheckInstanceBase::destination_ip_

protected

Definition at line 182 of file health_check.h.

bool HealthCheckInstanceBase::ignore_status_event_

protected

Definition at line 177 of file health_check.h.

InterfaceRef HealthCheckInstanceBase::intf_

protected

Definition at line 167 of file health_check.h.

boost::scoped_ptr<MetaDataIp> HealthCheckInstanceBase::ip_

protected

Definition at line 169 of file health_check.h.

std::string HealthCheckInstanceBase::last_update_time_

protected

Definition at line 173 of file health_check.h.

HealthCheckServiceRef HealthCheckInstanceBase::service_

protected

Definition at line 165 of file health_check.h.

IpAddress HealthCheckInstanceBase::source_ip_

protected

Definition at line 180 of file health_check.h.

---

The documentation for this class was generated from the following files:

• health_check.h
• health_check.cc
