#include <mpls_ksync.h>

Inheritance diagram for MplsKSyncEntry:

Collaboration diagram for MplsKSyncEntry:

Public Member Functions
	MplsKSyncEntry (MplsKSyncObject obj, const MplsKSyncEntry entry, uint32_t index)

	MplsKSyncEntry (MplsKSyncObject obj, const MplsLabel label)

virtual	~MplsKSyncEntry ()

NHKSyncEntry *	nh () const

KSyncDBObject *	GetObject () const

virtual bool	IsLess (const KSyncEntry &rhs) const

virtual std::string	ToString () const

virtual KSyncEntry *	UnresolvedReference ()

virtual bool	Sync (DBEntry *e)

virtual int	AddMsg (char *buf, int buf_len)

virtual int	ChangeMsg (char *buf, int buf_len)

virtual int	DeleteMsg (char *buf, int buf_len)

void	FillObjectLog (sandesh_op::type op, KSyncMplsInfo &info) const

Public Member Functions inherited from KSyncNetlinkDBEntry
	KSyncNetlinkDBEntry ()

	KSyncNetlinkDBEntry (uint32_t index)

virtual	~KSyncNetlinkDBEntry ()

virtual int	MsgLen ()

bool	Add ()

bool	Change ()

bool	Delete ()

Public Member Functions inherited from KSyncDBEntry
	KSyncDBEntry ()

	KSyncDBEntry (uint32_t index)

virtual	~KSyncDBEntry ()

void	SetDBEntry (DBEntry *db_entry)

DBEntry *	GetDBEntry ()

Public Member Functions inherited from KSyncEntry
std::string	StateString () const

std::string	AckOperationString (KSyncEvent ack_event) const

std::string	EventString (KSyncEvent event) const

	KSyncEntry ()

	KSyncEntry (uint32_t index)

virtual	~KSyncEntry ()

void	Reset ()

void	Reset (uint32_t index)

bool	operator< (const KSyncEntry &rhs) const

virtual bool	ShouldReEvalBackReference () const

bool	IsResolved ()

virtual bool	IsDataResolved ()

virtual void	Response ()

virtual bool	AllowDeleteStateComp ()

virtual void	ErrorHandler (int err, uint32_t seqno, KSyncEvent event) const

virtual std::string	VrouterError (uint32_t error) const

virtual bool	pre_alloc_rx_buffer () const

virtual uint32_t	GetTableIndex () const

virtual void	StaleTimerExpired ()

size_t	GetIndex () const

KSyncState	GetState () const

bool	del_add_pending () const

uint32_t	GetRefCount () const

bool	Seen () const

bool	stale () const

void	SetSeen ()

bool	IsDeleted ()

bool	IsActive ()

void	set_del_add_pending (bool pending)

void	RecordTransition (KSyncState from, KSyncState to, KSyncEvent event)

Public Member Functions inherited from DBState
virtual	~DBState ()

Private Member Functions
int	Encode (sandesh_op::type op, char *buf, int buf_len)

	DISALLOW_COPY_AND_ASSIGN (MplsKSyncEntry)

Private Attributes
MplsKSyncObject *	ksync_obj_

uint32_t	label_

KSyncEntryPtr	nh_

Additional Inherited Members
Public Types inherited from KSyncDBEntry
typedef std::list< DBEntry * >	DupEntryList

Public Types inherited from KSyncEntry
enum	KSyncState { INIT, TEMP, ADD_DEFER, CHANGE_DEFER, IN_SYNC, SYNC_WAIT, NEED_SYNC, DEL_DEFER_SYNC, DEL_DEFER_REF, DEL_DEFER_DEL_ACK, DEL_ACK_WAIT, RENEW_WAIT, FREE_WAIT }

enum	KSyncEvent { ADD_CHANGE_REQ, ADD_ACK, CHANGE_ACK, DEL_REQ, DEL_ADD_REQ, DEL_ACK, RE_EVAL, INT_PTR_REL, INVALID }

typedef boost::intrusive_ptr < KSyncEntry >	KSyncEntryPtr

Static Public Member Functions inherited from KSyncEntry
static std::string	VrouterErrorToString (uint32_t error)

Static Public Attributes inherited from KSyncEntry
static const size_t	kInvalidIndex = 0xFFFFFFFF

static const int	kDefaultMsgSize = 512

Protected Member Functions inherited from KSyncEntry
void	SetIndex (size_t index)

void	SetState (KSyncState state)

Detailed Description

Definition at line 19 of file mpls_ksync.h.

Constructor & Destructor Documentation

MplsKSyncEntry::MplsKSyncEntry	(	MplsKSyncObject *	obj,
		const MplsKSyncEntry *	entry,
		uint32_t	index
	)

Definition at line 15 of file mpls_ksync.cc.

MplsKSyncEntry::MplsKSyncEntry	(	MplsKSyncObject *	obj,
		const MplsLabel *	label
	)

Definition at line 21 of file mpls_ksync.cc.

MplsKSyncEntry::~MplsKSyncEntry ( )

virtual

Definition at line 26 of file mpls_ksync.cc.

Member Function Documentation

int MplsKSyncEntry::AddMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 99 of file mpls_ksync.cc.

Here is the call graph for this function:

int MplsKSyncEntry::ChangeMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 107 of file mpls_ksync.cc.

Here is the call graph for this function:

int MplsKSyncEntry::DeleteMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 115 of file mpls_ksync.cc.

Here is the call graph for this function:

MplsKSyncEntry::DISALLOW_COPY_AND_ASSIGN ( MplsKSyncEntry )

private

int MplsKSyncEntry::Encode	(	sandesh_op::type	op,
		char *	buf,
		int	buf_len
	)

private

Definition at line 71 of file mpls_ksync.cc.

Here is the call graph for this function:

void MplsKSyncEntry::FillObjectLog	(	sandesh_op::type	op,
		KSyncMplsInfo &	info
	)		const

Definition at line 87 of file mpls_ksync.cc.

Here is the call graph for this function:

KSyncDBObject * MplsKSyncEntry::GetObject ( ) const

virtual

Implements KSyncEntry.

Definition at line 29 of file mpls_ksync.cc.

bool MplsKSyncEntry::IsLess ( const KSyncEntry & rhs ) const

virtual

Implements KSyncEntry.

Definition at line 33 of file mpls_ksync.cc.

NHKSyncEntry* MplsKSyncEntry::nh ( ) const

inline

Definition at line 26 of file mpls_ksync.h.

bool MplsKSyncEntry::Sync ( DBEntry * e )

virtual

Implements KSyncDBEntry.

Definition at line 51 of file mpls_ksync.cc.

Here is the call graph for this function:

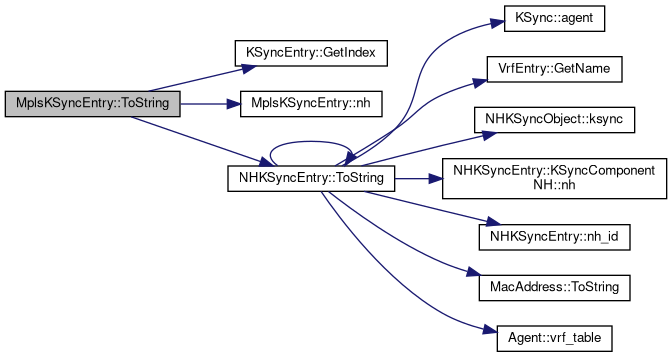

std::string MplsKSyncEntry::ToString ( ) const

virtual

Implements KSyncEntry.

Definition at line 38 of file mpls_ksync.cc.

Here is the call graph for this function:

KSyncEntry * MplsKSyncEntry::UnresolvedReference ( )

virtual

Implements KSyncEntry.

Definition at line 123 of file mpls_ksync.cc.

Here is the call graph for this function:

Member Data Documentation

MplsKSyncObject* MplsKSyncEntry::ksync_obj_

private

Definition at line 41 of file mpls_ksync.h.

uint32_t MplsKSyncEntry::label_

private

Definition at line 42 of file mpls_ksync.h.

KSyncEntryPtr MplsKSyncEntry::nh_

private

Definition at line 43 of file mpls_ksync.h.

The documentation for this class was generated from the following files:
