UpdateCommunity Class Reference

#include <routing_policy_action.h>

Inheritance diagram for UpdateCommunity:

Collaboration diagram for UpdateCommunity:

Public Types
enum	CommunityUpdateOp { ADD, REMOVE, SET }
typedef std::vector< uint32_t >	CommunityList

Public Member Functions
	UpdateCommunity (const std::vector< std::string > communities, std::string op)
virtual	~UpdateCommunity ()
virtual void	operator() (BgpAttr *out_attr) const
std::string	ToString () const
virtual bool	IsEqual (const RoutingPolicyAction &community) const
const CommunityList &	communities () const
Public Member Functions inherited from RoutingPolicyUpdateAction
virtual	~RoutingPolicyUpdateAction ()
bool	terminal () const
bool	accept () const
Public Member Functions inherited from RoutingPolicyAction
virtual	~RoutingPolicyAction ()
virtual bool	operator== (const RoutingPolicyAction &action) const
virtual bool	operator!= (const RoutingPolicyAction &action) const

Private Attributes
CommunityList	communities_
CommunityUpdateOp	op_

Detailed Description

Definition at line 96 of file routing_policy_action.h.

Member Typedef Documentation

typedef std::vector<uint32_t> UpdateCommunity::CommunityList

Definition at line 98 of file routing_policy_action.h.

Member Enumeration Documentation

enum UpdateCommunity::CommunityUpdateOp

Enumerator
ADD
REMOVE
SET

Definition at line 99 of file routing_policy_action.h.

Constructor & Destructor Documentation

UpdateCommunity::UpdateCommunity	(	const std::vector< std::string >	communities,
		std::string	op
	)

Definition at line 75 of file routing_policy_action.cc.

Here is the call graph for this function:

virtual UpdateCommunity::~UpdateCommunity ( )

inlinevirtual

Definition at line 105 of file routing_policy_action.h.

Member Function Documentation

const CommunityList& UpdateCommunity::communities ( ) const

inline

Definition at line 109 of file routing_policy_action.h.

bool UpdateCommunity::IsEqual ( const RoutingPolicyAction &  community ) const

virtual

Implements RoutingPolicyAction.

Definition at line 127 of file routing_policy_action.cc.

Here is the call graph for this function:

void UpdateCommunity::operator() ( BgpAttr *  out_attr ) const

virtual

Implements RoutingPolicyUpdateAction.

Definition at line 95 of file routing_policy_action.cc.

Here is the call graph for this function:

string UpdateCommunity::ToString ( ) const

virtual

Implements RoutingPolicyAction.

Definition at line 112 of file routing_policy_action.cc.

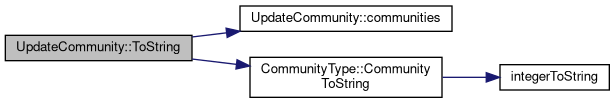

Here is the call graph for this function:

Member Data Documentation

CommunityList UpdateCommunity::communities_

private

Definition at line 114 of file routing_policy_action.h.

CommunityUpdateOp UpdateCommunity::op_

private

Definition at line 115 of file routing_policy_action.h.

---

The documentation for this class was generated from the following files:

• routing_policy_action.h
• routing_policy_action.cc
