#include <mirror_ksync.h>

Inheritance diagram for MirrorKSyncEntry:

[legend]

Collaboration diagram for MirrorKSyncEntry:

[legend]

Public Member Functions
	MirrorKSyncEntry (MirrorKSyncObject obj, const MirrorEntry )

	MirrorKSyncEntry (MirrorKSyncObject obj, const MirrorKSyncEntry entry, uint32_t index)

	MirrorKSyncEntry (MirrorKSyncObject *obj, const uint32_t vrf_id, IpAddress dip, uint16_t dport)

	MirrorKSyncEntry (MirrorKSyncObject *obj, std::string &analyzer_name)

virtual	~MirrorKSyncEntry ()

NHKSyncEntry *	nh () const

KSyncDBObject *	GetObject () const

virtual bool	IsLess (const KSyncEntry &rhs) const

virtual std::string	ToString () const

virtual KSyncEntry *	UnresolvedReference ()

virtual bool	Sync (DBEntry *e)

virtual int	AddMsg (char *buf, int buf_len)

virtual int	ChangeMsg (char *buf, int buf_len)

virtual int	DeleteMsg (char *buf, int buf_len)

uint32_t	mirror_index ()

Public Member Functions inherited from KSyncNetlinkDBEntry
	KSyncNetlinkDBEntry ()

	KSyncNetlinkDBEntry (uint32_t index)

virtual	~KSyncNetlinkDBEntry ()

virtual int	MsgLen ()

bool	Add ()

bool	Change ()

bool	Delete ()

Public Member Functions inherited from KSyncDBEntry
	KSyncDBEntry ()

	KSyncDBEntry (uint32_t index)

virtual	~KSyncDBEntry ()

void	SetDBEntry (DBEntry *db_entry)

DBEntry *	GetDBEntry ()

Public Member Functions inherited from KSyncEntry
std::string	StateString () const

std::string	AckOperationString (KSyncEvent ack_event) const

std::string	EventString (KSyncEvent event) const

	KSyncEntry ()

	KSyncEntry (uint32_t index)

virtual	~KSyncEntry ()

void	Reset ()

void	Reset (uint32_t index)

bool	operator< (const KSyncEntry &rhs) const

virtual bool	ShouldReEvalBackReference () const

bool	IsResolved ()

bool	IsInSync () const

bool	IsResolvedAndInSync ()
	True only when the entry is resolved AND kernel-acknowledged (IN_SYNC). More...

virtual bool	IsDataResolved ()

virtual void	Response ()

virtual bool	AllowDeleteStateComp ()

virtual void	ErrorHandler (int err, uint32_t seqno, KSyncEvent event) const

virtual std::string	VrouterError (uint32_t error) const

virtual bool	pre_alloc_rx_buffer () const

virtual uint32_t	GetTableIndex () const

virtual void	StaleTimerExpired ()

size_t	GetIndex () const

KSyncState	GetState () const

bool	del_add_pending () const

uint32_t	GetRefCount () const

bool	Seen () const

bool	stale () const

void	SetSeen ()

bool	IsDeleted ()

bool	IsActive ()

void	set_del_add_pending (bool pending)

void	RecordTransition (KSyncState from, KSyncState to, KSyncEvent event)

Public Member Functions inherited from DBState
virtual	~DBState ()

Private Member Functions
int	Encode (sandesh_op::type op, char *buf, int buf_len)

	DISALLOW_COPY_AND_ASSIGN (MirrorKSyncEntry)

Private Attributes
MirrorKSyncObject *	ksync_obj_

uint32_t	vrf_id_

IpAddress	sip_

uint16_t	sport_

IpAddress	dip_

uint16_t	dport_

KSyncEntryPtr	nh_

std::string	analyzer_name_

uint8_t	mirror_flag_

uint32_t	vni_

bool	nic_assisted_mirroring_

uint16_t	nic_assisted_mirroring_vlan_

uint32_t	mirror_index_

Additional Inherited Members
Public Types inherited from KSyncDBEntry
typedef std::list< DBEntry * >	DupEntryList

Public Types inherited from KSyncEntry
enum	KSyncState { INIT , TEMP , ADD_DEFER , CHANGE_DEFER , IN_SYNC , SYNC_WAIT , NEED_SYNC , DEL_DEFER_SYNC , DEL_DEFER_REF , DEL_DEFER_DEL_ACK , DEL_ACK_WAIT , RENEW_WAIT , FREE_WAIT }

enum	KSyncEvent { ADD_CHANGE_REQ , ADD_ACK , CHANGE_ACK , DEL_REQ , DEL_ADD_REQ , DEL_ACK , RE_EVAL , INT_PTR_REL , INVALID }

typedef boost::intrusive_ptr< KSyncEntry >	KSyncEntryPtr

Static Public Member Functions inherited from KSyncEntry
static std::string	VrouterErrorToString (uint32_t error)

Static Public Attributes inherited from KSyncEntry
static const size_t	kInvalidIndex = 0xFFFFFFFF

static const int	kDefaultMsgSize = 512

Protected Member Functions inherited from KSyncEntry
void	SetIndex (size_t index)

void	SetState (KSyncState state)

Detailed Description

Definition at line 19 of file mirror_ksync.h.

Constructor & Destructor Documentation

◆ MirrorKSyncEntry() [1/4]

MirrorKSyncEntry::MirrorKSyncEntry	(	MirrorKSyncObject *	obj,
		const MirrorEntry *	mirror_entry
	)

Definition at line 31 of file mirror_ksync.cc.

◆ MirrorKSyncEntry() [2/4]

MirrorKSyncEntry::MirrorKSyncEntry	(	MirrorKSyncObject *	obj,
		const MirrorKSyncEntry *	entry,
		uint32_t	index
	)

Definition at line 12 of file mirror_ksync.cc.

◆ MirrorKSyncEntry() [3/4]

MirrorKSyncEntry::MirrorKSyncEntry	(	MirrorKSyncObject *	obj,
		const uint32_t	vrf_id,
		IpAddress	dip,
		uint16_t	dport
	)

Definition at line 24 of file mirror_ksync.cc.

◆ MirrorKSyncEntry() [4/4]

MirrorKSyncEntry::MirrorKSyncEntry	(	MirrorKSyncObject *	obj,
		std::string &	analyzer_name
	)

Definition at line 44 of file mirror_ksync.cc.

◆ ~MirrorKSyncEntry()

MirrorKSyncEntry::~MirrorKSyncEntry ( )

virtual

Definition at line 50 of file mirror_ksync.cc.

Member Function Documentation

◆ AddMsg()

int MirrorKSyncEntry::AddMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 153 of file mirror_ksync.cc.

Here is the call graph for this function:

◆ ChangeMsg()

int MirrorKSyncEntry::ChangeMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 158 of file mirror_ksync.cc.

Here is the call graph for this function:

◆ DeleteMsg()

int MirrorKSyncEntry::DeleteMsg	(	char *	buf,
		int	buf_len
	)

virtual

Implements KSyncNetlinkDBEntry.

Definition at line 162 of file mirror_ksync.cc.

Here is the call graph for this function:

◆ DISALLOW_COPY_AND_ASSIGN()

MirrorKSyncEntry::DISALLOW_COPY_AND_ASSIGN ( MirrorKSyncEntry )

private

◆ Encode()

int MirrorKSyncEntry::Encode	(	sandesh_op::type	op,
		char *	buf,
		int	buf_len
	)

private

Definition at line 128 of file mirror_ksync.cc.

Here is the call graph for this function:

◆ GetObject()

KSyncDBObject * MirrorKSyncEntry::GetObject ( ) const

virtual

Implements KSyncEntry.

Definition at line 53 of file mirror_ksync.cc.

◆ IsLess()

bool MirrorKSyncEntry::IsLess ( const KSyncEntry & rhs ) const

virtual

Implements KSyncEntry.

Definition at line 57 of file mirror_ksync.cc.

◆ mirror_index()

uint32_t MirrorKSyncEntry::mirror_index ( )

inline

Definition at line 40 of file mirror_ksync.h.

◆ nh()

NHKSyncEntry* MirrorKSyncEntry::nh ( ) const

inline

Definition at line 29 of file mirror_ksync.h.

◆ Sync()

bool MirrorKSyncEntry::Sync ( DBEntry * e )

virtual

Implements KSyncDBEntry.

Definition at line 74 of file mirror_ksync.cc.

Here is the call graph for this function:

◆ ToString()

std::string MirrorKSyncEntry::ToString ( ) const

virtual

Implements KSyncEntry.

Definition at line 62 of file mirror_ksync.cc.

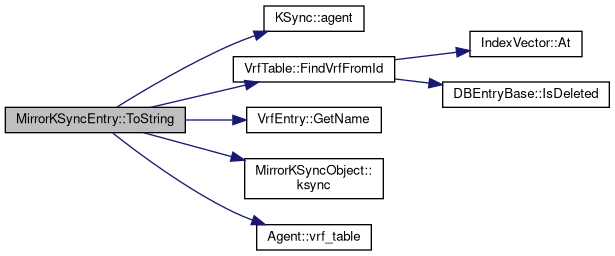

Here is the call graph for this function:

◆ UnresolvedReference()

KSyncEntry * MirrorKSyncEntry::UnresolvedReference ( )

virtual

Implements KSyncEntry.

Definition at line 167 of file mirror_ksync.cc.

Here is the call graph for this function:

Member Data Documentation

◆ analyzer_name_

std::string MirrorKSyncEntry::analyzer_name_

private

Definition at line 50 of file mirror_ksync.h.

◆ dip_

IpAddress MirrorKSyncEntry::dip_

private

Definition at line 47 of file mirror_ksync.h.

◆ dport_

uint16_t MirrorKSyncEntry::dport_

private

Definition at line 48 of file mirror_ksync.h.

◆ ksync_obj_

MirrorKSyncObject* MirrorKSyncEntry::ksync_obj_

private

Definition at line 43 of file mirror_ksync.h.

◆ mirror_flag_

uint8_t MirrorKSyncEntry::mirror_flag_

private

Definition at line 51 of file mirror_ksync.h.

◆ mirror_index_

uint32_t MirrorKSyncEntry::mirror_index_

private

Definition at line 55 of file mirror_ksync.h.

◆ nh_

KSyncEntryPtr MirrorKSyncEntry::nh_

private

Definition at line 49 of file mirror_ksync.h.

◆ nic_assisted_mirroring_

bool MirrorKSyncEntry::nic_assisted_mirroring_

private

Definition at line 53 of file mirror_ksync.h.

◆ nic_assisted_mirroring_vlan_

uint16_t MirrorKSyncEntry::nic_assisted_mirroring_vlan_

private

Definition at line 54 of file mirror_ksync.h.

◆ sip_

IpAddress MirrorKSyncEntry::sip_

private

Definition at line 45 of file mirror_ksync.h.

◆ sport_

uint16_t MirrorKSyncEntry::sport_

private

Definition at line 46 of file mirror_ksync.h.

◆ vni_

uint32_t MirrorKSyncEntry::vni_

private

Definition at line 52 of file mirror_ksync.h.

◆ vrf_id_

uint32_t MirrorKSyncEntry::vrf_id_

private

Definition at line 44 of file mirror_ksync.h.

The documentation for this class was generated from the following files:
