StateMachine Class Reference

#include <state_machine.h>

Inheritance diagram for StateMachine:

Collaboration diagram for StateMachine:

Classes
struct	EventContainer

Public Types
enum	State {   IDLE = 0, ACTIVE = 1, CONNECT = 2, OPENSENT = 3,   OPENCONFIRM = 4, ESTABLISHED = 5 }
typedef boost::function< void(void)>	EventCB

Public Member Functions
	StateMachine (BgpPeer *peer)
virtual	~StateMachine ()
void	Initialize ()
void	Shutdown (int subcode)
void	SetAdminState (bool down, int subcode)
bool	IsQueueEmpty () const
template<typename Ev , int code>
void	OnIdle (const Ev &event)
template<typename Ev >
void	OnIdleCease (const Ev &event)
template<typename Ev , int code>
void	OnIdleError (const Ev &event)
void	OnIdleNotification (const fsm::EvBgpNotification &event)
int	GetConnectTime () const
virtual void	StartConnectTimer (int seconds)
void	CancelConnectTimer ()
bool	ConnectTimerRunning ()
virtual void	StartOpenTimer (int seconds)
void	CancelOpenTimer ()
bool	OpenTimerRunning ()
int	GetConfiguredHoldTime () const
virtual void	StartHoldTimer ()
void	CancelHoldTimer ()
bool	HoldTimerRunning ()
virtual void	StartIdleHoldTimer ()
void	CancelIdleHoldTimer ()
bool	IdleHoldTimerRunning ()
void	StartSession ()
virtual void	DeleteSession (BgpSession *session)
void	AssignSession (bool active)
virtual void	OnSessionEvent (TcpSession *session, TcpSession::Event event)
bool	PassiveOpen (BgpSession *session)
void	OnMessage (BgpSession *session, BgpProto::BgpMessage *msg, size_t msgsize=0)
void	OnMessageError (BgpSession *session, const ParseErrorContext *context)
void	SendNotification (BgpSession *session, int code, int subcode=0, const std::string &data=std::string())
bool	ProcessNotificationEvent (BgpSession *session)
void	SetDataCollectionKey (BgpPeerInfo *peer_info) const
const std::string &	StateName () const
const std::string &	LastStateName () const
BgpPeer *	peer ()
BgpSession *	active_session ()
void	set_active_session (BgpSession *session)
BgpSession *	passive_session ()
void	set_passive_session (BgpSession *session)
int	connect_attempts () const
void	connect_attempts_inc ()
void	connect_attempts_clear ()
int	hold_time () const
void	reset_hold_time ()
void	set_hold_time (int hold_time)
virtual int	keepalive_time_msecs () const
int	idle_hold_time () const
void	reset_idle_hold_time ()
void	set_idle_hold_time (int idle_hold_time)
void	set_state (State state)
State	get_state () const
const std::string	last_state_change_at () const
const uint64_t	last_state_change_usecs_at () const
void	set_last_event (const std::string &event)
const std::string &	last_event () const
void	set_last_notification_in (int code, int subcode, const std::string &reason)
void	set_last_notification_out (int code, int subcode, const std::string &reason)
const std::string	last_notification_out_error () const
const std::string	last_notification_in_error () const
void	reset_last_info ()
void	LogEvent (std::string event_name, std::string msg, SandeshLevel::type log_level=SandeshLevel::SYS_DEBUG)
bool	HoldTimerExpired ()
virtual bool	IsCloseGraceful () const
virtual bool	IsRouterTypeBGPaaS () const
virtual bool	IsPeerCloseInProgress () const

Static Public Attributes
static const int	kOpenTime = 15
static const int	kConnectInterval = 30
static const int	kHoldTime = 90
static const int	kOpenSentHoldTime = 240
static const int	kIdleHoldTime
static const int	kMaxIdleHoldTime = 100 * 1000
static const int	kJitter = 10

Protected Member Functions
virtual void	OnNotificationMessage (BgpSession *session, BgpProto::BgpMessage *msg)
virtual const int	GetIdleHoldTimeMSecs () const

Private Member Functions
bool	ConnectTimerExpired ()
void	FireConnectTimer ()
bool	OpenTimerExpired ()
void	FireOpenTimer ()
void	FireHoldTimer ()
bool	IdleHoldTimerExpired ()
void	FireIdleHoldTimer ()
void	TimerErrorHanlder (std::string name, std::string error)
void	DeleteAllTimers ()
void	BGPPeerInfoSend (const BgpPeerInfoData &peer_info)
template<typename Ev >
bool	Enqueue (const Ev &event)
bool	DequeueEvent (EventContainer ec)
void	DequeueEventDone (bool done)
void	UpdateFlapCount ()
void	PeerClose (int code, int subcode)
	DISALLOW_COPY_AND_ASSIGN (StateMachine)

Private Attributes
WorkQueue< EventContainer >	work_queue_
BgpPeer *	peer_
BgpSession *	active_session_
BgpSession *	passive_session_
Timer *	connect_timer_
Timer *	open_timer_
Timer *	hold_timer_
Timer *	idle_hold_timer_
int	hold_time_
int	idle_hold_time_
int	attempts_
unsigned int	seed_
bool	deleted_
State	state_
State	last_state_
std::string	last_event_
uint64_t	last_event_at_
uint64_t	last_state_change_at_
std::pair< int, int >	last_notification_in_
std::string	last_notification_in_error_
uint64_t	last_notification_in_at_
std::pair< int, int >	last_notification_out_
std::string	last_notification_out_error_
uint64_t	last_notification_out_at_

Friends
class	StateMachineTest
class	StateMachineUnitTest

Detailed Description

Definition at line 75 of file state_machine.h.

Member Typedef Documentation

typedef boost::function<void(void)> StateMachine::EventCB

Definition at line 77 of file state_machine.h.

Member Enumeration Documentation

enum StateMachine::State

Enumerator
IDLE
ACTIVE
CONNECT
OPENSENT
OPENCONFIRM
ESTABLISHED

Definition at line 87 of file state_machine.h.

Constructor & Destructor Documentation

StateMachine::StateMachine ( BgpPeer *  peer )

explicit

Definition at line 1080 of file state_machine.cc.

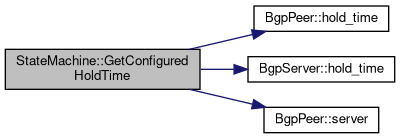

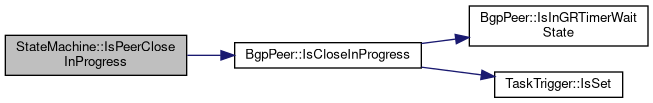

Here is the call graph for this function:

StateMachine::~StateMachine ( )

virtual

Definition at line 1124 of file state_machine.cc.

Here is the call graph for this function:

Member Function Documentation

BgpSession * StateMachine::active_session

(

)

Definition at line 1360 of file state_machine.cc.

void StateMachine::AssignSession

(

bool

active

)

Definition at line 1340 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::BGPPeerInfoSend ( const BgpPeerInfoData &  peer_info )

private

Definition at line 1720 of file state_machine.cc.

void StateMachine::CancelConnectTimer

(

)

Definition at line 1226 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::CancelHoldTimer

(

)

Definition at line 1277 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::CancelIdleHoldTimer

(

)

Definition at line 1259 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::CancelOpenTimer

(

)

Definition at line 1241 of file state_machine.cc.

Here is the call graph for this function:

int StateMachine::connect_attempts ( ) const

inline

Definition at line 152 of file state_machine.h.

void StateMachine::connect_attempts_clear ( )

inline

Definition at line 154 of file state_machine.h.

void StateMachine::connect_attempts_inc ( )

inline

Definition at line 153 of file state_machine.h.

bool StateMachine::ConnectTimerExpired ( )

private

Definition at line 1405 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::ConnectTimerRunning

(

)

Definition at line 1230 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::DeleteAllTimers ( )

private

Definition at line 1113 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::DeleteSession ( BgpSession *  session )

virtual

Definition at line 1327 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::DequeueEvent ( StateMachine::EventContainer  ec )

private

Definition at line 1645 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::DequeueEventDone ( bool  done )

private

Definition at line 1667 of file state_machine.cc.

Here is the call graph for this function:

StateMachine::DISALLOW_COPY_AND_ASSIGN ( StateMachine  )

private

template<typename Ev >

bool StateMachine::Enqueue ( const Ev &  event )

private

Definition at line 1623 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::FireConnectTimer ( )

private

Definition at line 1287 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::FireHoldTimer ( )

private

Definition at line 1295 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::FireIdleHoldTimer ( )

private

Definition at line 1299 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::FireOpenTimer ( )

private

Definition at line 1291 of file state_machine.cc.

Here is the call graph for this function:

State StateMachine::get_state ( ) const

inline

Definition at line 168 of file state_machine.h.

int StateMachine::GetConfiguredHoldTime

(

)

const

Definition at line 1690 of file state_machine.cc.

Here is the call graph for this function:

int StateMachine::GetConnectTime

(

)

const

Definition at line 1209 of file state_machine.cc.

virtual const int StateMachine::GetIdleHoldTimeMSecs ( ) const

inlineprotectedvirtual

Definition at line 191 of file state_machine.h.

int StateMachine::hold_time ( ) const

inline

Definition at line 156 of file state_machine.h.

bool StateMachine::HoldTimerExpired

(

)

Definition at line 1415 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::HoldTimerRunning

(

)

Definition at line 1281 of file state_machine.cc.

Here is the call graph for this function:

int StateMachine::idle_hold_time ( ) const

inline

Definition at line 161 of file state_machine.h.

bool StateMachine::IdleHoldTimerExpired ( )

private

Definition at line 1428 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::IdleHoldTimerRunning

(

)

Definition at line 1263 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::Initialize

(

)

Definition at line 1130 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::IsCloseGraceful ( ) const

virtual

Definition at line 1433 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::IsPeerCloseInProgress ( ) const

virtual

Definition at line 1134 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::IsQueueEmpty

(

)

const

Definition at line 1159 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::IsRouterTypeBGPaaS ( ) const

virtual

Definition at line 1437 of file state_machine.cc.

Here is the call graph for this function:

virtual int StateMachine::keepalive_time_msecs ( ) const

inlinevirtual

Definition at line 159 of file state_machine.h.

const std::string& StateMachine::last_event ( ) const

inline

Definition at line 172 of file state_machine.h.

const std::string StateMachine::last_notification_in_error

(

)

const

Definition at line 1675 of file state_machine.cc.

Here is the call graph for this function:

const std::string StateMachine::last_notification_out_error

(

)

const

Definition at line 1681 of file state_machine.cc.

Here is the call graph for this function:

const std::string StateMachine::last_state_change_at

(

)

const

Definition at line 1586 of file state_machine.cc.

Here is the call graph for this function:

const uint64_t StateMachine::last_state_change_usecs_at

(

)

const

Definition at line 1590 of file state_machine.cc.

const string & StateMachine::LastStateName

(

)

const

Definition at line 1582 of file state_machine.cc.

void StateMachine::LogEvent	(	std::string	event_name,
		std::string	msg,
		SandeshLevel::type	log_level = SandeshLevel::SYS_DEBUG
	)

Definition at line 1634 of file state_machine.cc.

Here is the call graph for this function:

template<typename Ev , int code>

void StateMachine::OnIdle

(

const Ev &

event

)

Definition at line 1179 of file state_machine.cc.

Here is the call graph for this function:

template<typename Ev >

void StateMachine::OnIdleCease

(

const Ev &

event

)

Definition at line 1185 of file state_machine.cc.

Here is the call graph for this function:

template<typename Ev , int code>

void StateMachine::OnIdleError

(

const Ev &

event

)

Definition at line 1196 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::OnIdleNotification

(

const fsm::EvBgpNotification &

event

)

Definition at line 1203 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::OnMessage	(	BgpSession *	session,
		BgpProto::BgpMessage *	msg,
		size_t	msgsize = 0
	)

Definition at line 1490 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::OnMessageError	(	BgpSession *	session,
		const ParseErrorContext *	context
	)

Definition at line 1548 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::OnNotificationMessage ( BgpSession *  session, BgpProto::BgpMessage *  msg  )

protectedvirtual

Definition at line 1478 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::OnSessionEvent ( TcpSession *  session, TcpSession::Event  event  )

virtual

Definition at line 1445 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::OpenTimerExpired ( )

private

Definition at line 1410 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::OpenTimerRunning

(

)

Definition at line 1245 of file state_machine.cc.

Here is the call graph for this function:

BgpSession * StateMachine::passive_session

(

)

Definition at line 1364 of file state_machine.cc.

bool StateMachine::PassiveOpen

(

BgpSession *

session

)

Definition at line 1469 of file state_machine.cc.

Here is the call graph for this function:

BgpPeer* StateMachine::peer ( )

inline

Definition at line 146 of file state_machine.h.

void StateMachine::PeerClose ( int  code, int  subcode  )

private

Definition at line 1170 of file state_machine.cc.

Here is the call graph for this function:

bool StateMachine::ProcessNotificationEvent

(

BgpSession *

session

)

Definition at line 1387 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::reset_hold_time

(

)

Definition at line 1797 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::reset_idle_hold_time ( )

inline

Definition at line 162 of file state_machine.h.

void StateMachine::reset_last_info

(

)

Definition at line 1806 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::SendNotification	(	BgpSession *	session,
		int	code,
		int	subcode = 0,
		const std::string &	data = std::string()
	)

Definition at line 1368 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_active_session

(

BgpSession *

session

)

Definition at line 1350 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_hold_time

(

int

hold_time

)

Definition at line 1788 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_idle_hold_time ( int  idle_hold_time )

inline

Definition at line 163 of file state_machine.h.

Here is the call graph for this function:

void StateMachine::set_last_event

(

const std::string &

event

)

Definition at line 1725 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_last_notification_in	(	int	code,
		int	subcode,
		const std::string &	reason
	)

Definition at line 1758 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_last_notification_out	(	int	code,
		int	subcode,
		const std::string &	reason
	)

Definition at line 1744 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_passive_session

(

BgpSession *

session

)

Definition at line 1355 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::set_state

(

State

state

)

Definition at line 1772 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::SetAdminState	(	bool	down,
		int	subcode
	)

Definition at line 1146 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::SetDataCollectionKey

(

BgpPeerInfo *

peer_info

)

const

Definition at line 1671 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::Shutdown

(

int

subcode

)

Definition at line 1138 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::StartConnectTimer ( int  seconds )

virtual

Definition at line 1214 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::StartHoldTimer ( )

virtual

Definition at line 1267 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::StartIdleHoldTimer ( )

virtual

Definition at line 1249 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::StartOpenTimer ( int  seconds )

virtual

Definition at line 1234 of file state_machine.cc.

Here is the call graph for this function:

void StateMachine::StartSession

(

)

Definition at line 1308 of file state_machine.cc.

Here is the call graph for this function:

const string & StateMachine::StateName

(

)

const

Definition at line 1578 of file state_machine.cc.

void StateMachine::TimerErrorHanlder ( std::string  name, std::string  error  )

inlineprivate

Definition at line 210 of file state_machine.h.

void StateMachine::UpdateFlapCount ( )

private

Definition at line 1163 of file state_machine.cc.

Here is the call graph for this function:

Friends And Related Function Documentation

friend class StateMachineTest

friend

Definition at line 194 of file state_machine.h.

friend class StateMachineUnitTest

friend

Definition at line 195 of file state_machine.h.

Member Data Documentation

BgpSession* StateMachine::active_session_

private

Definition at line 222 of file state_machine.h.

int StateMachine::attempts_

private

Definition at line 230 of file state_machine.h.

Timer* StateMachine::connect_timer_

private

Definition at line 224 of file state_machine.h.

bool StateMachine::deleted_

private

Definition at line 232 of file state_machine.h.

int StateMachine::hold_time_

private

Definition at line 228 of file state_machine.h.

Timer* StateMachine::hold_timer_

private

Definition at line 226 of file state_machine.h.

int StateMachine::idle_hold_time_

private

Definition at line 229 of file state_machine.h.

Timer* StateMachine::idle_hold_timer_

private

Definition at line 227 of file state_machine.h.

const int StateMachine::kConnectInterval = 30

static

Definition at line 80 of file state_machine.h.

const int StateMachine::kHoldTime = 90

static

Definition at line 81 of file state_machine.h.

const int StateMachine::kIdleHoldTime

static

Initial value:

=
    getenv("CONTRAIL_BGP_IDLE_HOLD_TIME_MSECS") ?
        strtol(getenv("CONTRAIL_BGP_IDLE_HOLD_TIME_MSECS"), NULL, 0) : 5000

Definition at line 83 of file state_machine.h.

const int StateMachine::kJitter = 10

static

Definition at line 85 of file state_machine.h.

const int StateMachine::kMaxIdleHoldTime = 100 * 1000

static

Definition at line 84 of file state_machine.h.

const int StateMachine::kOpenSentHoldTime = 240

static

Definition at line 82 of file state_machine.h.

const int StateMachine::kOpenTime = 15

static

Definition at line 79 of file state_machine.h.

std::string StateMachine::last_event_

private

Definition at line 235 of file state_machine.h.

uint64_t StateMachine::last_event_at_

private

Definition at line 236 of file state_machine.h.

std::pair<int, int> StateMachine::last_notification_in_

private

Definition at line 238 of file state_machine.h.

uint64_t StateMachine::last_notification_in_at_

private

Definition at line 240 of file state_machine.h.

std::string StateMachine::last_notification_in_error_

private

Definition at line 239 of file state_machine.h.

std::pair<int, int> StateMachine::last_notification_out_

private

Definition at line 241 of file state_machine.h.

uint64_t StateMachine::last_notification_out_at_

private

Definition at line 243 of file state_machine.h.

std::string StateMachine::last_notification_out_error_

private

Definition at line 242 of file state_machine.h.

State StateMachine::last_state_

private

Definition at line 234 of file state_machine.h.

uint64_t StateMachine::last_state_change_at_

private

Definition at line 237 of file state_machine.h.

Timer* StateMachine::open_timer_

private

Definition at line 225 of file state_machine.h.

BgpSession* StateMachine::passive_session_

private

Definition at line 223 of file state_machine.h.

BgpPeer* StateMachine::peer_

private

Definition at line 221 of file state_machine.h.

unsigned int StateMachine::seed_

private

Definition at line 231 of file state_machine.h.

State StateMachine::state_

private

Definition at line 233 of file state_machine.h.

WorkQueue<EventContainer> StateMachine::work_queue_

private

Definition at line 220 of file state_machine.h.

---

The documentation for this class was generated from the following files:

• state_machine.h
• state_machine.cc
